JACKET SPECIAL BLACK JACKET 20x20mm LED NEON FLEX

SPECIAL BLACK JACKET 20x20mm

SKU Code:WJ-SNF-2020

Size:20x20mm Flat

Bend Direction:Vertical Only

Min Bend:120mm

Material:Silicone

Color:Mono/RGB/Pixel

Voltage:12V, 24V

CRI:90

IP Rating:IP65

IK Rating:IK08

Product Details

Mono

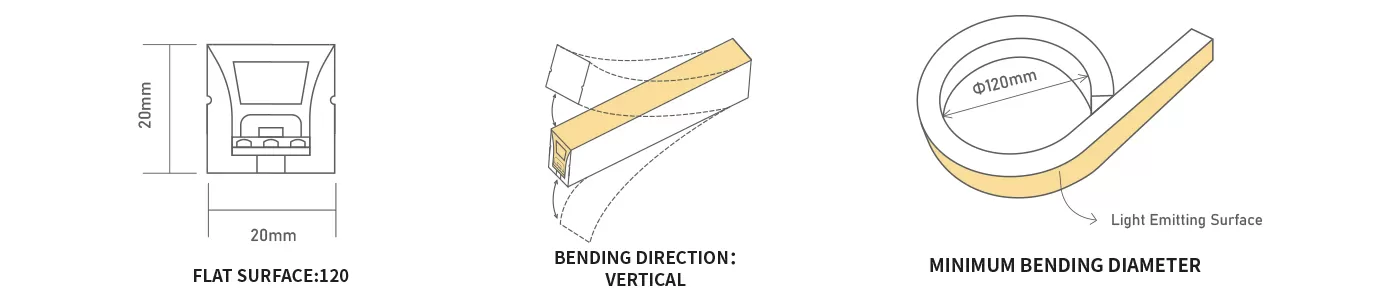

Structural Drawing & Bending Direction

Color	Warm White	Cool White	Red	Green	Blue	Yellow	Orange	Light Pink	Pink（Violet）	Purple
CCT / Wave:	2737K/584.7nm	9145K/471.5nm	1007K/623.3nm	8120K/526.3nm	465.3nm	1901K/588.8nm	1082K/604.9nm	1511K/626.0nm	568nm	450.0nm
LED Quantity:	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m
Unit Cut: 12V	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm
Unit Cut: 24V	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm
Watts/m: 24V	8.34W	8.37 W	7.77 W	8.55 W	8.76 W	8.36 W	8.35 W	8.34 W	8.03 W	8.16 W
Lumen/m: 24V	322.02 lm	305.18 lm	134.81 lm	334.04 lm	46.30 lm	366.57 lm	226.69 lm	294.00 lm	92.24 lm	58.71 lm
Max Loading: 12V/24V	5m	5m	5m	5m	5m	5m	5m	5m	5m	5m

PWM RGB

SKU:WJ-SNF-2020-RGB-24V
Color Temp	Red: 623.5nm	White: 6500K (Color mixing)
	Green: 524.9nm
	Blue: 469.9nm
Watts/m(24V Flat	Red: 5.20 W	White: 17.24 W (Color mixing)
	Green: 5.99 W
	Blue: 6.44 W
Lumen/m(24V Flat)	Red: 88.57 lm	White: 264.03 lm (Color mixing)
	Green: 167.661m
	Blue: 31.73 lm
Unit Cut(24V)	5.56cm
Max Loading(24V)	5m
LED Quantity(m)	108 LEDs

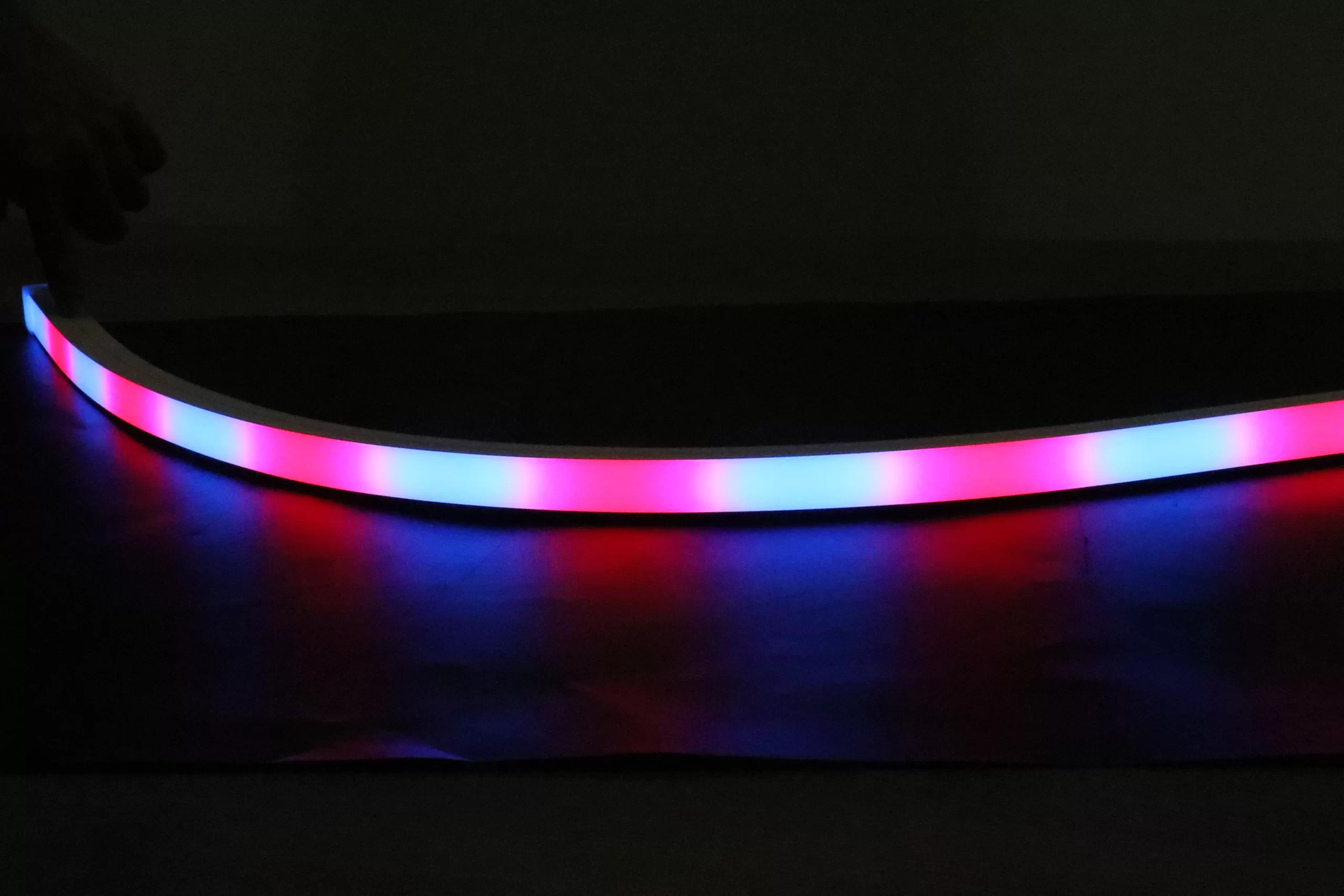

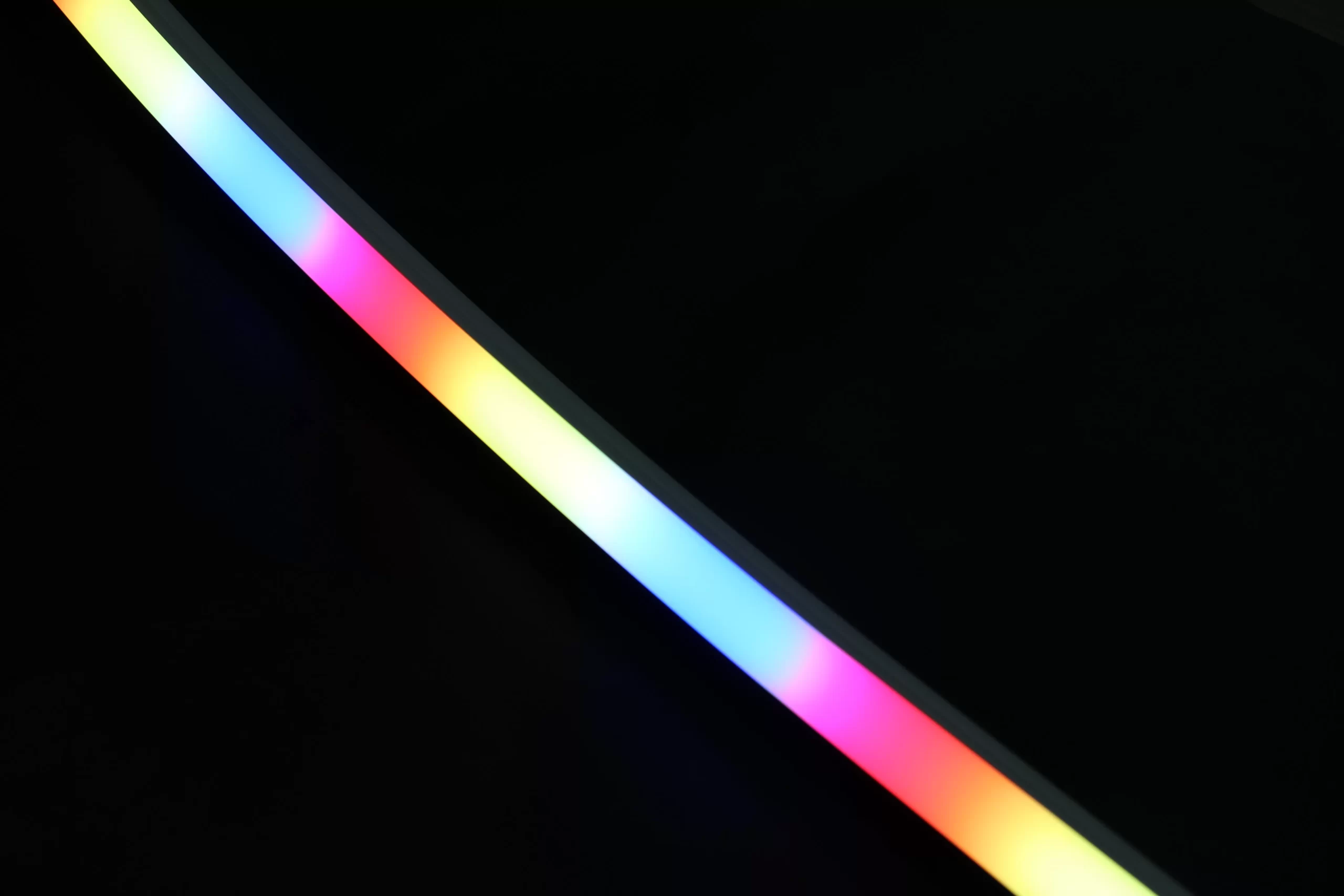

Pixel RGB

SKU:WJ-SNF-2020-D-RGB-24V
Color Temp	Red: 625.9nm	White: 6500K (Color mixing)
	Green: 525.8nm
	Blue: 470.1nm
Watts/m(24V Flat	Red: 7.44 W	White: 19.20 W (Color mixing)
	Green: 7.55 W
	Blue: 7.53 W
Lumen/m(24V Flat)	Red: 88.21 lm	White: 325.13 lm (Color mixing)
	Green: 198.061m
	Blue: 34.81 lm
Unit Cut(24V)	12.5cm
Max Loading(24V)	5m
LED Quantity(m)	112 LEDs + 16ICs IC code: SM16703P (compatible with all lCs and controllers in the WS2811 1804,and 1809 series）

PDF Download File

2020 Flat Mono

Download

2020 Flat SPI RGB

Download

2020 PWM RGB

Download

Video

Application

The 20*20mm LED Flexible Neon Light Strip exhibits outstanding characteristics in outdoor architectural applications. Its larger size design allows for a more extensive and brighter lighting effect, suitable for scenarios such as large-scale building contours and landscape lighting. Exceptional waterproof performance ensures stable operation in ever-changing outdoor environments. The 20*20mm size provides more possibilities for flexible installation, creating eye-catching light and shadow effects in outdoor architecture.
