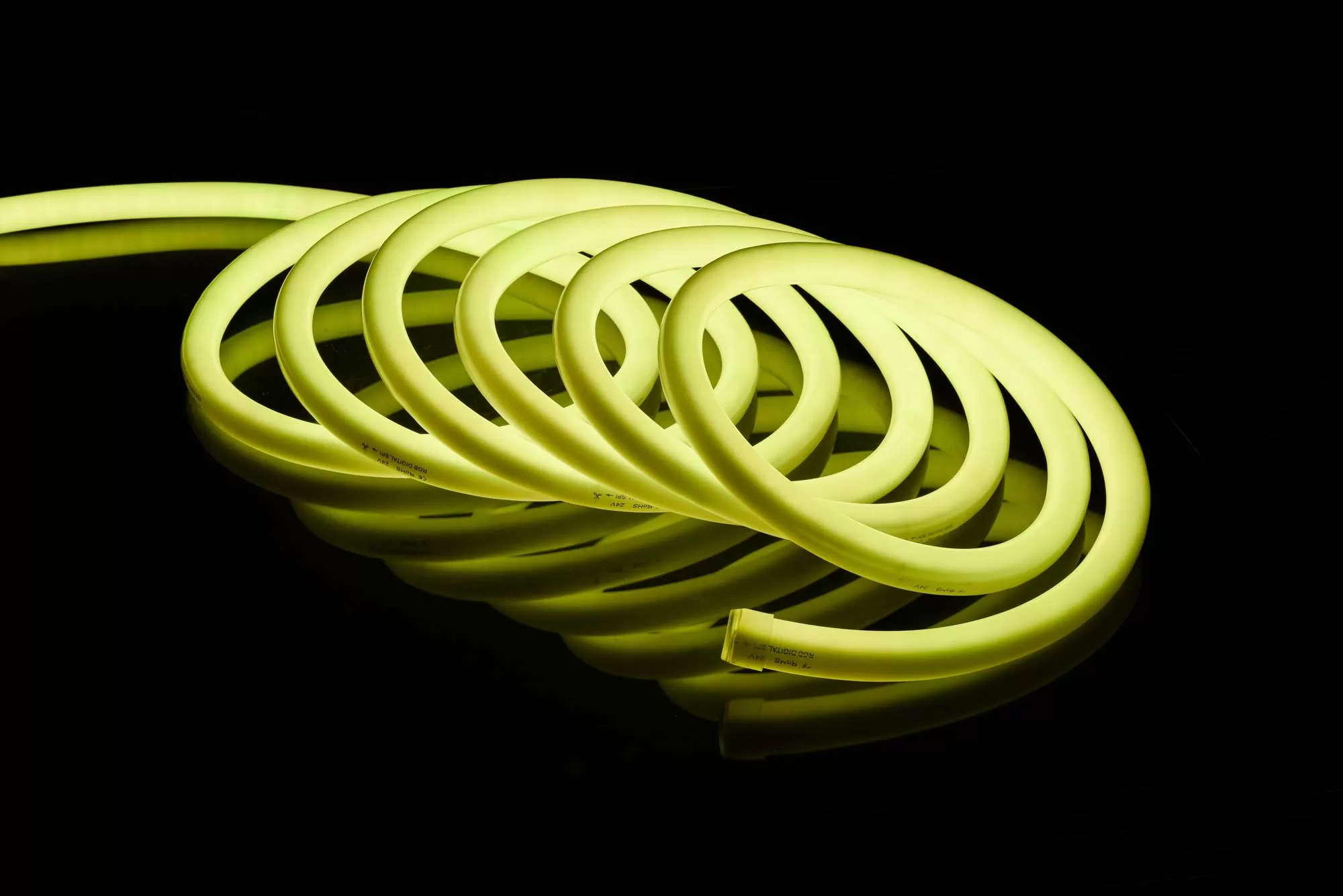

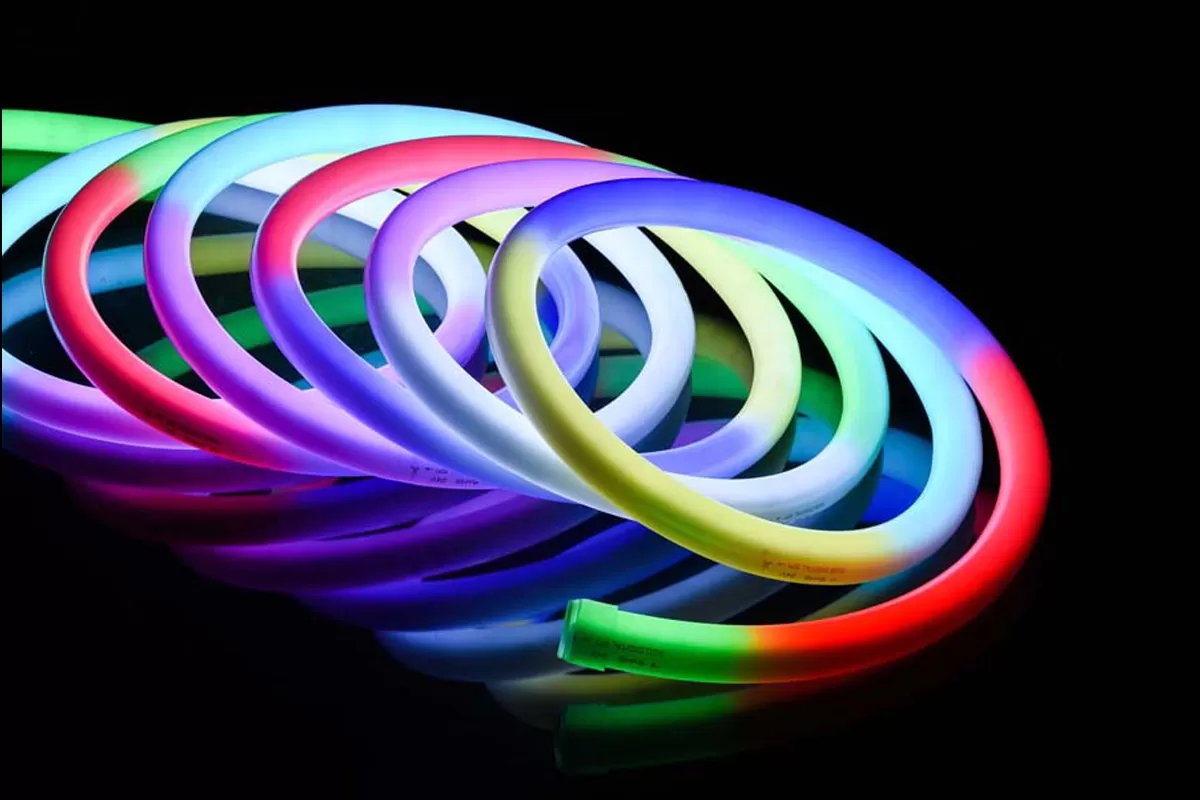

360 Degree Round 18mm Smart Digital Dynamic Pixel RGB 5050 SPI DMX LED Flexible Neon Light Strip

D18mm

SKU Code:WJ-PNF-1526
Size:D18mm Round
Bend Direction:Vertical Only
Min Bend:120mm
Material:PVC + Copper Wire
Color:Mono/RGB/Pixel
Voltage:24V, 110V, 220V
CRI:90
IP Rating:IP65, IP68
IK Rating:IK08

Product Details

Mono

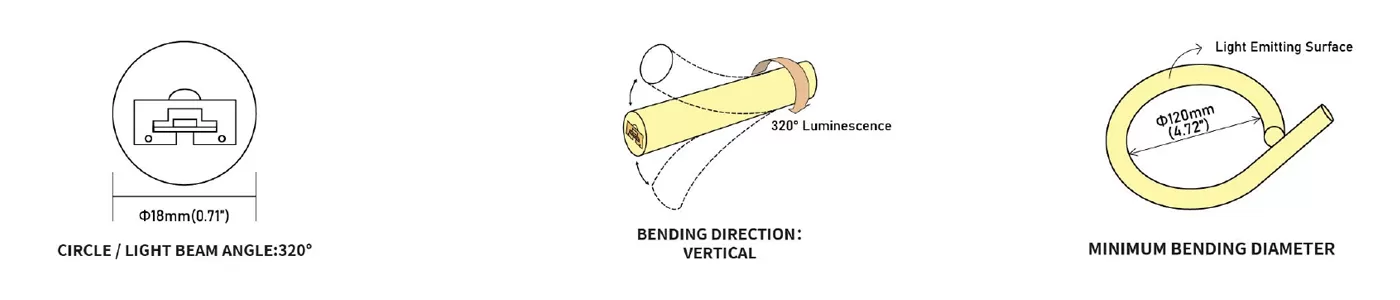

Structural Drawing & Bending Direction
Mono
Color Warm White Cool White Red Green Blue Yellow Orange Light Pink Pink(Violet) Purple
CCT / Wave: 2800K/584.0nm 10277K/475.0nm 1007K/623.0nm 8088K/526.4nm 465.2nm 1940K/588.1nm 1086K/604.8nm 1507K/634.4nm 568nm 453.3nm
LED Quantity: 144 LEDs/m 144 LEDs/m 144 LEDs/m 144 LEDs/m 144 LEDs/m 144 LEDs/m 144 LEDs/m 144 LEDs/m 144 LEDs/m 144 LEDs/m
Unit Cut: 24V 4.17cm 4.17cm 4.17cm 4.17cm 4.17cm 4.17cm 4.17cm 4.17cm 4.17cm 4.17cm
Unit Cut: 110V/220V 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm
Watts/m: 24V 8.51W 8.50 W 8.32 W 8.41 W 8.84 W 8.50 W 8.45 W 8.43 W 8.16 W 8.35 W
Lumen/m: 24V 502.12 lm 477.96 lm 201.23 lm 544.83 lm 80.40 lm 550.57 lm 334.82 lm 436.67 lm 143.14 lm 95.22 lm
Max Loading:
24V/110V/220V
20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m
PWM RGB

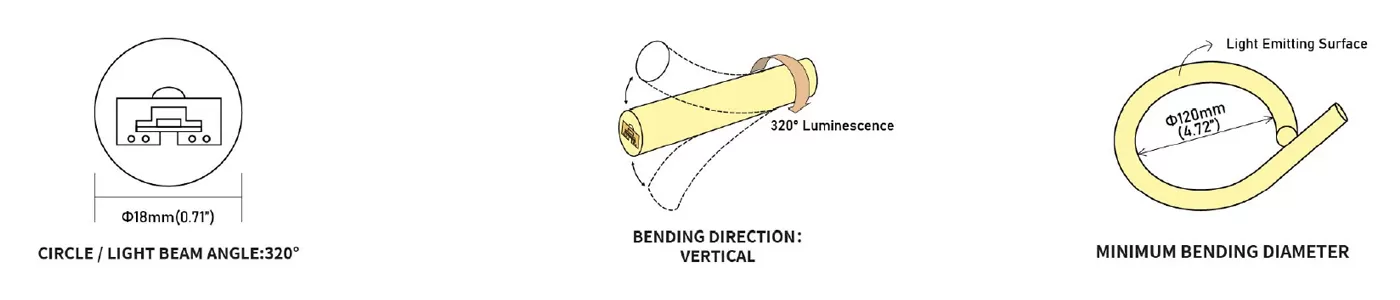

Structural Drawing & Bending Direction
PWM RGB
SKU:WJ-PNF-D18-RGB-24V110V/220V
Color Temp Red: 624.8nm White: 6500K
(Color mixing)
Green: 523.8nm
Blue: 469.4nm
Watts/m(24V Flat Red: 5.30 W White: 17.81 W
(Color mixing)
Green: 6.26 W
Blue: 6.42 W
Lumen/m(24V Flat) Red: 121.89 lm White: 440.01 lm
(Color mixing)
Green: 283.451m
Blue: 56.78 lm
Unit Cut(24V/110V/220V) 5.56cm/50cm/100cm
Max Loading(24V/110V/220V) 20m/50m/50m
LED Quantity(m) 108 LEDs
Pixel RGB

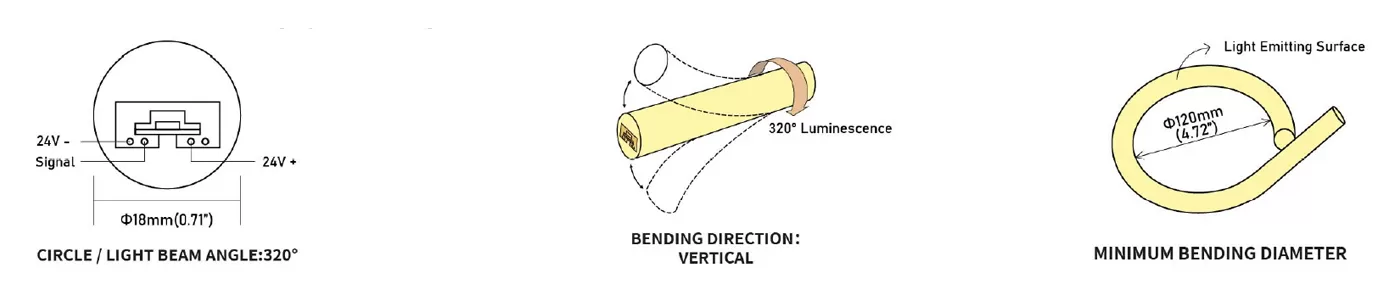

Structural Drawing & Bending Direction
Pixel RGB
SKU:WJ-PNF-D18-D-RGB-24V
Color Temp Red: 622.9nm White: 6500K
(Color mixing)
Green: 526.7nm
Blue: 469.6nm
Watts/m(24V Flat Red: 7.47 W White: 19.35 W
(Color mixing)
Green: 7.55 W
Blue: 7.50 W
Lumen/m(24V Flat) Red: 144.29 lm White: 487.75 lm
(Color mixing)
Green: 321.91m
Blue: 62.74 lm
Unit Cut(24V) 25cm
Max Loading(24V) 20m
LED Quantity(m) 112 LEDs + 16ICs IC code: SM16703P
(compatible with all lCs and controllers in the WS2811
1804,and 1809 series)

PDF Download File

D18 PNF SPI RGB
Download
D18 PNF Mono
Download
D18 PNF PWM RGB
Download

Video

D18mm Neon Flex

Application

The round 18mm diameter LED Flexible Neon Light Strip exhibits unique characteristics in outdoor applications. Its waterproof, dustproof, and UV-resistant features enable stable operation in various harsh weather conditions, making it suitable for outdoor landscape lighting, architectural contour decoration, and more. High brightness and uniform lighting effects allow it to provide clear and eye-catching illumination in outdoor environments. The circular design injects a soft and modern atmosphere into outdoor spaces, creating a charming play of light for nighttime landscapes.

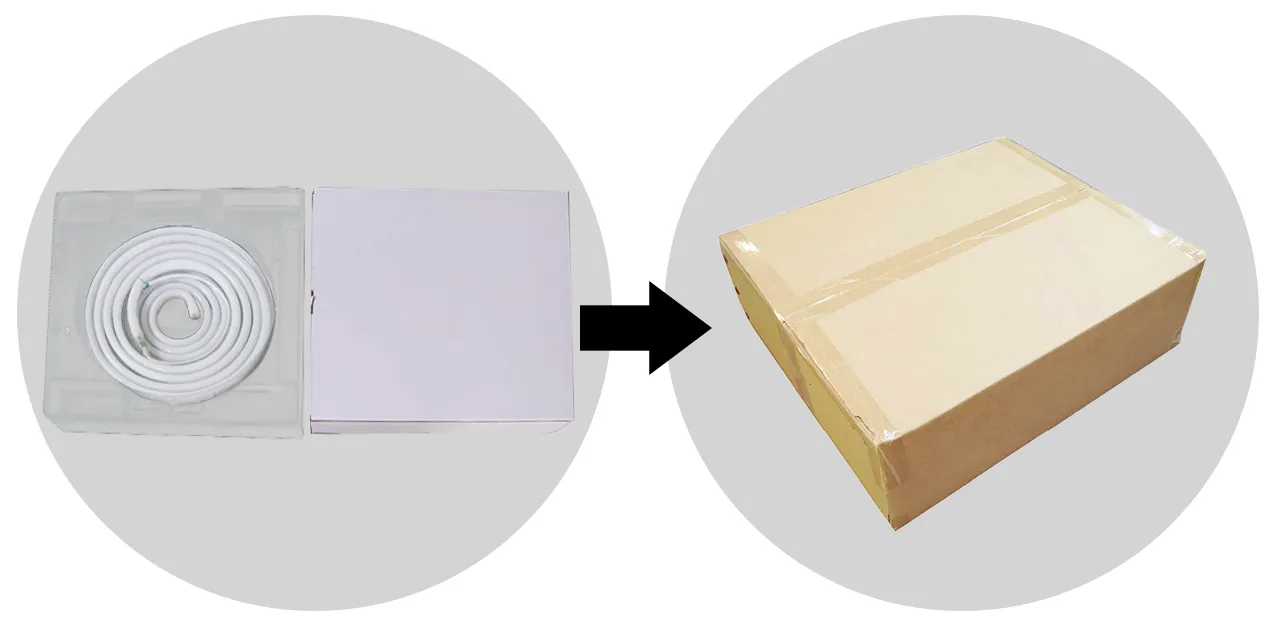

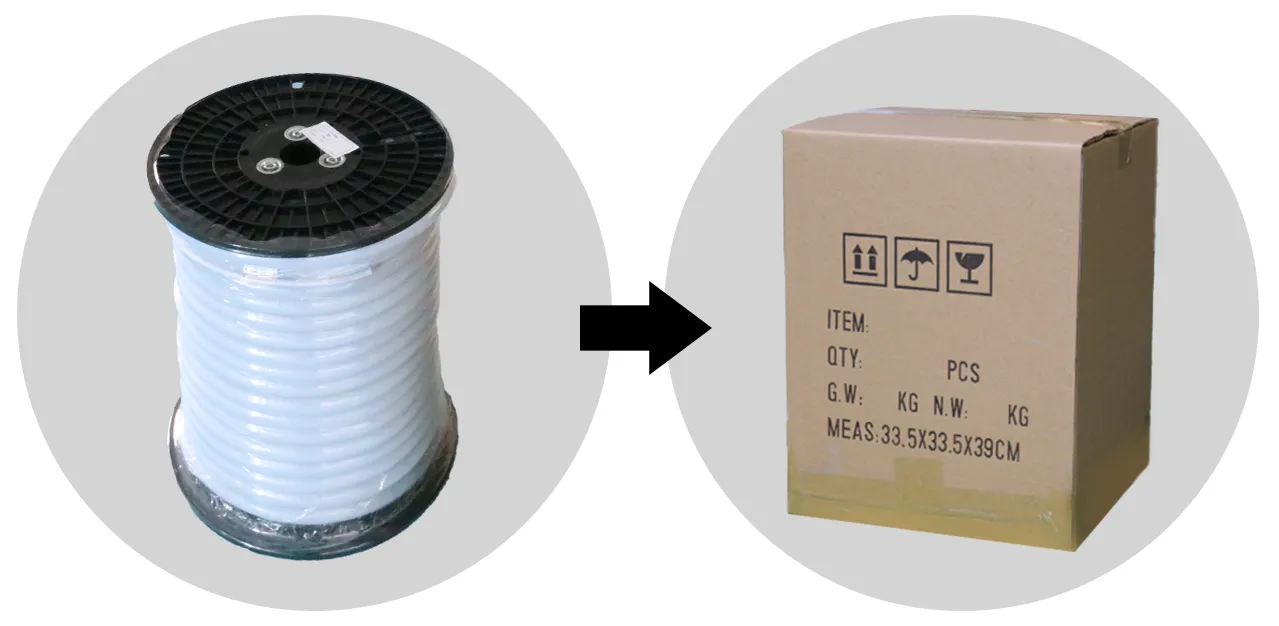

Packaging Customization
