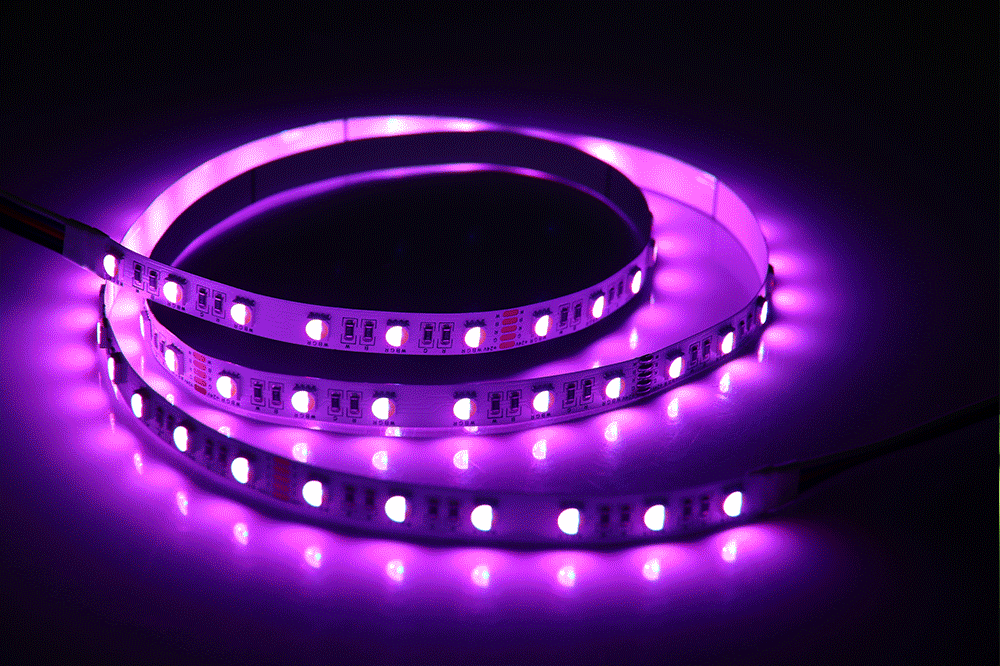

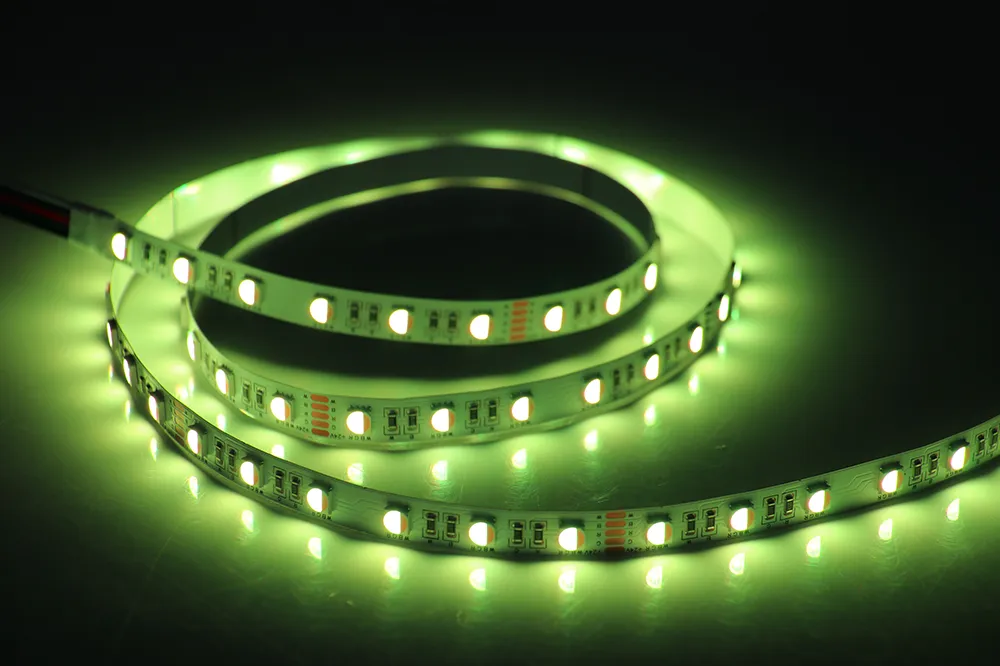

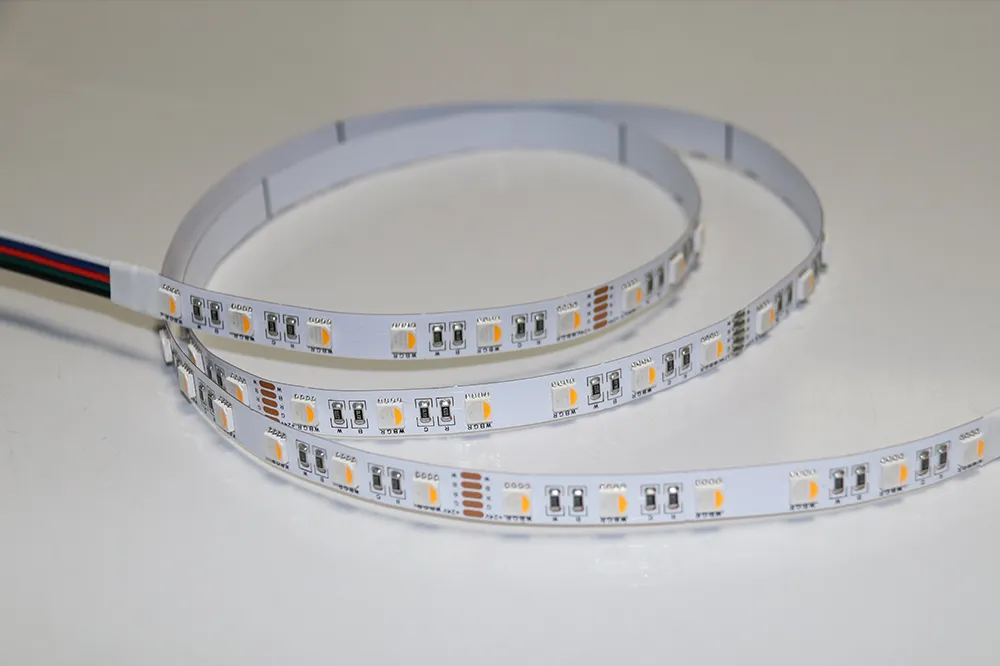

Indoor Architectural Lighting Decoration IP20 Waterproof RGBW Color Led Strip Light

WJ-LSS-SMD5050-RGBW-24V

SKU Code:WJ-LSS-SMD5050-RGBW-24V

Size:10mm

Bend Direction:Vertical

Color:RGBW COLOR

Voltage: 24V

Product Details

PWM RGBW

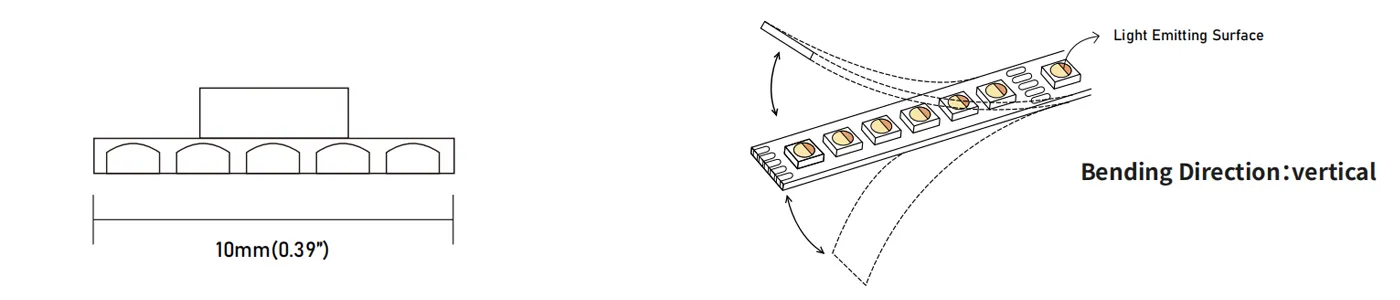

Structural Drawing & Bending Direction

SKU:WJ-LSS-SMD5050-RGBW-24V
Color Temp	Red:624.4nm	White：2693K(WW)/4000K(W) RGBW：10259K(Color mixing)
	Green:525.1
	Blue:467.5nm
Watts/m	Red:3.14W	White： 3.18W RGBW：12.43W (Color mixing)
	Green:3.72W
	Blue:3.18W
Lumen/m	Red:99.15lm	White：200.59lm RGBW：582.59lm(Color mixing)
	Green:281.79lm
	Blue:42.48lm
Unit Cut	10cm
Max Loading	5m
LED Quantity(m)	60 LEDs

PDF Download File

Video

Application

Packaging Customization
