Mini Size Silicone Tape Sign 4x10mm 12V 24V LED Kitchen Cabinet Decor Mono Color Neon Flex Light Strip

4x10mm

SKU Code:WJ-SNF-0410
Size:4x10mm Flat
Bend Direction:Horizontal Only
Min Bend:120mm
Material:Silicone
Color:Mono/RGB/Pixel
Voltage:12V, 24V
CRI:90
IP Rating:IP65
IK Rating:IK08

Product Details

Mono

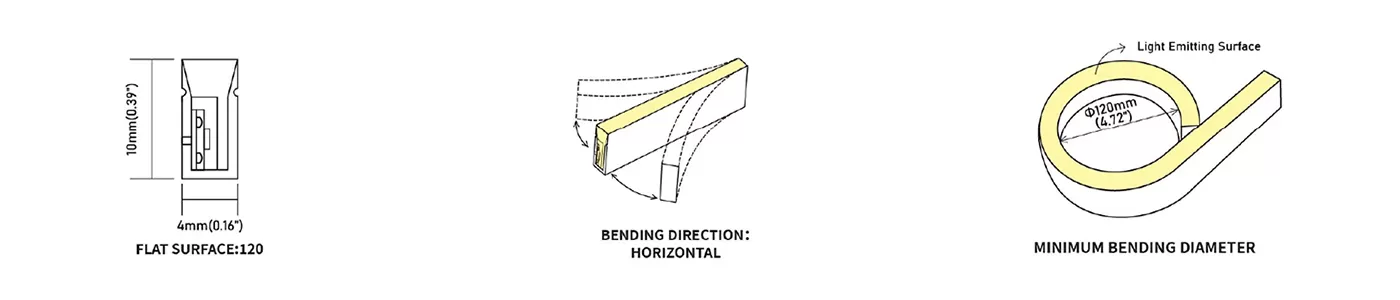

Structural Drawing & Bending Direction
Mono
Color Warm White Cool White Red Green Blue Yellow Orange Light Pink Pink(Violet) Purple
CCT / Wave: 2593K/586.0nm 6865K/471.7nm 1007K/622.6nm 8094K/526.3nm 465.2nm 1782K/590.2nm 1062K/605.5nm 1457K/614.9nm 568nm 443.1nm
LED Quantity: 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m
Unit Cut: 12V 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm
Unit Cut: 24V 5cm 5cm 5cm 5cm 5cm 5cm 5cm 5cm 5cm 5cm
Watts/m: 24V 8.34W 8.41 W 7.76 W 8.54 W 8.71 W 8.24 W 8.35 W 8.36 W 8.06 W 8.20 W
Lumen/m: 24V 188.27 lm 187.68 lm 72.58 lm 198.77 lm 27.09 lm 204.30 lm 135.98 lm 173.46 lm 61.33 lm 34.44 lm
Max Loading:
12V/24V
5m 5m 5m 5m 5m 5m 5m 5m 5m 5m
PWM RGB

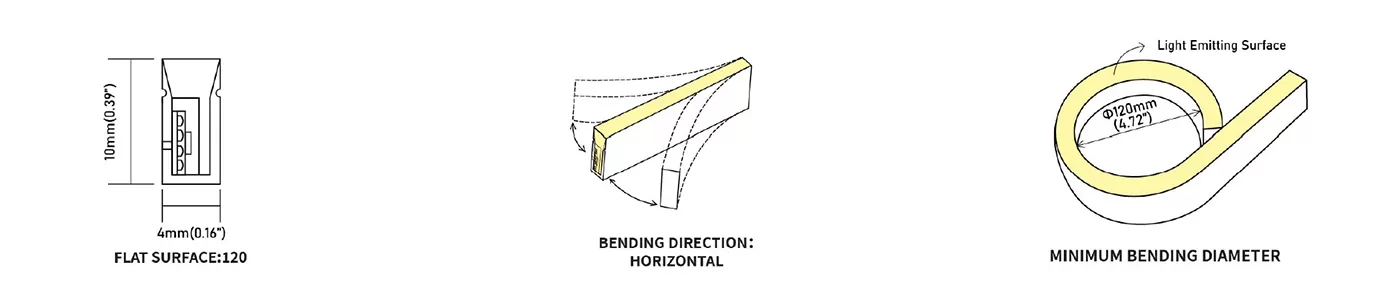

Structural Drawing & Bending Direction
PWM RGB
SKU:WJ-SNF-0410-RGB-24V
Color Temp Red: 624.5nm White: 6500K
(Color mixing)
Green: 520.6nm
Blue: 468.7nm
Watts/m(24V Flat Red: 6.63 W White: 18.33 W
(Color mixing)
Green: 6.63 W
Blue: 6.28 W
Lumen/m(24V Flat) Red: 38.49 lm White: 169.64 lm
(Color mixing)
Green: 120.061m
Blue: 18.23 lm
Unit Cut(24V) 5.56cm
Max Loading(24V) 5m
LED Quantity(m) 108 LEDs
Pixel RGB
Structural Drawing & Bending Direction
Pixel RGB
SKU:WJ-SNF-0410-D-RGB-24V
Color Temp Red: 625.1nm White: 6500K
(Color mixing)
Green: 520.6nm
Blue: 469.1nm
Watts/m(24V Flat Red: 6.94 W White: 18.42 W
(Color mixing)
Green: 7.25 W
Blue: 7.00 W
Lumen/m(24V Flat) Red: 38.72 lm White: 175.53 lm
(Color mixing)
Green: 130.451m
Blue: 18.75 lm
Unit Cut(24V) 5.56cm
Max Loading(24V) 5m
LED Quantity(m) 108 LEDs + 18 ICs   IC code: SM16703P
(compatible with all lCs and controllers in the WS2811
1804,and 1809 series

PDF Download File

0410 PWM RGB 2023
Download
0410 Flat Mono 2023
Download
0410 Flat SPI RGB 2023
Download

Video

4*10mm Neon Flex

Application

4x10mm small LED flexible neon strips are ideal for indoor applications to create ambient and accent lighting. Ideal for home décor, these neon lights can be seamlessly integrated under furniture, on shelves or around mirrors, adding a modern touch to residential spaces. Its compact size makes it versatile for accentuating architectural features, illuminating an accent wall, or providing subtle lighting in a workspace. With customizable colors and flexibility, these strips offer stylish solutions for enhancing a variety of interior environments.
