10x23mm 12V 24V RGB 5050 PWM DMX Strips Lights Tape LED Digital Neon Flex

10x23mm

SKU Code:WJ-SNF-1023
Size:10x23mm
Bend Direction:Horizontal Only
Min Bend:120mm
Material:Silicone
Color:Mono/RGB/RGBW/Pixel
Voltage:12V, 24V
CRI:90
IP Rating:IP65, IP68
IK Rating:IK08

Product Details

Mono

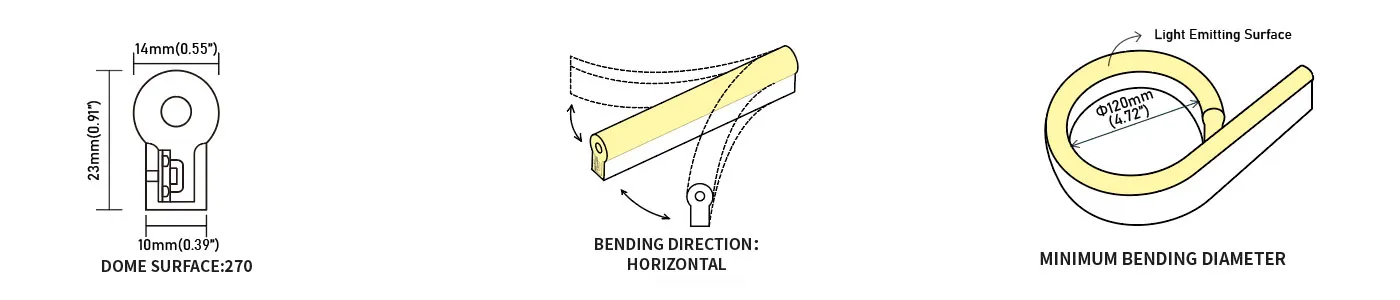

Structural Drawing & Bending Direction
Mono
Color Warm White Cool White Red Green Blue Yellow Orange Light Pink Pink(Violet) Purple
CCT / Wave: 2798K/585.0nm 8450K/472.9nm 1007K/623.4nm 8085K/526.4nm 465.0nm 1878K/588.9nm 1081K/604.9nm 1518K/621.2nm 568nm 449.5nm
LED Quantity: 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m
Unit Cut: 12V 2.5cm 2.5cm  2.5cm  2.5cm  2.5cm  2.5cm  2.5cm  2.5cm  2.5cm  2.5cm
Unit Cut: 24V 5cm 5cm 5cm 5cm 5cm 5cm 5cm 5cm 5cm 5cm
Watts/m: 24V 8.41W 8.41 W 7.83 W 8.54 W 8.78 W 8.03 W 8.41 W 8.43 W 8.08 W 8.21 W
Lumen/m: 24V 298.71 lm 282.04 lm 128.44 lm 306.99 lm 41.76 lm 335.99 lm 215.78 lm 277.97 lm 83.43 lm 56.10 lm
Max Loading:
12V/24V
5m 5m 5m 5m 5m 5m 5m 5m 5m 5m
PWM RGB
Structural Drawing & Bending Direction
PWM RGB
SKU:WJ-SNF-1023-RGB-24V
Color Temp Red: 624.8nm White: 6500K
(Color mixing)
Green: 524.2nm
Blue: 470.5nm
Watts/m(24V Flat Red: 3.57 W White: 11.89 W
(Color mixing)
Green: 4.19 W
Blue: 4.40 W
Lumen/m(24V Flat) Red: 49.75 lm White: 172.50 lm
(Color mixing)
Green: 103.771m
Blue: 19.65 lm
Unit Cut(24V) 8.83cm
Max Loading(24V) 5m
LED Quantity(m) 72 LEDs
Pixel RGB
Structural Drawing & Bending Direction
Pixel RGB
SKU:WJ-SNF-1023-D-RGB-24V
Color Temp Red: 624.8nm White: 6500K
(Color mixing)
Green: 524.6nm
Blue: 469.4nm
Watts/m(24V Flat Red: 4.84 W White: 11.96 W
(Color mixing)
Green: 4.91 W
Blue: 5.21 W
Lumen/m(24V Flat) Red: 48.84 lm White: 139.33 lm
(Color mixing)
Green: 83.941m
Blue: 16.43 lm
Unit Cut(24V) 10cm
Max Loading(24V) 5m
LED Quantity(m) 60 LEDs + 10ICs IC code: SM16703P
(compatible with all lCs and controllers in the WS2811
1804,and 1809 series)

PDF Download File

1023 PWM RGB
Download
1023 SPI RGB
Download
1023 Dome Mono
Download

Video

10*23mm Neon Flex

Application

The 10*23mm LED Neon Flex, when used indoors, possesses distinctive features. Its wider dimensions provide greater creative flexibility for interior design, making it well-suited for decorating architectural structures, commercial displays, and indoor lighting. The larger size also brings increased brightness and a more pronounced visual impact, infusing indoor environments with dynamic and eye-catching elements.
