10x20mm Digital Smart Dynamice Pixel RGB 5050 Programmable Flexible Neon Sign Flex Light Strip

10x20mm

SKU Code:WJ-PNF-1020
Size:10x20mm Dome/Flat
Bend Direction:Horizontal Only
Min Bend:120mm
Material:PVC + Copper Wire
Color:Mono/RGB/RGBW/Pixel
Voltage:24V, 110V, 220V
CRI:90
IP Rating:IP65, IP68
IK Rating:IK08

Product Details

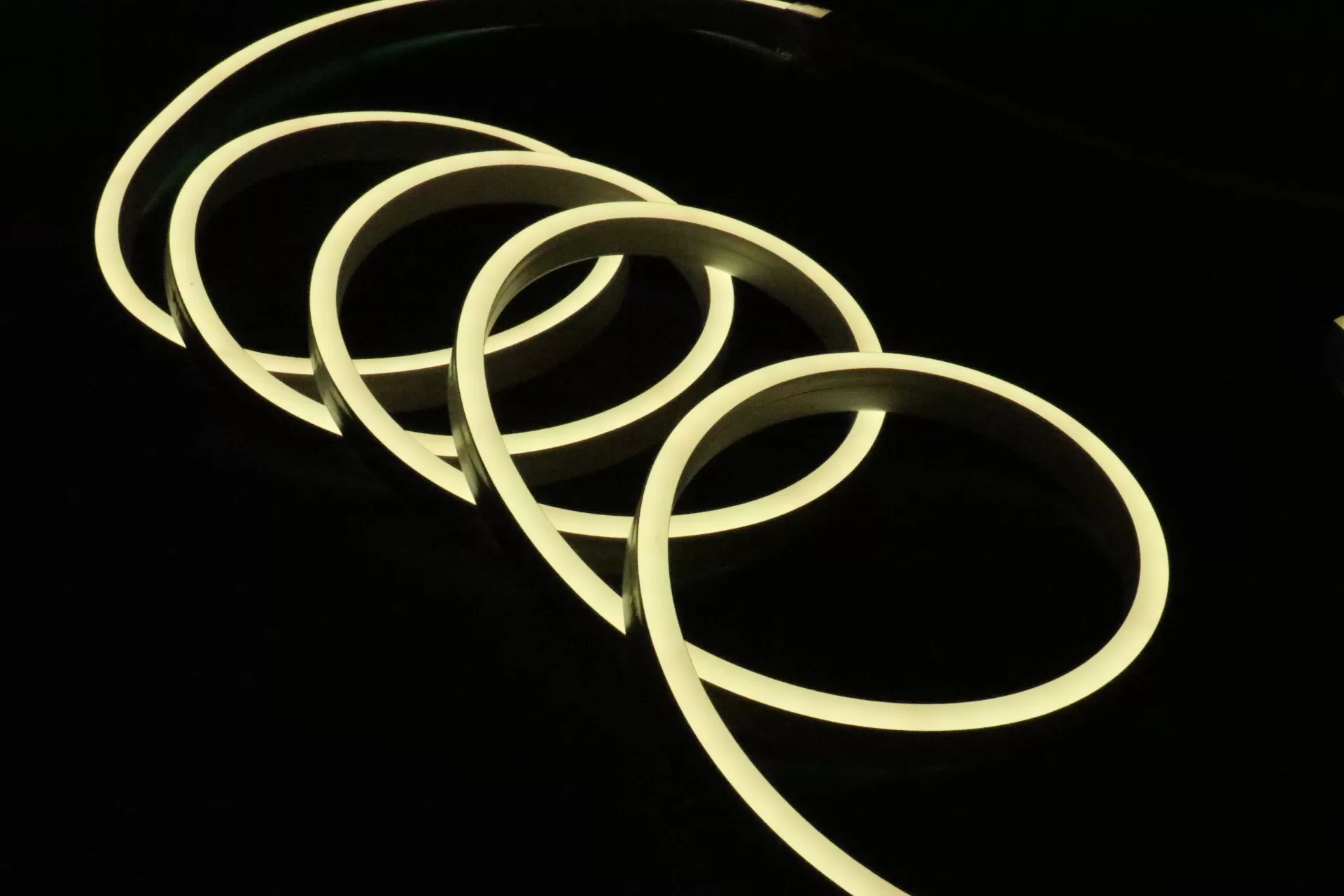

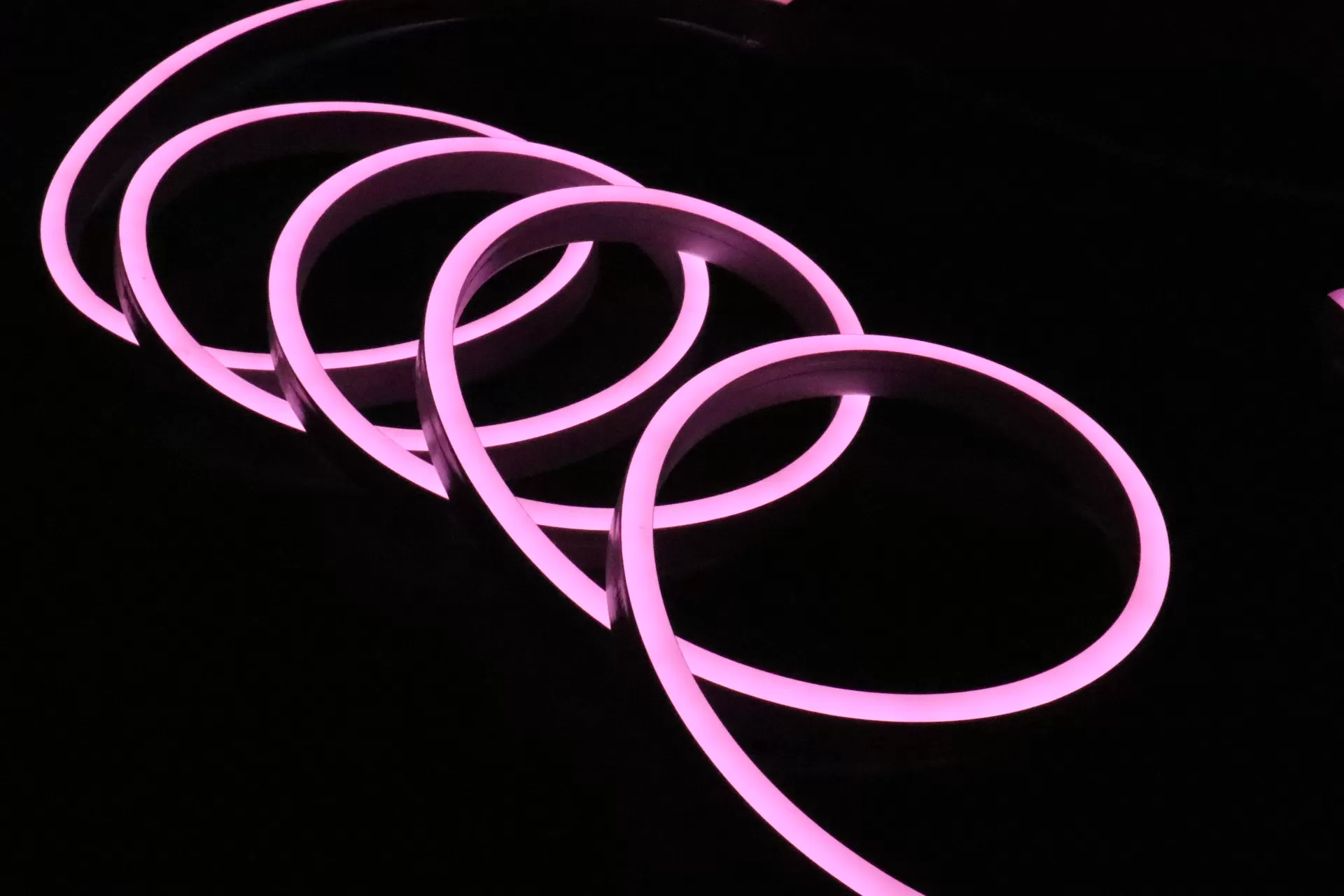

Mono

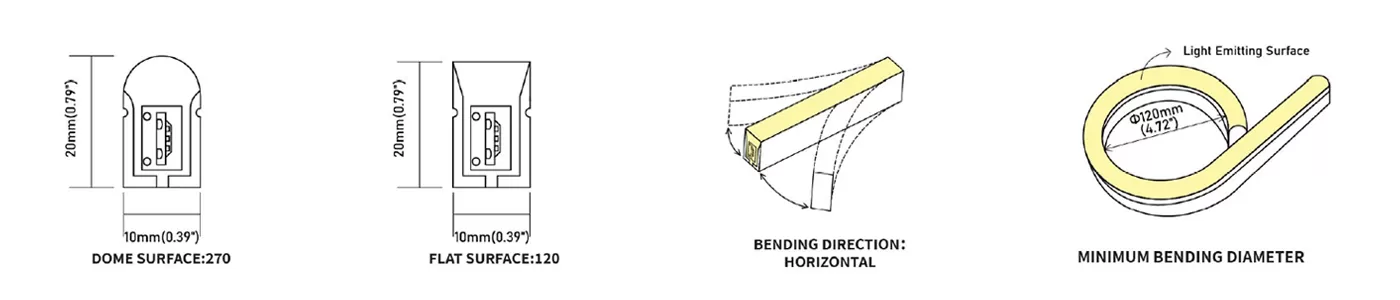

Structural Drawing & Bending Direction
Mono
Color Warm White Cool White Red Green Blue Yellow Orange Light Pink Pink(Violet) Purple
CCT / Wave: 2800K/584.2nm 7300K/477.9nm 1007K/623.0nm 8170K/525.7nm 464.8nm 1872K/589.0nm 1079K/605.0nm 1494K/616.8nm 568nm 445.7nm
LED Quantity: 96 LEDs/m 96 LEDs/m 72 LEDs/m 72 LEDs/m 72 LEDs/m 72 LEDs/m 72 LEDs/m 72 LEDs/m 72 LEDs/m 72 LEDs/m
Unit Cut: 24V 12.5cm 12.5cm 8.33cm 8.33cm 8.33cm 8.33cm 8.33cm 8.33cm 8.33cm 8.33cm
Unit Cut: 110V/220V 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm
Watts/m: 24V 8.85W 8.78 W 8.78 W 8.21 W 9.29 W 8.87 W 8.87 W 8.80 W 8.32 W 8.50 W
Lumen/m: 24V 231.34 1m 220.79 1m 94.27 1m 200.80 1m 31.21 1m 251.32 1m 151.48 1m 196.20 1m 61.86 1m 36.91 1m
Max Loading:
24V/110V/220V
20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m

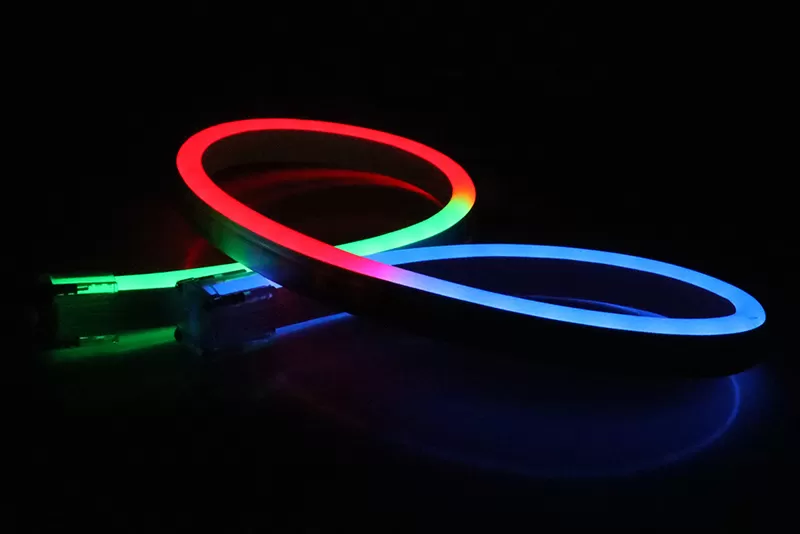

PWM RGB

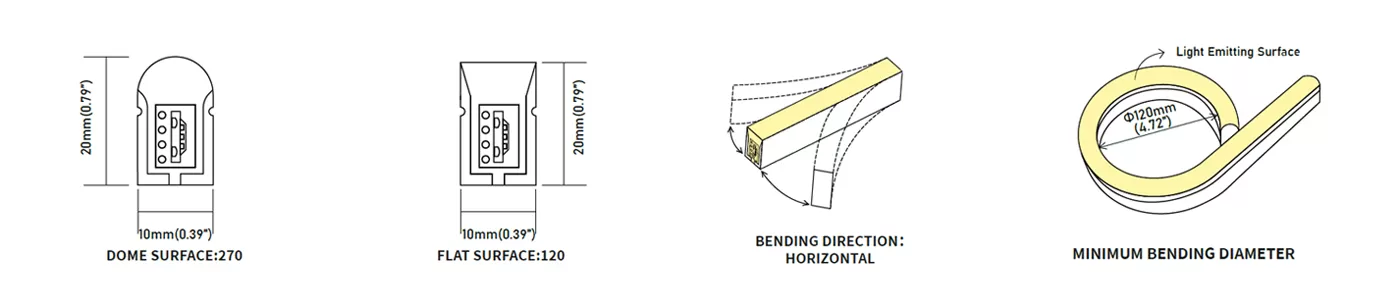

Structural Drawing & Bending Direction
PWM RGB
SKU:WJ-PNF-1020-RGB-24V/110V/220V
Color Temp Red: 625.8nm White: 6500K
(Color mixing)
Green: 524.9nm
Blue: 470.5nm
Watts/m(24V Flat Red: 3.70 W White: 11.87 W
(Color mixing)
Green: 4.13 W
Blue: 4.49 W
Lumen/m(24V Flat) Red: 37.79 lm White: 130.13 lm
(Color mixing)
Green: 80.301m
Blue: 15.69 lm
Unit Cut(24V/110V/220V) 8.83cm/50cm/100cm
Max Loading(24V/110V/220V) 20m/50m/50m
LED Quantity(m) 72 LEDs

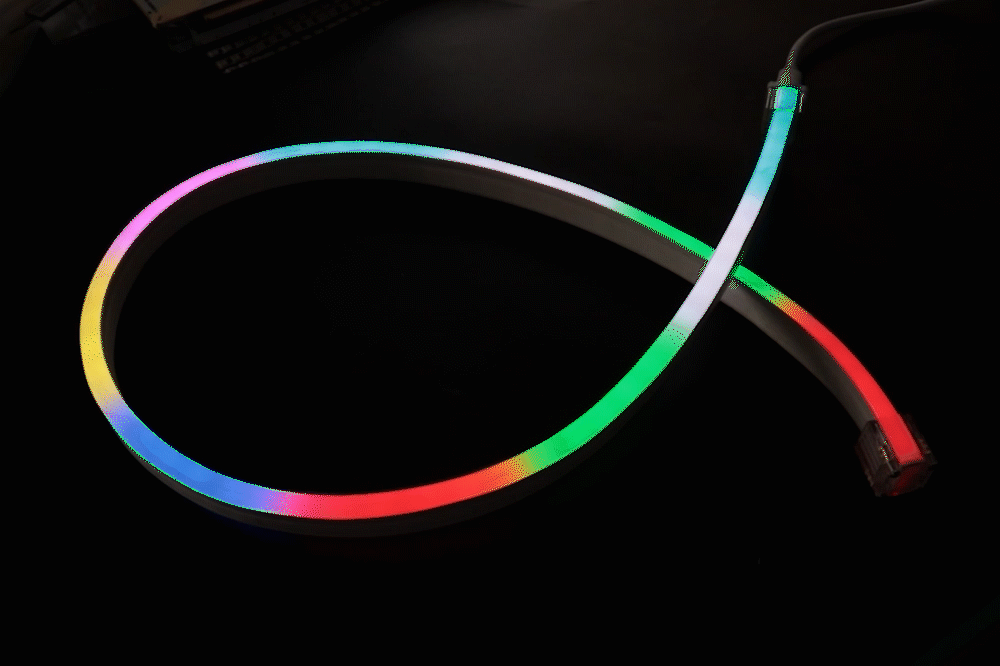

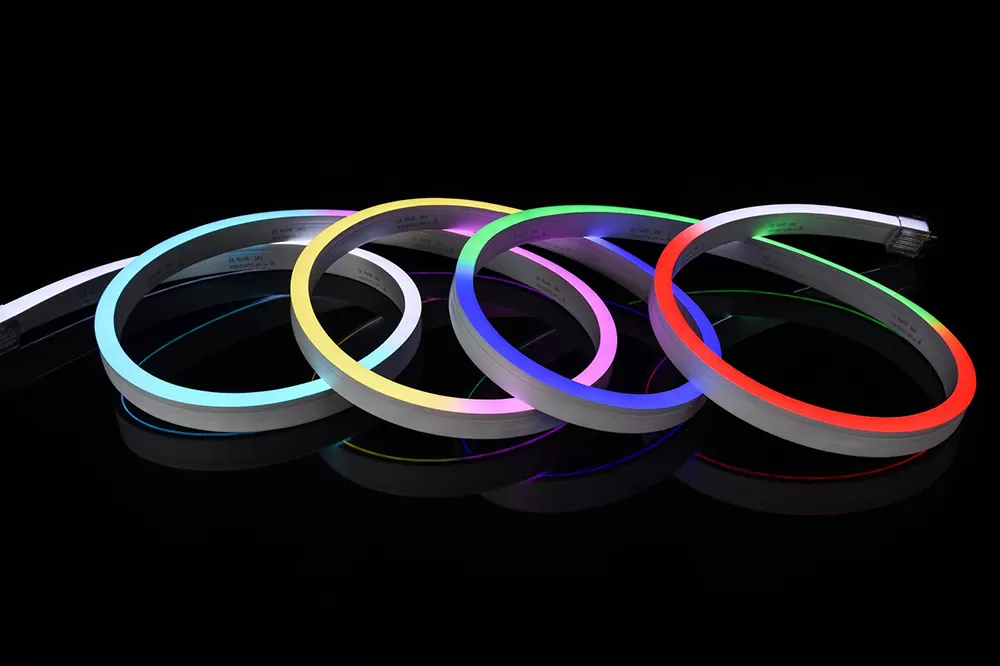

Pixel RGB

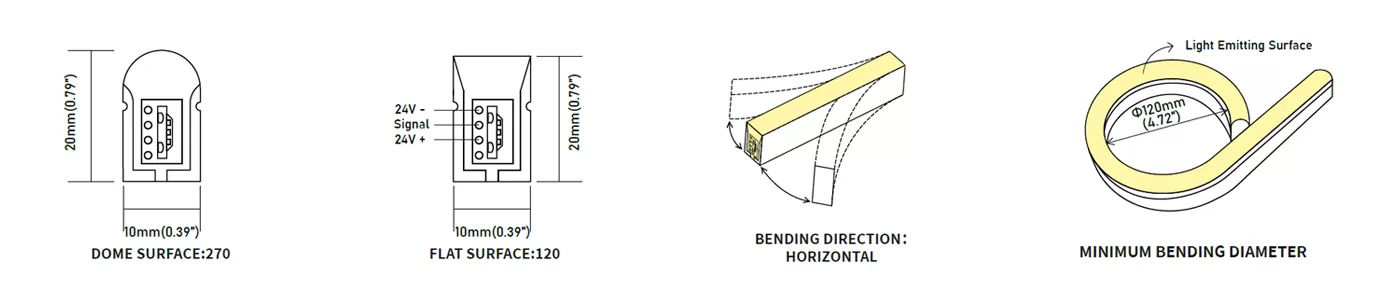

Structural Drawing & Bending Direction
Pixel RGB
SKU:WJ-PNF-1020-D-RGB-24V
Color Temp Red: 624.7nm White: 16572K
(Color mixing)
Green: 524.2nm
Blue: 470.0nm
Watts/m(24V Flat Red: 4.76 W White: 12.2 W
(Color mixing)
Green: 5.13 W
Blue: 5.17 W
Lumen/m(24V Flat) Red: 33.68 lm White: 108.16 lm
(Color mixing)
Green: 66.231m
Blue: 12.99 lm
Unit Cut(24V) 10cm
Max Loading(24V) 20m
LED Quantity(m) 60 LEDs + 10ICs IC code: SM16703P
(compatible with all lCs and controllers in the WS2811
1804,and 1809 series)
PWM RGBW

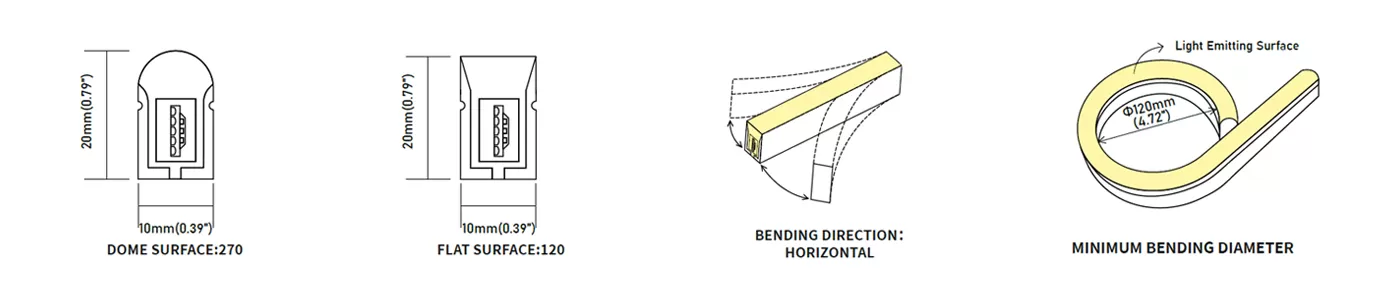

Structural Drawing & Bending Direction
PWM RGBW
SKU:WJ-PNF-1020-RGBW-24V
Color Temp Red: 624.5nm White: 5322K
(Color mixing)
Green: 526.9nm
Blue: 469.8nm
Watts/m(24V Flat Red: 3.86 W White:4.27 W

(Color mixing)

RGBW:15.88W

Green: 4.02 W
Blue: 4.01 W
Lumen/m(24V Flat) Red: 29.71 lm White:77.15 lm

(Color mixing)

RGBW:165.04 lm

Green: 58.761m
Blue: 9.46 lm
Unit Cut(24V) 8.33cm
Max Loading(24V) 5m
LED Quantity(m) 72 LEDs

PDF Download File

1020 PWM RGBW
Download
1020 SPI RGB
Download
1020 SPI RGBW
Download
1020 Mono
Download
1020 PWM RGB
Download

Video

10*20mm Neon Flex

Application

The 10*20mm LED Neon Flex exhibits unique characteristics when used indoors. Its moderate size allows for excellent performance in both interior lighting and decoration, offering flexibility for outlining architectural elements and providing eye-catching lighting effects for commercial displays and home environments. The balanced dimensions strike a harmony between brightness and spatial design, creating a warm and modern ambiance for indoor settings.

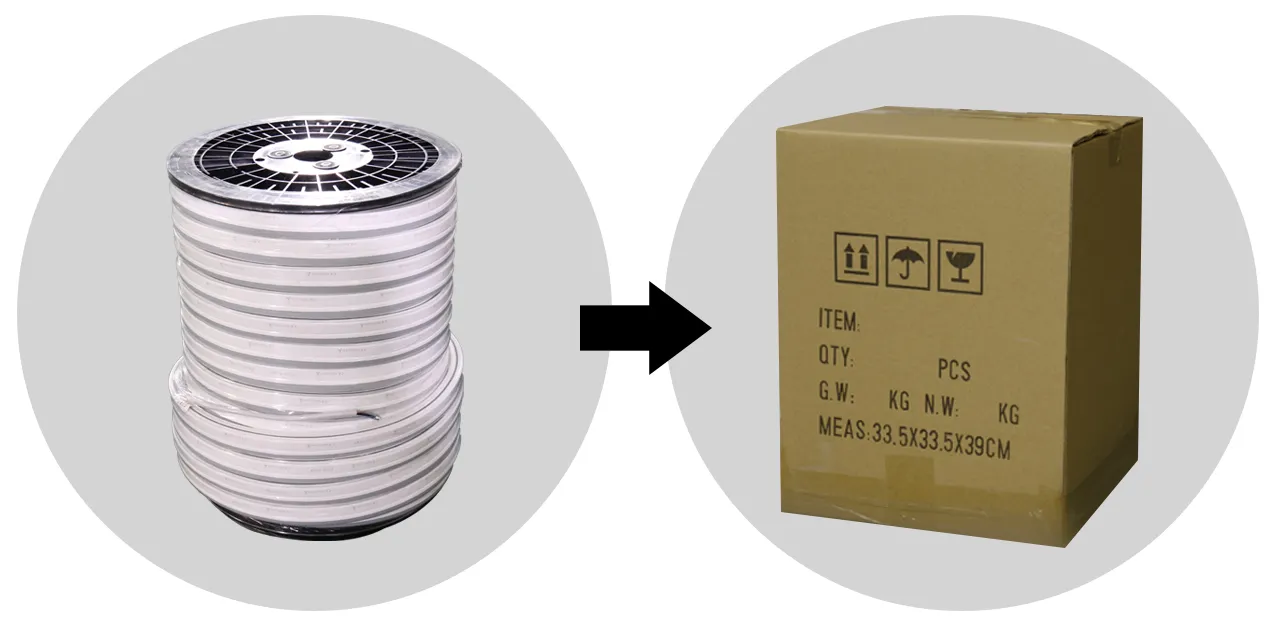

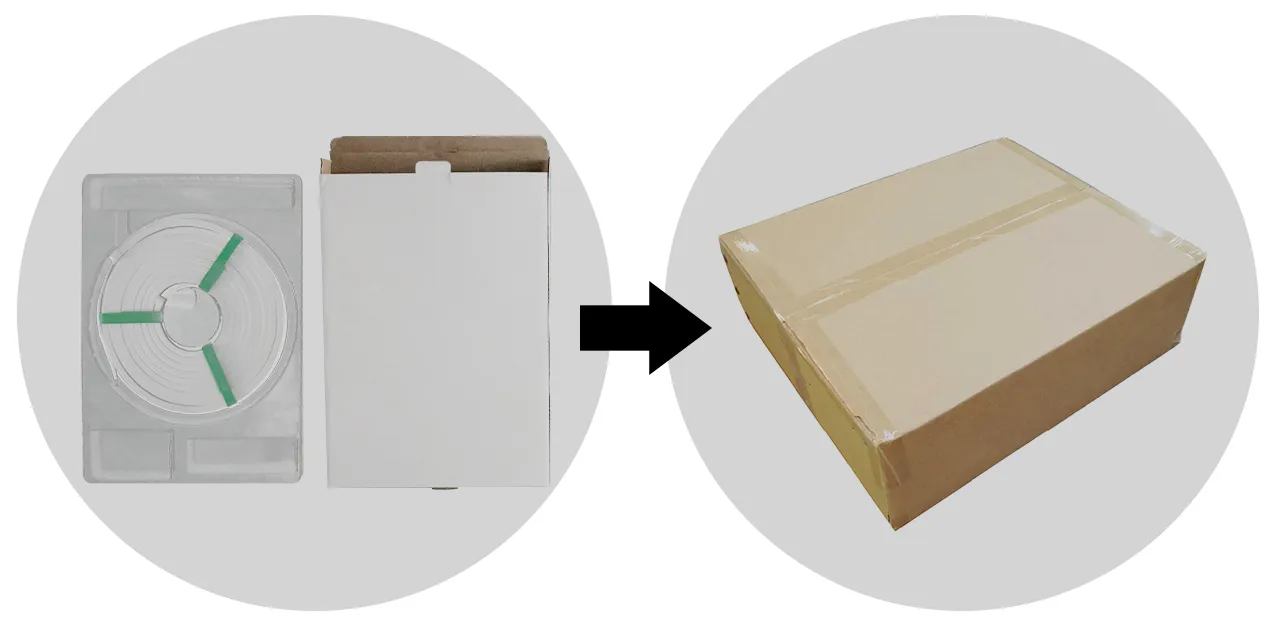

Packaging Customization
