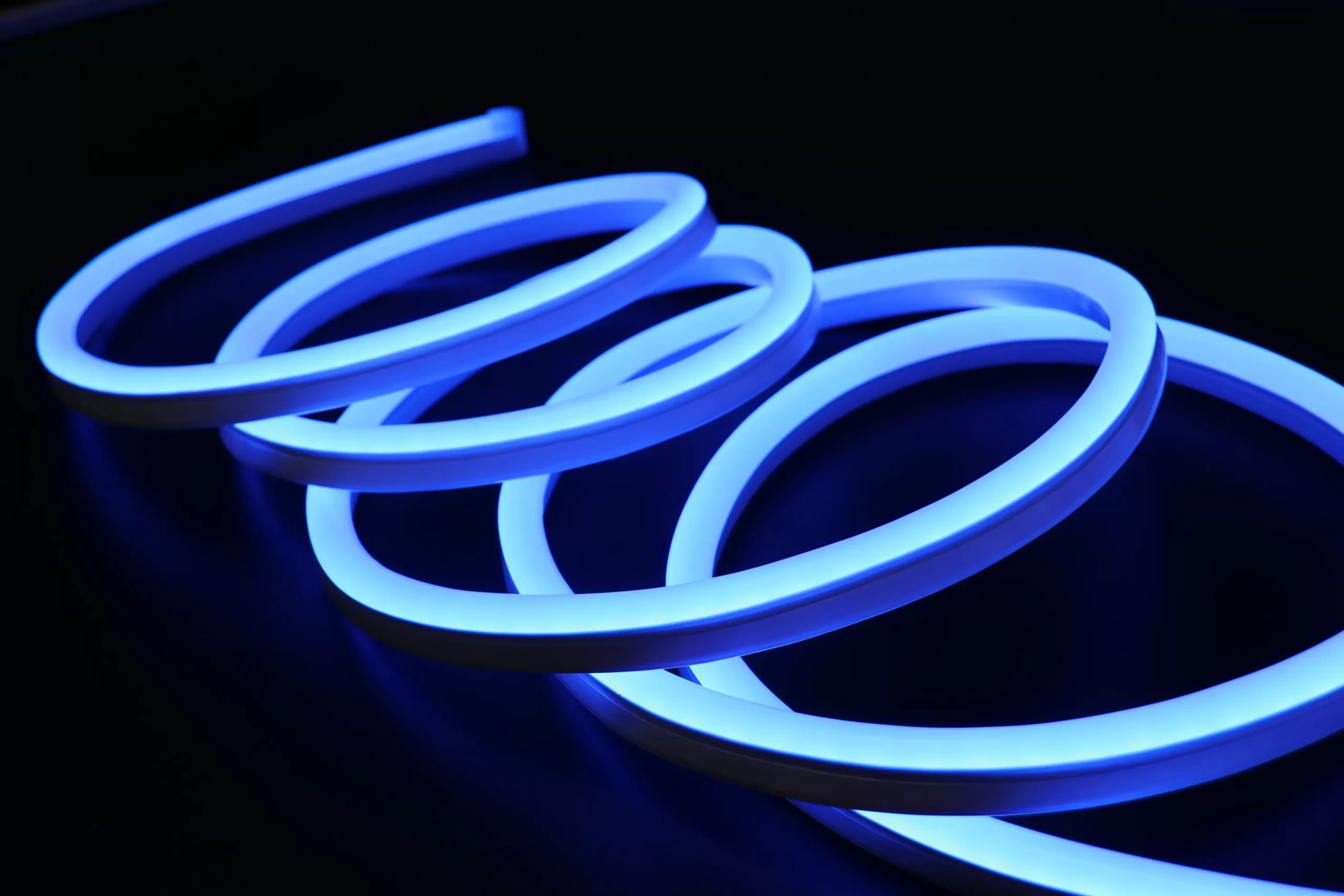

Building Lighting 10x15mm Waterproof Garden Hotel Facade Decor LED Neon Flex Light Strip

10x15mm

SKU Code:WJ-PNF-1015
Size:10x15mm Dome/Flat
Bend Direction:Horizontal Only
Min Bend:120mm
Material:PVC + Copper Wire
Color:Mono/RGB/Pixel
Voltage:24V, 110V, 220V
CRI:90
IP Rating:IP65, IP68
IK Rating:IK08

Product Details

Mono

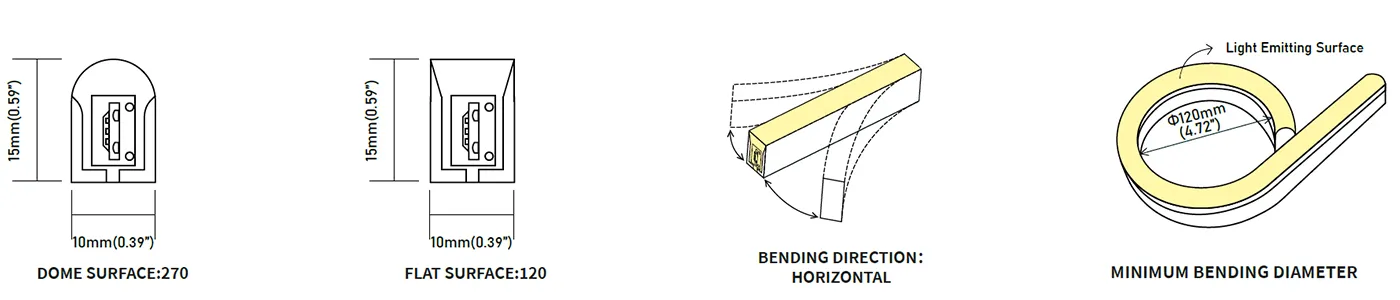

Structural Drawing & Bending Direction
Mono
Color Warm White Cool White Red Green Blue Yellow Orange Light Pink Pink(Violet) Purple
CCT / Wave: 2800K/584.2nm 8800K/475.2nm 1007K/623.0nm 8024K/525.4nm 464.8nm 1892K/588.7nm 1079K/605.0nm 1508K/626.8nm 568nm 450.9nm
LED Quantity: 96 LEDs/m 96 LEDs/m 96 LEDs/m 96 LEDs/m 96 LEDs/m 96 LEDs/m 96 LEDs/m 96 LEDs/m 96 LEDs/m 96 LEDs/m
Unit Cut: 24V 12.5cm 12.5cm 12.5cm 12.5cm 12.5cm 12.5cm 12.5cm 12.5cm 12.5cm 12.5cm
Unit Cut: 110V/220V 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 50cm/100cm 5cm
Watts/m: 24V 8.88W 8.81 W 8.34 W 8.65 W 9.20 W 8.85 W 8.82 W 8.84 W 8.43 W 8.50 W
Lumen/m: 24V 302.491m 291.58 1m 142.77 1m 316.19 1m 49.47 1m 343.34 1m 206.29 1m 279.46 1m 91.00 1m 57.96 1m
Max Loading:
24V/110V/220V
20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m 20m/50m/50m
PWM RGB

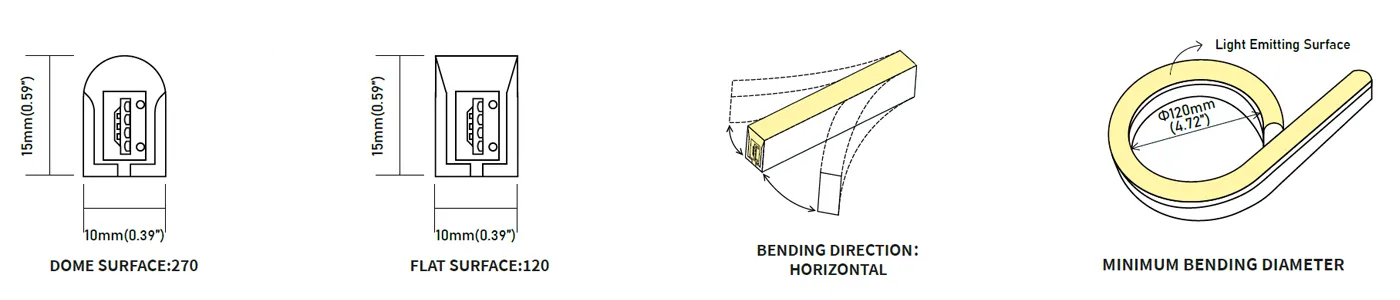

Structural Drawing & Bending Direction
PWM RGB
SKU:WJ-SNF-1015-RGB-24V
Color Temp Red: 623.6nm White: 6500K
(Color mixing)
Green: 520.0nm
Blue: 468.7nm
Watts/m(24V Flat Red: 6.28 W White: 18.84 W
(Color mixing)
Green: 6.48 W
Blue: 5.99 W
Lumen/m(24V Flat) Red: 59.76 lm White: 237.26 lm
(Color mixing)
Green: 172.331m
Blue: 26.90 lm
Unit Cut(24V) 5.56cm
Max Loading(24V) 5m
LED Quantity(m) 108 LEDs
Pixel RGB

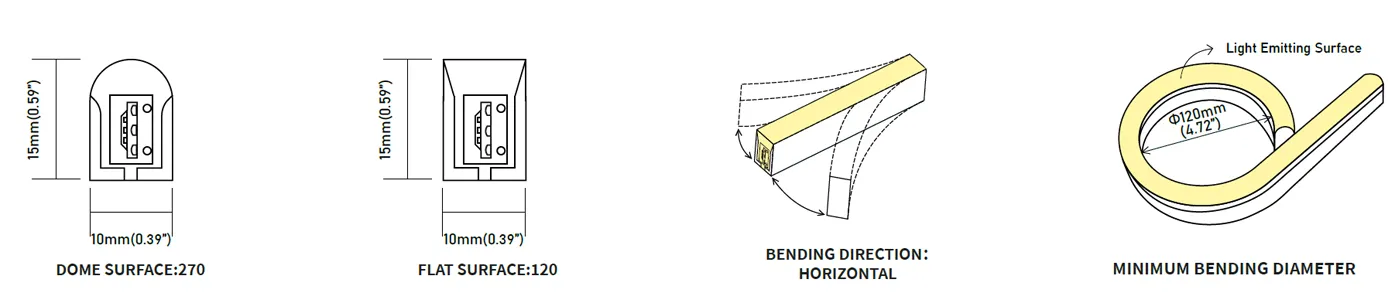

Structural Drawing & Bending Direction
Pixel RGB
SKU:WJ-SNF-1015-D-RGB-24V
Color Temp Red: 623.2nm White: 6500K
(Color mixing)
Green: 519.6nm
Blue: 468.4nm
Watts/m(24V Flat Red: 6.94 W White: 18.67 W
(Color mixing)
Green: 7.29 W
Blue: 7.00 W
Lumen/m(24V Flat) Red: 53.06 lm White: 220.02 lm
(Color mixing)
Green: 167.381m
Blue: 25.24 lm
Unit Cut(24V) 5.56cm
Max Loading(24V) 5m
LED Quantity(m) 108 LEDs + 18 ICs     IC code: SM16703P
(compatible with all lCs and controllers in the WS2811
1804,and 1809 series)

PDF Download File

1015 SPI RGB
Download
1015 Mono
Download
1015 PWM RGB
Download

Video

10*15mm Neon Flex

Application

The 10*15mm neon flex exhibits distinctive characteristics for indoor applications. Its larger dimensions make it more prominent in indoor environments, providing a wider coverage of illumination. Additionally, it retains its flexible design, adapting to different indoor structures, creating a modern and inviting lighting ambiance. The unique size and design of the 10*15mm flexible neon light strip make it an ideal choice for crafting a distinctive atmosphere in indoor spaces.

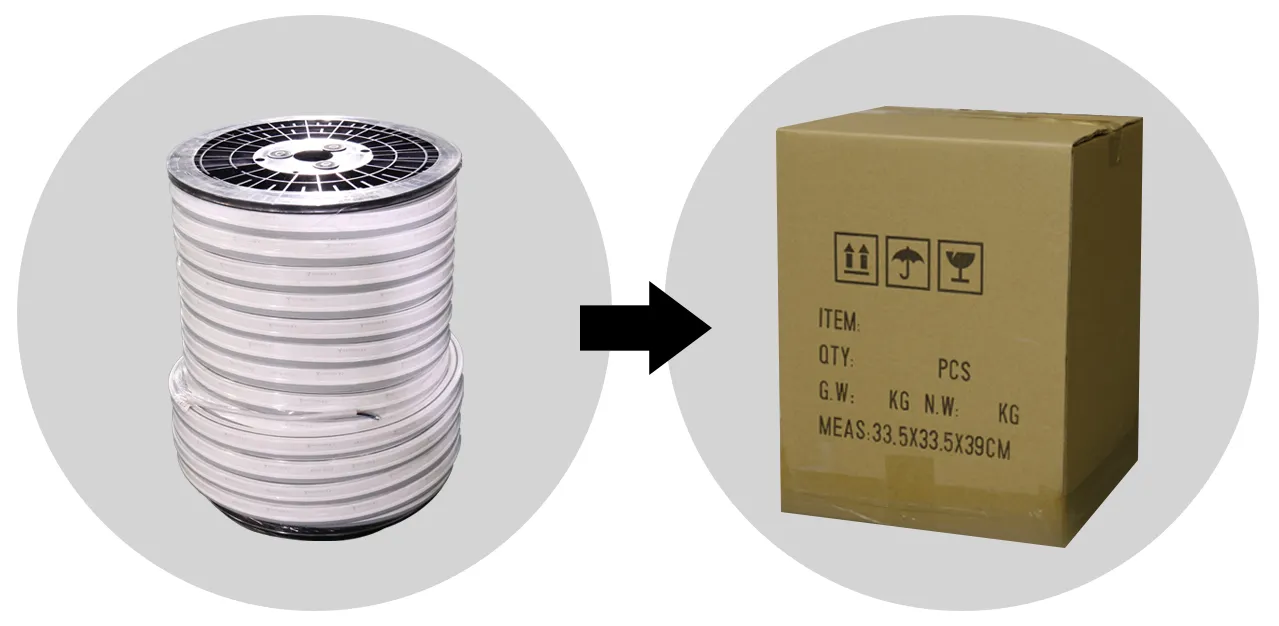

Packaging Customization
