360 Degree Round Dia 30mm RGB Led Light Strip 5050 Programmable LED Neon Tube Replacement

D30mm

SKU Code:WJ-SNF-D30

Size:D30mm Round

Bend Direction:Vertical Only

Min Bend:120mm

Material:Silicone

Color:Mono/RGB/Pixel

Voltage:12V, 24V

CRI:90

IP Rating:IP65

IK Rating:IK08

Product Details

Mono

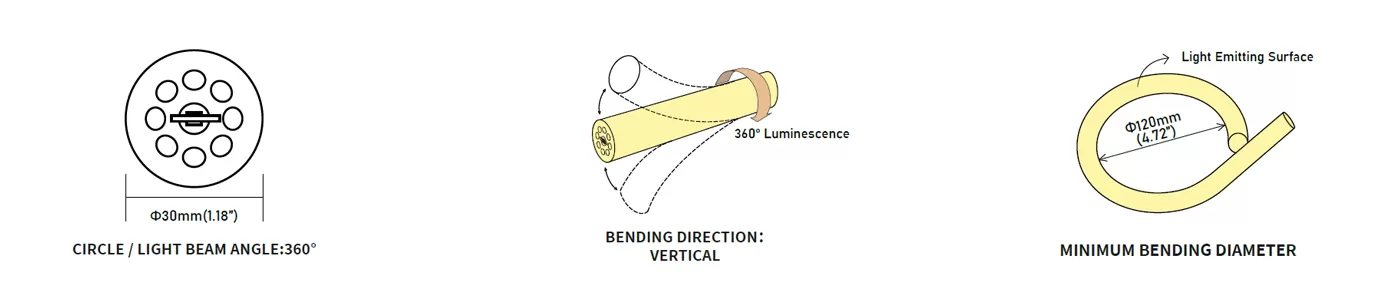

Structural Drawing & Bending Direction

Color	Warm White	Cool White	Red	Green	Blue	Yellow	Orange	Light Pink	Pink（Violet）	Purple
CCT / Wave:	2895K/585.1nm	10765K/472.2nm	1008K/624.3nm	8151K/526.2nm	465.3nm	1914K/588.6nm	1085K/604.8nm	1557K/634.4nm	568nm	451.6nm
LED Quantity:	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m
Unit Cut: 12V	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm
Unit Cut: 24V	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm
Watts/m: 24V	16.55 W	16.58 W	15.48 W	16.99 W	17.27 W	16.57 W	16.51 W	16.56 W	15.96 W	16.29 W
Lumen/m: 24V	1056.52 lm	979.79 lm	365.44 lm	1110.10 lm	157.47 lm	1051.55 lm	649.22 lm	845.61 lm	268.21 lm	198.22 lm
Max Loading: 12V/24V	5m	5m	5m	5m	5m	5m	5m	5m	5m	5m

PWM RGB

Structural Drawing & Bending Direction

SKU:WJ-SNF-D30-RGB-24V
Color Temp	Red: 625.0nm	White: 6500K (Color mixing)
	Green: 524.9nm
	Blue: 470.2nm
Watts/m(24V Flat	Red: 10.52 W	White: 34.08 W (Color mixing)
	Green: 11.98 W
	Blue: 12.85 W
Lumen/m(24V Flat)	Red: 220.91 lm	White: 684.94 lm (Color mixing)
	Green: 474.101m
	Blue: 95.76 lm
Unit Cut(24V)	5.56cm
Max Loading(24V)	5m
LED Quantity(m)	2×108 LEDs

Pixel RGB

Structural Drawing & Bending Direction

SKU:WJ-SNF-D30-D-RGB-24V
Color Temp	Red: 624.9nm	White: 6500K (Color mixing)
	Green: 527.4nm
	Blue: 470.3nm
Watts/m(24V Flat	Red: 14.57 W	White: 37.85 W (Color mixing)
	Green: 14.67 W
	Blue: 14.67 W
Lumen/m(24V Flat)	Red: 210.19 lm	White: 776.93 lm (Color mixing)
	Green: 543.261m
	Blue: 105.94 lm
Unit Cut(24V)	12.5cm
Max Loading(24V)	5m
LED Quantity(m)	2×112 LEDs + 16 ICs

PWM RGBW

Structural Drawing & Bending Direction

SKU:WJ-SNF-D30-RGBW-24V
Color Temp	Red: 623.4nm	White:583.8nm (Color mixing) RGBW:491.8nm
	Green: 525.5nm
	Blue: 470.1nm
Watts/m(24V Flat	Red: 10.63 W	White:11.09 W (Color mixing) RGBW:37.44 W
	Green: 10.66 W
	Blue: 10.06 W
Lumen/m(24V Flat)	Red: 286.43 lm	White:770.53 lm (Color mixing) RGBW:1389.4lm
	Green: 584.451m
	Blue: 108.72 lm
Unit Cut(24V)	6.25cm
Max Loading(24V)	5m
LED Quantity(m)	2×112 LEDs

Pixel RGBW

Structural Drawing & Bending Direction

SKU:WJ-SNF-D30-D-RGBW-12V
Color Temp	Red: 623.8nm	White:58.6nm (Color mixing) RGBW:580.6nm
	Green: 531.0nm
	Blue: 470.5nm
Watts/m(24V Flat	Red: 8.90 W	White:16.22 W (Color mixing) RGBW:36.69 W
	Green: 8.83 W
	Blue: 8.84 W
Lumen/m(24V Flat)	Red: 121.17 lm	White:831.00 lm (Color mixing) RGBW:1256.32 lm
	Green: 318.241m
	Blue: 88.52 lm
Unit Cut(12V)	2.78cm
Max Loading(12V)	5m
LED Quantity(m)	2×108 LEDs + 36ICs

PDF Download File

D30 PWM RGBW

Download

D30 SPI RGB

Download

D30 SPI RGBW

Download

D30 Mono

Download

D30 PWM RGB

Download

Video

Application

The large-sized LED Flexible Neon Light Strip with a circular diameter of 30mm exhibits outstanding characteristics in outdoor applications. Its robust waterproof performance ensures stable operation in harsh weather conditions, making it suitable for large-scale outdoor decorations such as plaza landscapes and architectural contour lighting. High brightness and uniform lighting effects make it a prominent focal point in outdoor environments, even visible from a distance. The circular design injects a modern and unique atmosphere into outdoor spaces, creating captivating light displays at night.

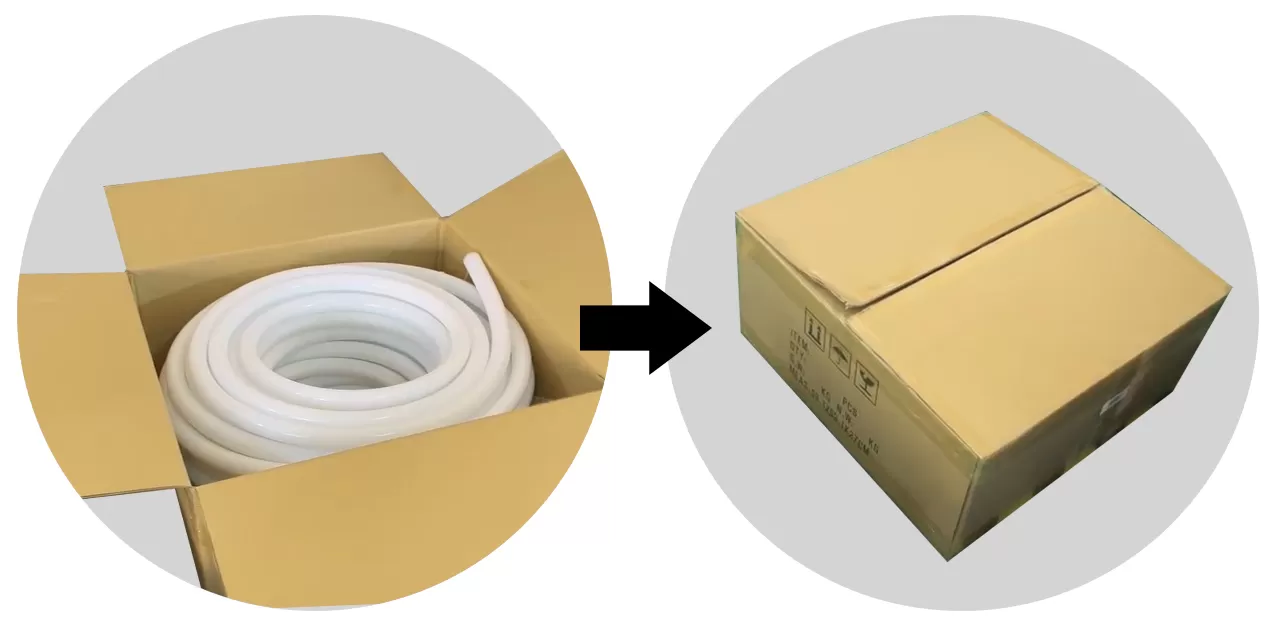

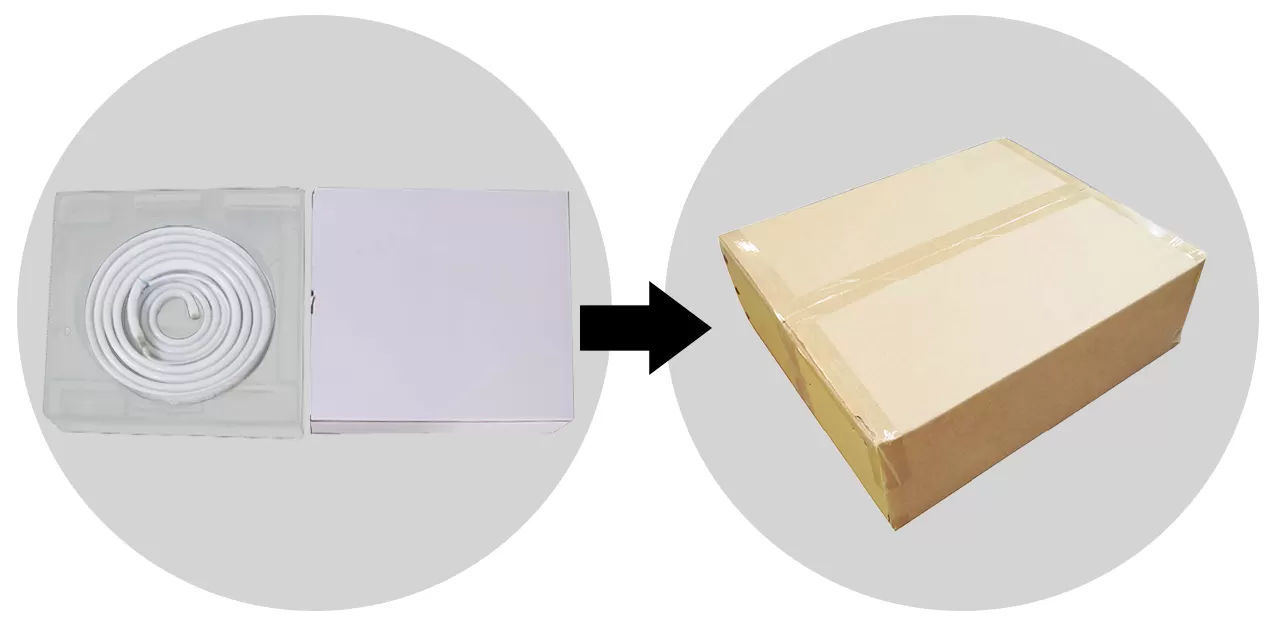

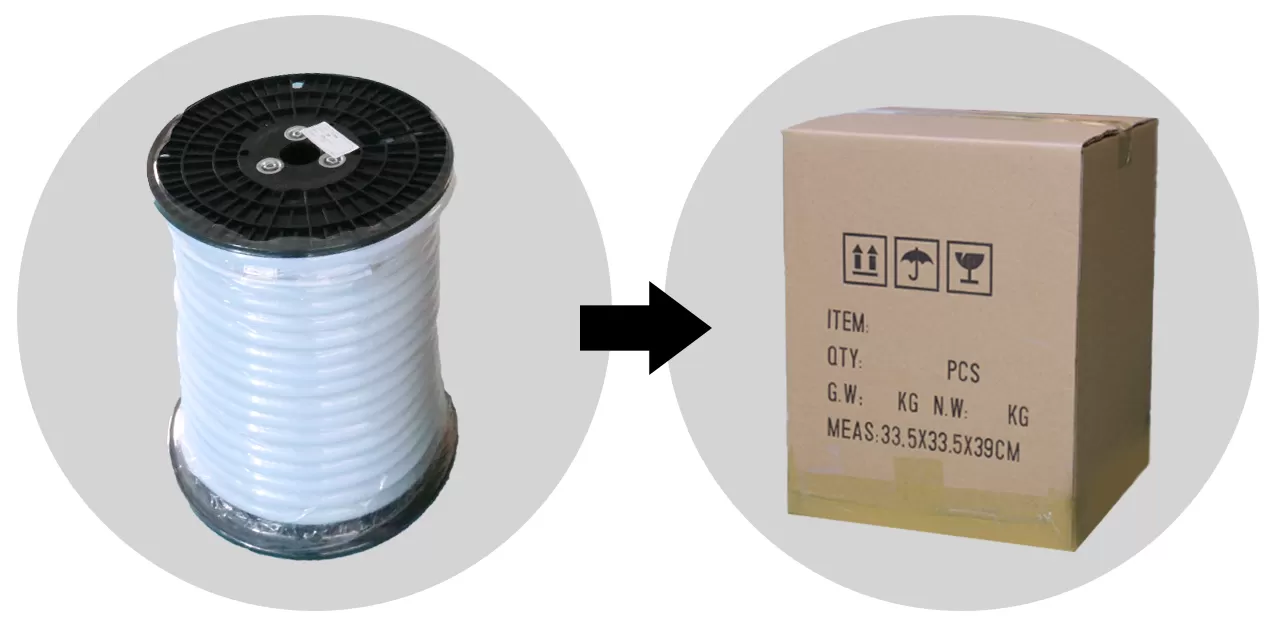

Packaging Customization
