12x25mm Outdoor Building Decor Garden Lighting Silicone LED Light Strip Flex Neon LED Tape

12x25mm

SKU Code:WJ-SNF-1225

Size:12x25mm Dome

Bend Direction:Horizontal Only

Min Bend:120mm

Material:Silicone

Color:Mono/RGB/Pixel

Voltage:12V, 24V

CRI:90

IP Rating:IP65

IK Rating:IK08

Product Details

PDF Download File

Video

Application

Packaging Customization

Product Details

Mono

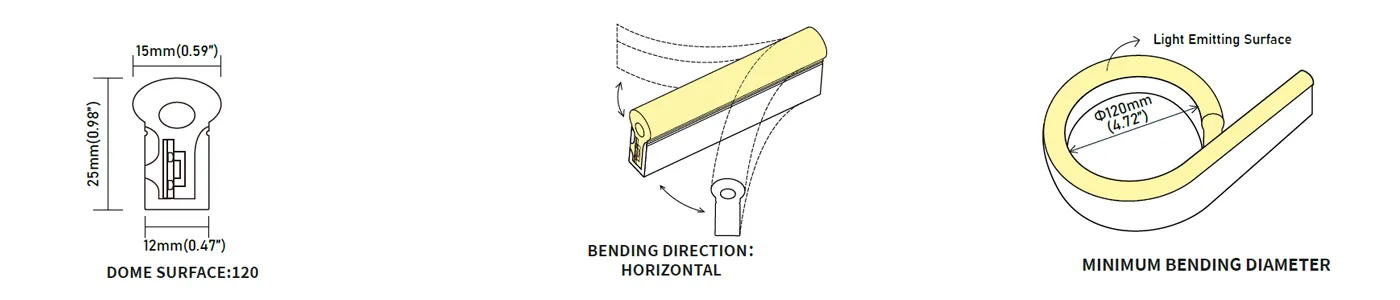

Structural Drawing & Bending Direction

Color	Warm White	Cool White	Red	Green	Blue	Yellow	Orange	Light Pink	Pink（Violet）	Purple
CCT / Wave:	2729K/585.3nm	7836K/471.5nm	1007K/622.4nm	8135K/526.2nm	465.3nm	1866K/589.1nm	1076K/605.0nm	1497K/619.4nm	568nm	447.1nm
LED Quantity:	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m
Unit Cut: 12V	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm
Unit Cut: 24V	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm
Watts/m: 24V	8.41W	8.39 W	7.81 W	8.55 W	8.78 W	8.41 W	8.38 W	8.39 W	8.07 W	8.20 W
Lumen/m: 24V	243.39 lm	252.95 lm	115.59 lm	272.01 lm	38.21 lm	307.11 lm	187.22 lm	248.02lm	71.87 lm	44.40 lm
Max Loading: 12V/24V	5m	5m	5m	5m	5m	5m	5m	5m	5m	5m

PWM RGB

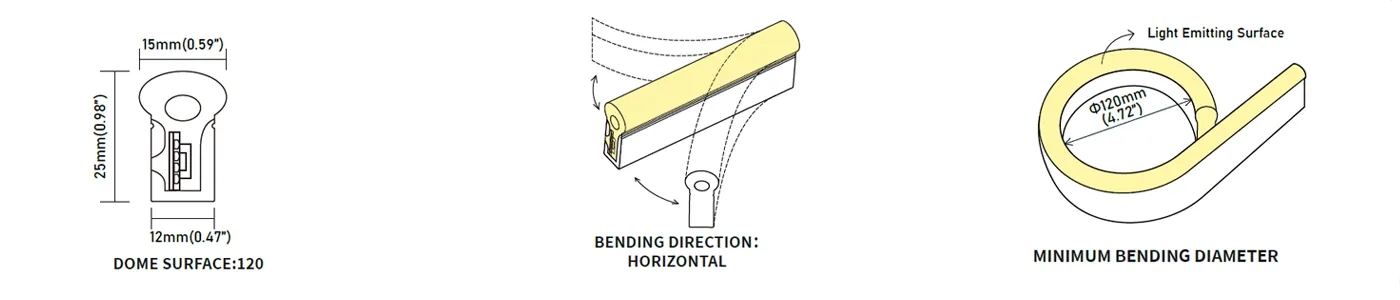

Structural Drawing & Bending Direction

SKU:WJ-SNF-1225-RGB-24V
Color Temp	Red: 624.3nm	White: 6500K (Color mixing)
	Green: 524.6nm
	Blue: 470.1nm
Watts/m(24V Flat	Red: 3.54 W	White: 12.07 W (Color mixing)
	Green: 4.22 W
	Blue: 4.39 W
Lumen/m(24V Flat)	Red: 49.28 lm	White: 151.7 lm (Color mixing)
	Green: 95.481m
	Blue: 17.55 lm
Unit Cut(24V)	8.33cm
Max Loading(24V)	5m
LED Quantity(m)	72 LEDs

Pixel RGB

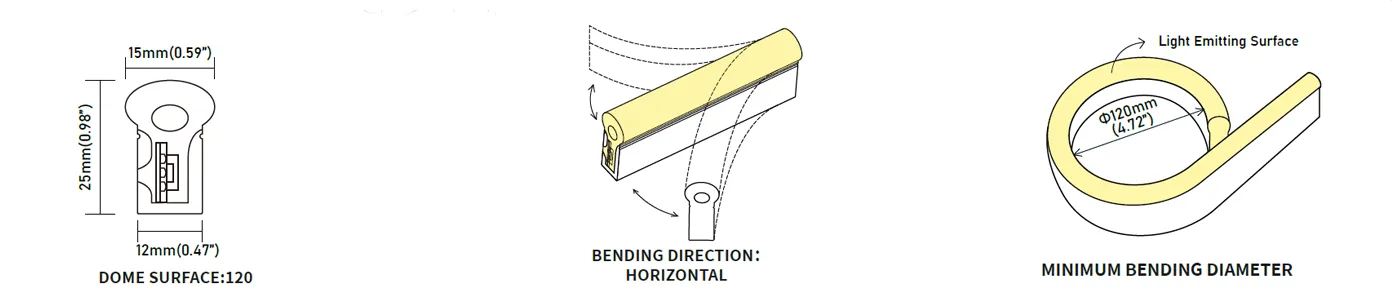

Structural Drawing & Bending Direction

SKU:WJ-SNF-1225-D-RGB-24V
Color Temp	Red: 624.8nm	White: 6500K (Color mixing)
	Green: 524.8nm
	Blue: 469.6nm
Watts/m(24V Flat	Red: 4.82 W	White: 11.98 W (Color mixing)
	Green: 4.90 W
	Blue: 5.15 W
Lumen/m(24V Flat)	Red: 45.11 lm	White: 124.25 lm (Color mixing)
	Green: 74.741m
	Blue: 14.35 lm
Unit Cut(24V)	10cm
Max Loading(24V)	5m
LED Quantity(m)	60 LEDs + 10ICs IC code: SM16703P (compatible with all lCs and controllers in the WS2811 1804,and 1809 series）

PDF Download File

1225 PWM RGB

Download

1225 SPI RGB

Download

1225 Dome Mono

Download

Video

Application

The 12*25mm LED Neon Flex exhibits unique characteristics in different applications. In commercial lighting, its larger size provides strong lighting effects for large spaces such as shopping malls and hotels, attracting the attention of customers. In architectural decoration, it can skillfully outline building contours, adding a unique modern touch to structures. In landscape design, its generous dimensions give outdoor spaces a more pronounced lighting effect, creating a visually striking landscape.
