12x6mm Multicolor waterproof luces decoracion flexible 24v rgb pixel rope light neon flex led strip

12x6mm

SKU Code:WJ-SNF-1206

Size:6x12mm Flat/Dome

Bend Direction:Vertical Only

Min Bend:120mm

Material:Silicone

Color:Mono/RGB/Pixel

Voltage:12V, 24V

CRI:90

IP Rating:IP65

IK Rating:IK08

Product Details

Mono

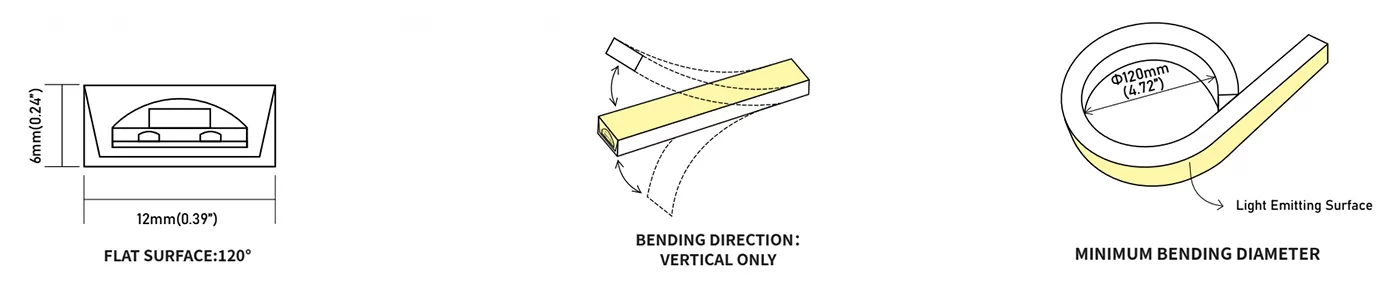

Structural Drawing & Bending Direction

Color	Warm White	Cool White	Red	Green	Blue	Yellow	Orange	Light Pink	Pink（Violet）	Purple
CCT / Wave:	2851K/584.5nm	9325K/473.9nm	1007K/623.1nm	8011K/525.8nm	464.7nm	1877K/588.9nm	1086K/604.7nm	1517K/625.9nm	568nm	449.6nm
LED Quantity:	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m
Unit Cut: 12V	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm
Unit Cut: 24V	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm
Watts/m: 24V	8.34W	8.41 W	7.76 W	8.54 W	8.71 W	8.24 W	8.35 W	8.36 W	8.06 W	8.20 W
Lumen/m: 24V	188.27 lm	187.68 lm	72.58 lm	198.77 lm	27.09 lm	204.30 lm	135.98 lm	173.46 lm	61.33 lm	34.44 lm
Max Loading: 12V/24V	5m	5m	5m	5m	5m	5m	5m	5m	5m	5m

PWM RGB

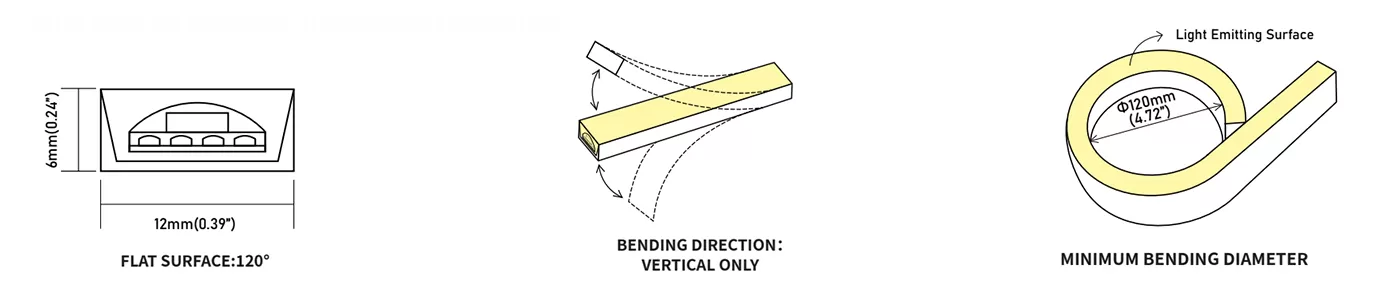

Structural Drawing & Bending Direction

SKU:WJ-SNF-1206-RGB-24V
Color Temp	Red: 623.0nm	White: 6500K (Color mixing)
	Green: 520.2nm
	Blue: 468.4nm
Watts/m(24V Flat	Red: 6.57 W	White: 18.56 W (Color mixing)
	Green: 6.60 W
	Blue: 6.23 W
Lumen/m(24V Flat)	Red: 41.36 lm	White: 146.58 lm (Color mixing)
	Green: 109.971m
	Blue: 16.45 lm
Unit Cut(24V)	5.56cm
Max Loading(24V)	5m
LED Quantity(m)	108 LEDs

Pixel RGB

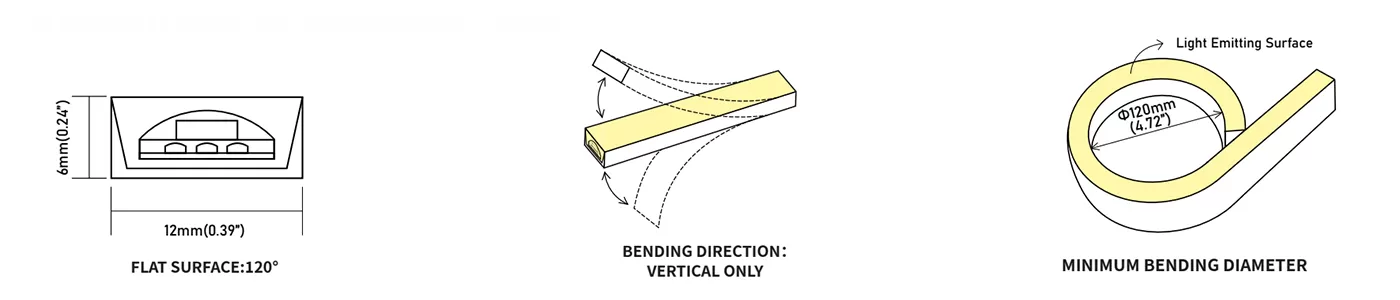

Structural Drawing & Bending Direction

SKU:WJ-SNF-1206-D-RGB-24V
Color Temp	Red: 621.5nm	White: 6500K (Color mixing)
	Green: 520.6nm
	Blue: 469.1nm
Watts/m(24V Flat	Red: 6.94 W	White: 18.42 W (Color mixing)
	Green: 7.25 W
	Blue: 7.00 W
Lumen/m(24V Flat)	Red: 38.72 lm	White: 175.53 lm (Color mixing)
	Green: 130.451m
	Blue: 18.75 lm
Unit Cut(24V)	5.56cm
Max Loading(24V)	5m
LED Quantity(m)	108 LEDs + 18 ICs IC code: SM16703P (compatible with all lCs and controllers in the WS2811 1804,and 1809 series）

PDF Download File

1206 Flat SPI RGB

Download

1206 PWM RGB

Download

1206 Flat Mono

Download

Video

Application

The 6x12mm LED flexible neon light strips, excel in diverse indoor applications. Ideal for creating captivating accent lighting, these strips seamlessly integrate into spaces like retail displays, enhancing the visual appeal of showcased products. Their flexibility and vibrant color options make them perfect for architectural highlights, illuminating signage, and adding a contemporary touch to interior decor. Whether outlining furniture or accentuating architectural features, the 6x12mm size provides a sleek and stylish solution for elevating various indoor environments.
