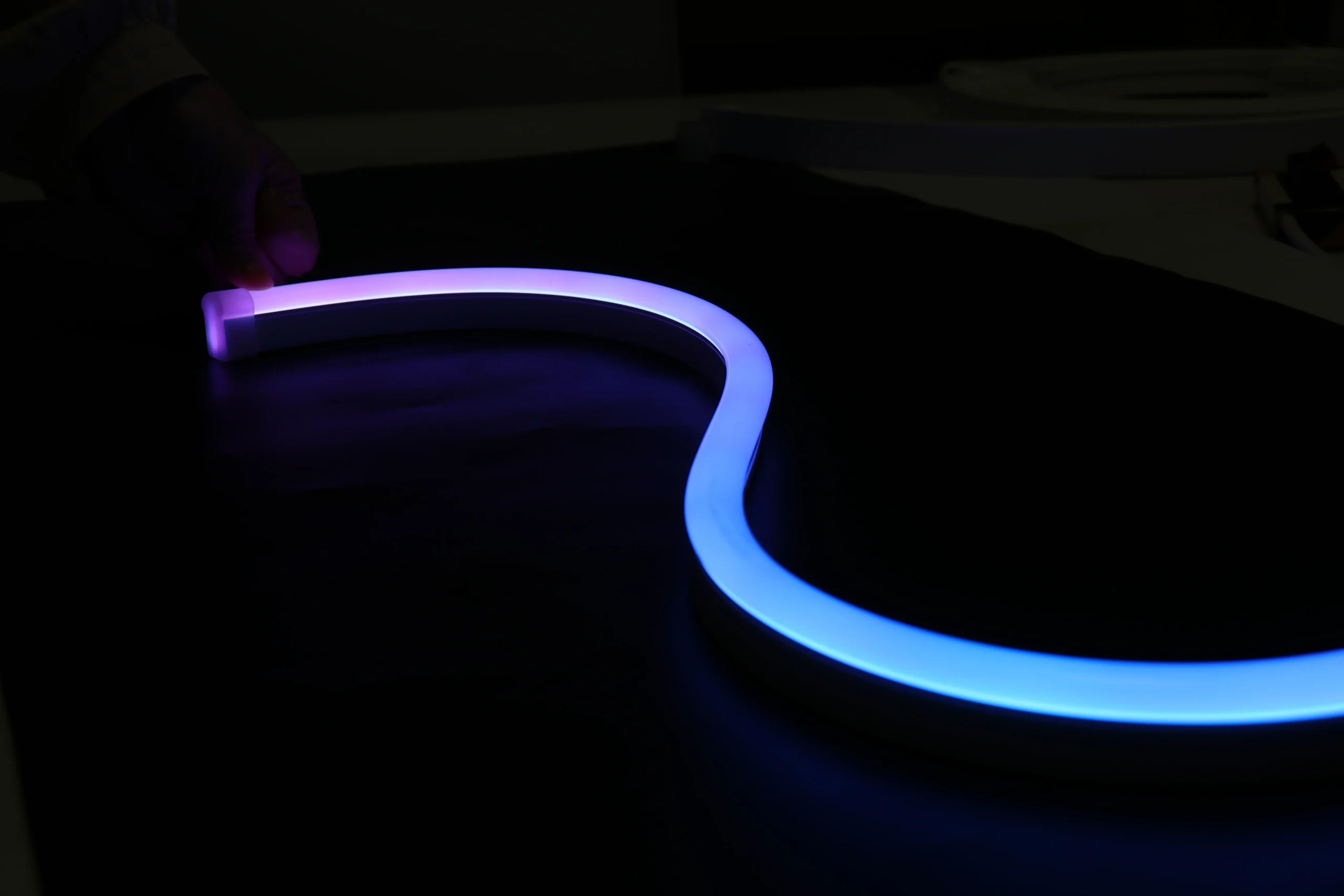

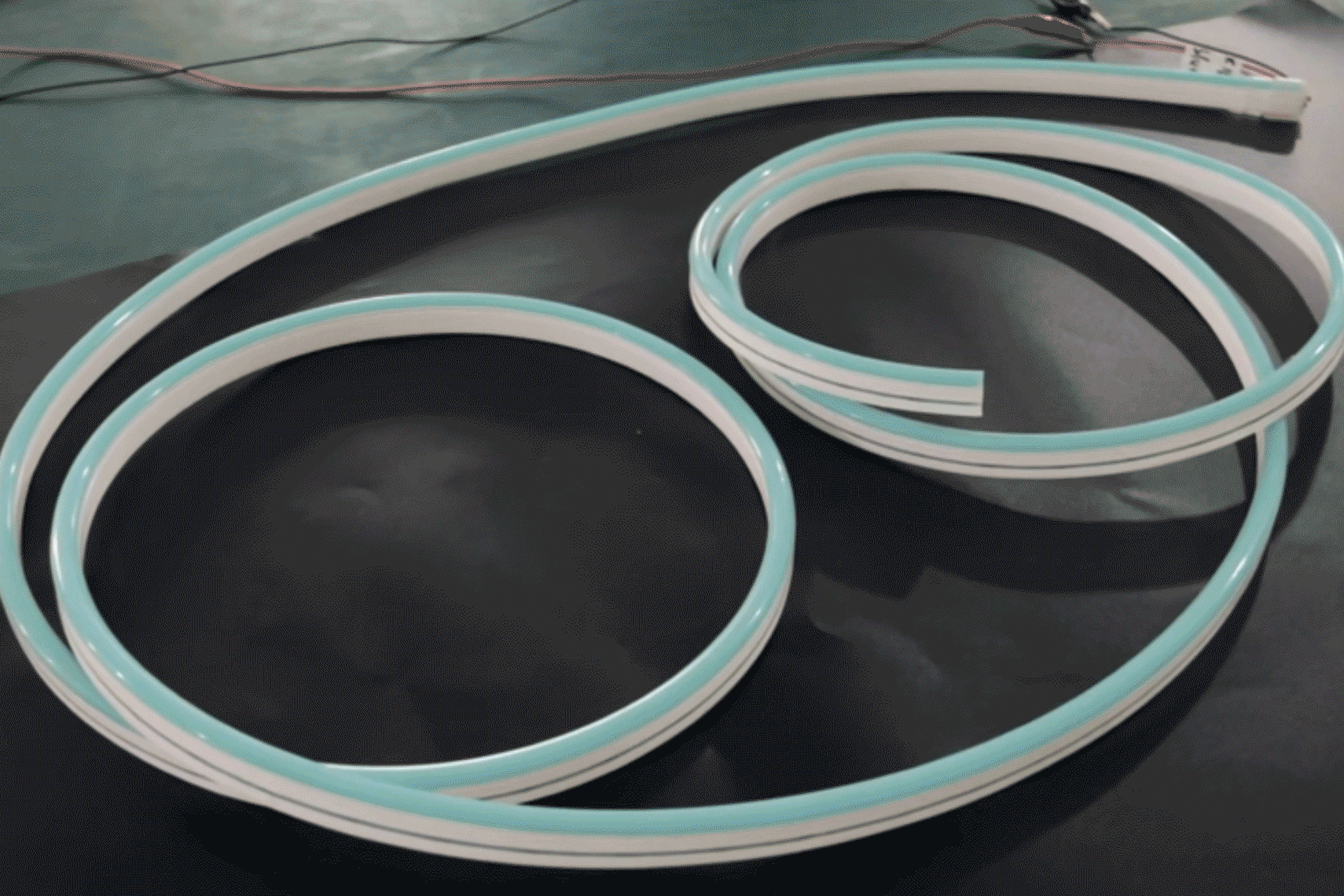

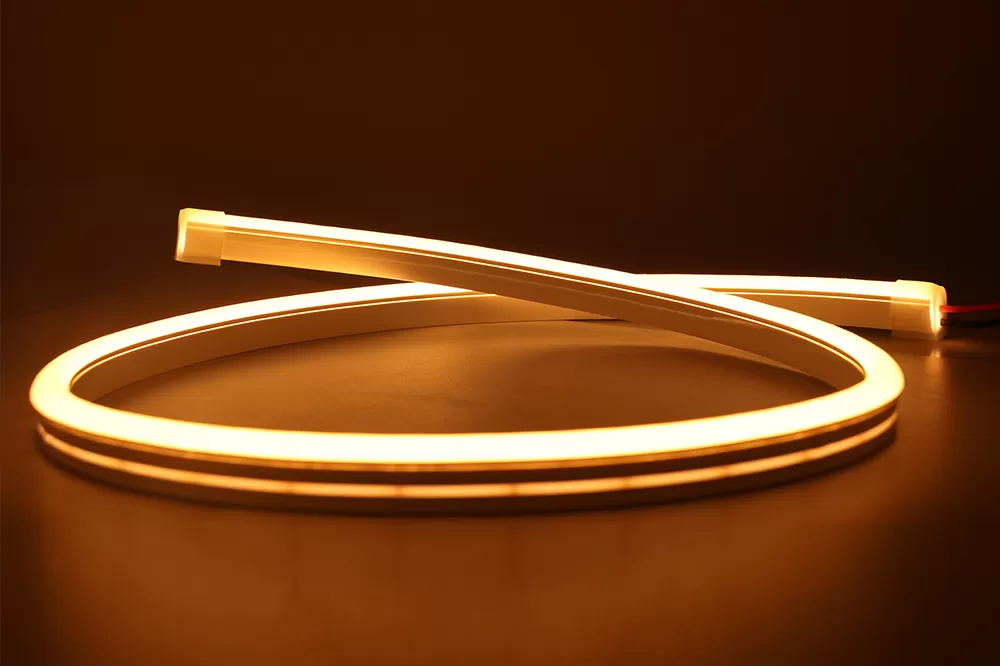

8X16Mm Multicolor Waterproof Luces Decoracion Flexible 24V Rgb Pixel Rope Light Neon Flex Led Strip

8x16mm

SKU Code:WJ-SNF-0816
Size:8x16mm
Bend Direction:Horizontal Only
Min Bend:120mm
Material:Silicone
Color:Mono/RGB/Pixel
Voltage:12V, 24V
CRI:90
IP Rating:IP65
IK Rating:IK08

Product Details

Mono
Structural Drawing & Bending Direction
Mono
Color Warm White Cool White Red Green Blue Yellow Orange Light Pink Pink(Violet) Purple
CCT / Wave: 2841K/584.8nm 9041K/473.7nm 1007K/622.7nm 8169K/526.1nm 464.7nm 1882K/588.9nm 1087K/604.8nm 1511K/624.6nm 568nm 449.3nm
LED Quantity: 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m
Unit Cut: 12V 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm
Unit Cut: 24V 5cm 5cm 5cm 5cm 5cm 5cm 5cm 5cm 5cm 5cm
Watts/m: 24V 8.39W 8.36 W 7.79 W 8.49 W 8.73 W 8.38 W 8.38 W 8.36 W 8.06 W 8.30 W
Lumen/m: 24V 433.72 lm 388.83 lm 164.89 lm 427.37 lm 59.03 lm 478.82 lm 283.53 lm 390.46 lm 120.36 lm 77.97 lm
Max Loading:
12V/24V
5m 5m 5m 5m 5m 5m 5m 5m 5m 5m
PWM RGB

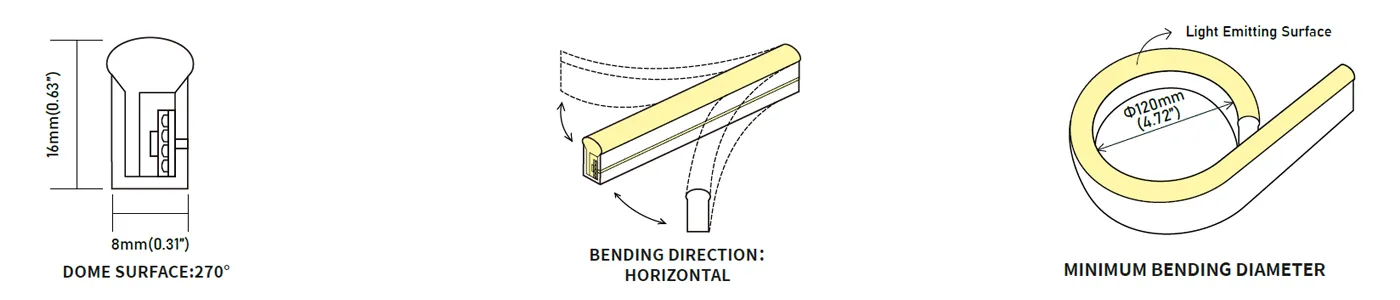

Structural Drawing & Bending Direction
PWM RGB
SKU:WJ-SNF-0816-RGB-24V
Color Temp Red: 623.6nm White: 6500K
(Color mixing)
Green: 520.2nm
Blue: 468.7nm
Watts/m(24V Flat Red: 6.28 W White: 18.84 W
(Color mixing)
Green: 6.48 W
Blue: 5.99 W
Lumen/m(24V Flat) Red: 59.76 lm White: 237.26 lm
(Color mixing)
Green: 172.331m
Blue: 26.90 lm
Unit Cut(24V) 5.56cm
Max Loading(24V) 5m
LED Quantity(m) 108 LEDs

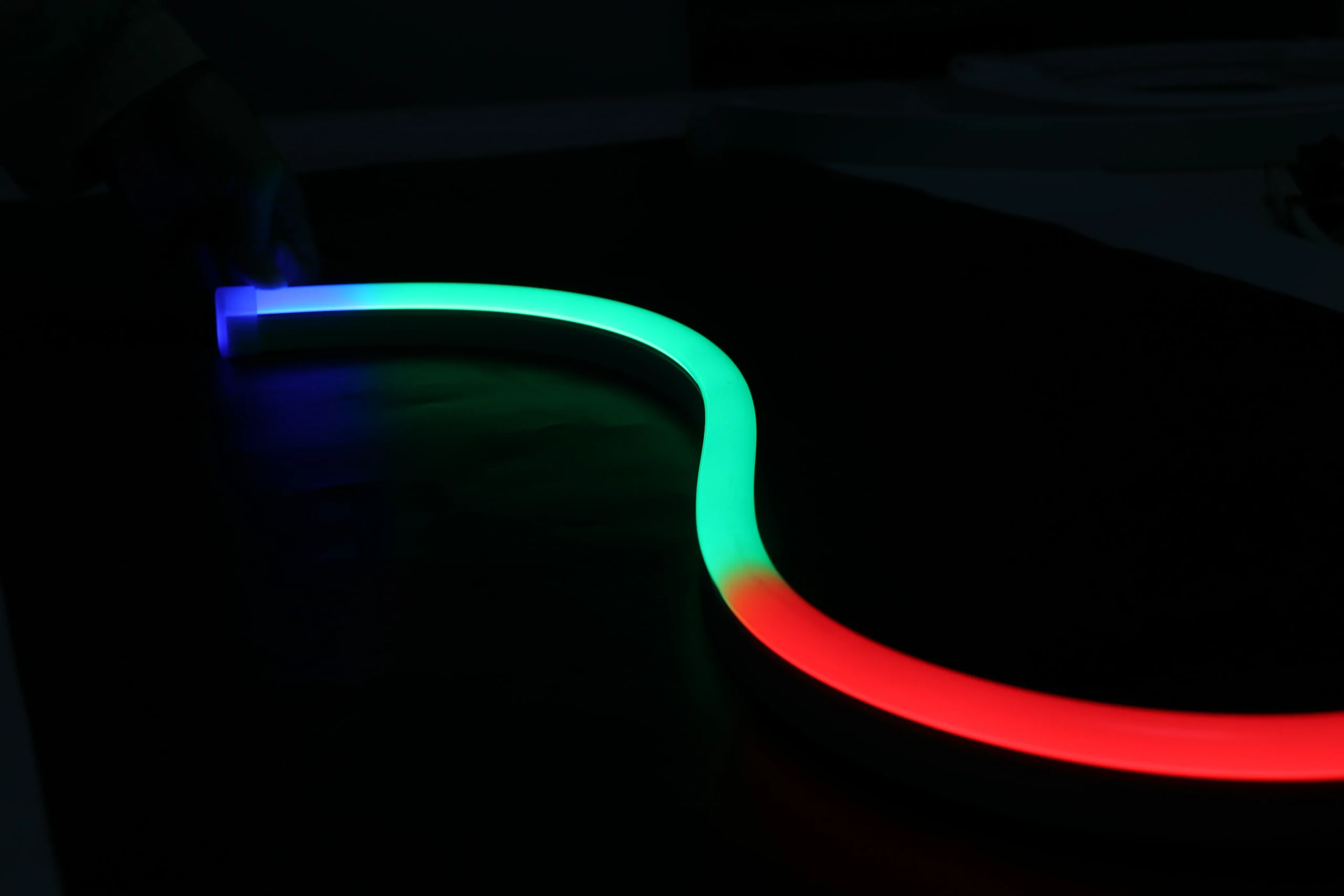

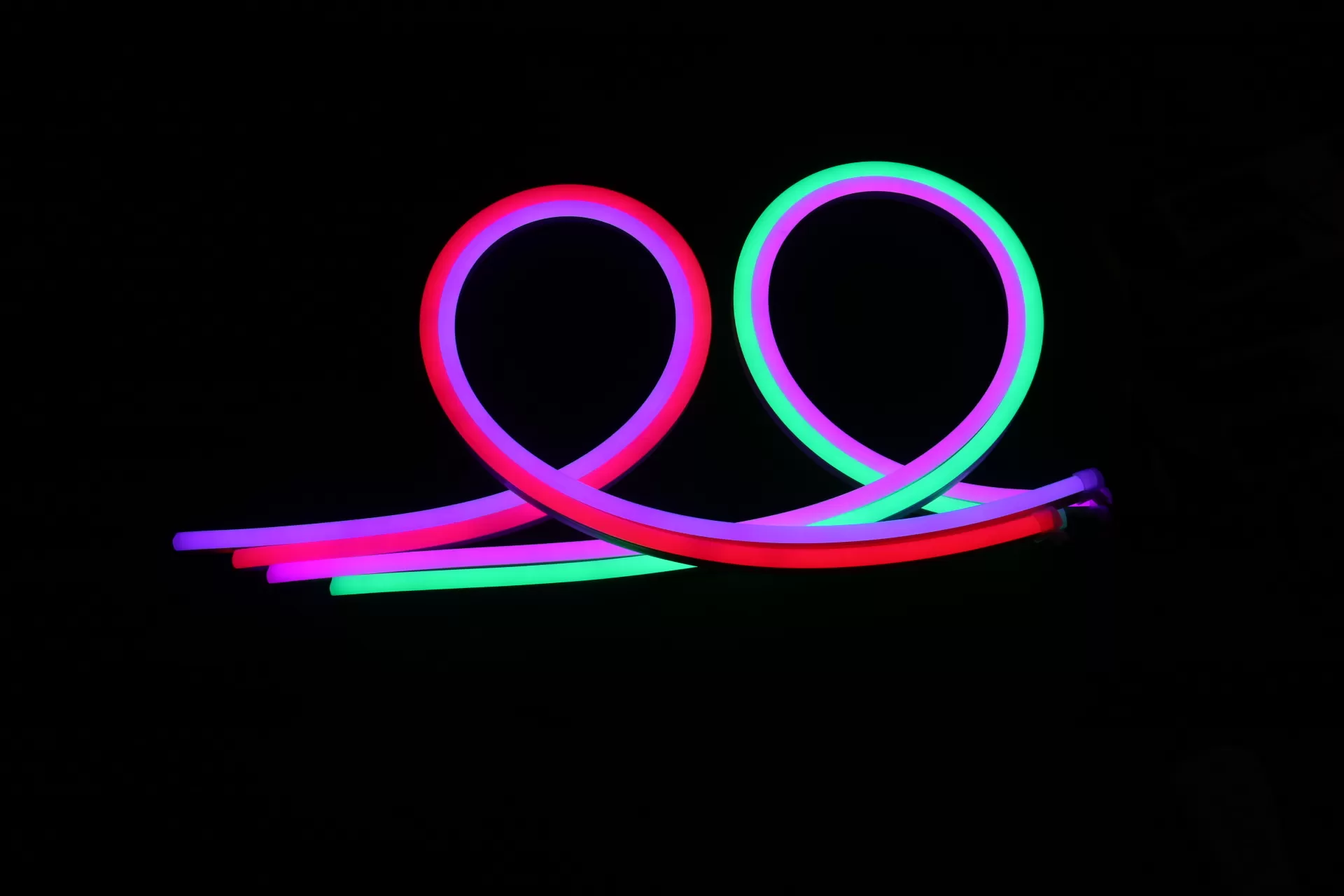

Pixel RGB

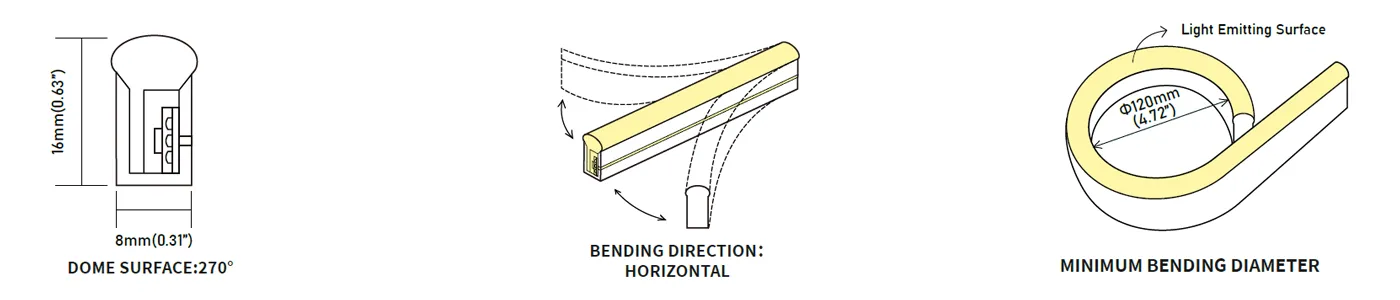

Structural Drawing & Bending Direction
Pixel RGB
SKU:WJ-SNF-0816-D-RGB-24V
Color Temp Red: 623.2nm White: 6500K
(Color mixing)
Green: 519.6nm
Blue: 468.4nm
Watts/m(24V Flat Red: 6.94 W White: 18.67 W
(Color mixing)
Green: 7.29 W
Blue: 7.00 W
Lumen/m(24V Flat) Red: 53.06 lm White: 220.02 lm
(Color mixing)
Green: 167.381m
Blue: 25.24 lm
Unit Cut(24V) 5.56cm
Max Loading(24V) 5m
LED Quantity(m) 108 LEDs + 18 ICs     IC code: SM16703P
(compatible with all lCs and controllers in the WS2811
1804,and 1809 series)

PDF Download File

0816 mono
Download
0816 RGB
Download
0816 Pixel RGB
Download

Video

8*16mm Neon Flex

Application

The 8x16mm LED flexible neon light strips, excel in diverse indoor applications. Ideal for creating captivating accent lighting, these strips seamlessly integrate into spaces like retail displays, enhancing the visual appeal of showcased products. Their flexibility and vibrant color options make them perfect for architectural highlights, illuminating signage, and adding a contemporary touch to interior decor. Whether outlining furniture or accentuating architectural features, the 8x12mm size provides a sleek and stylish solution for elevating various indoor environments.

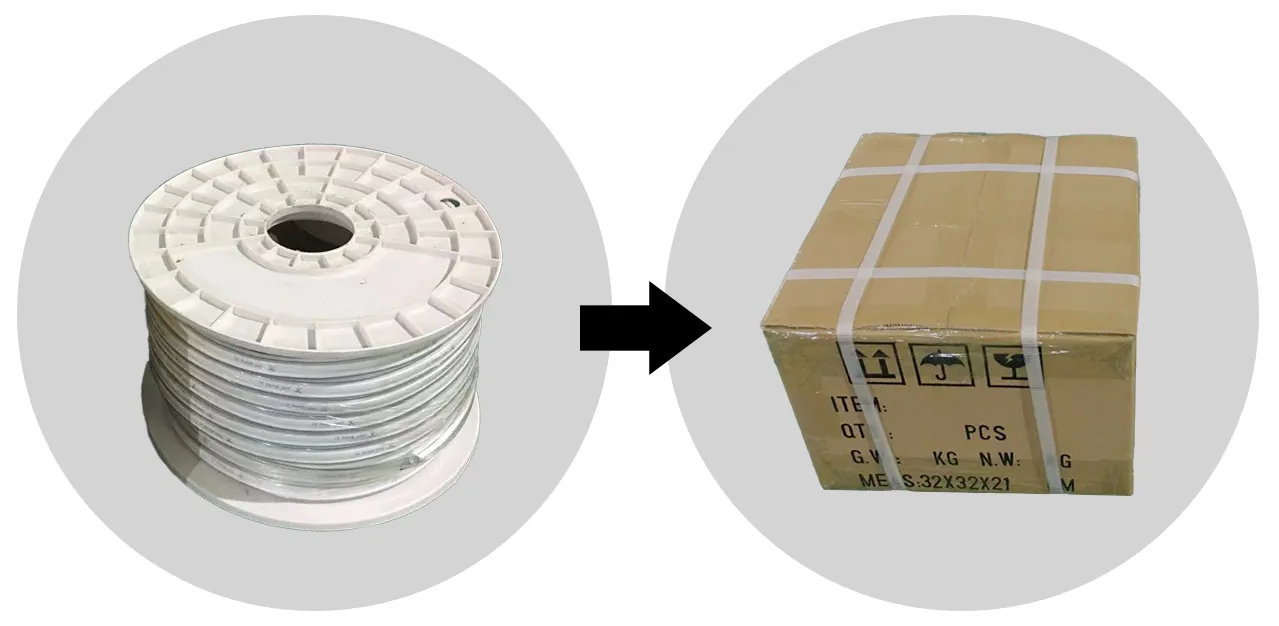

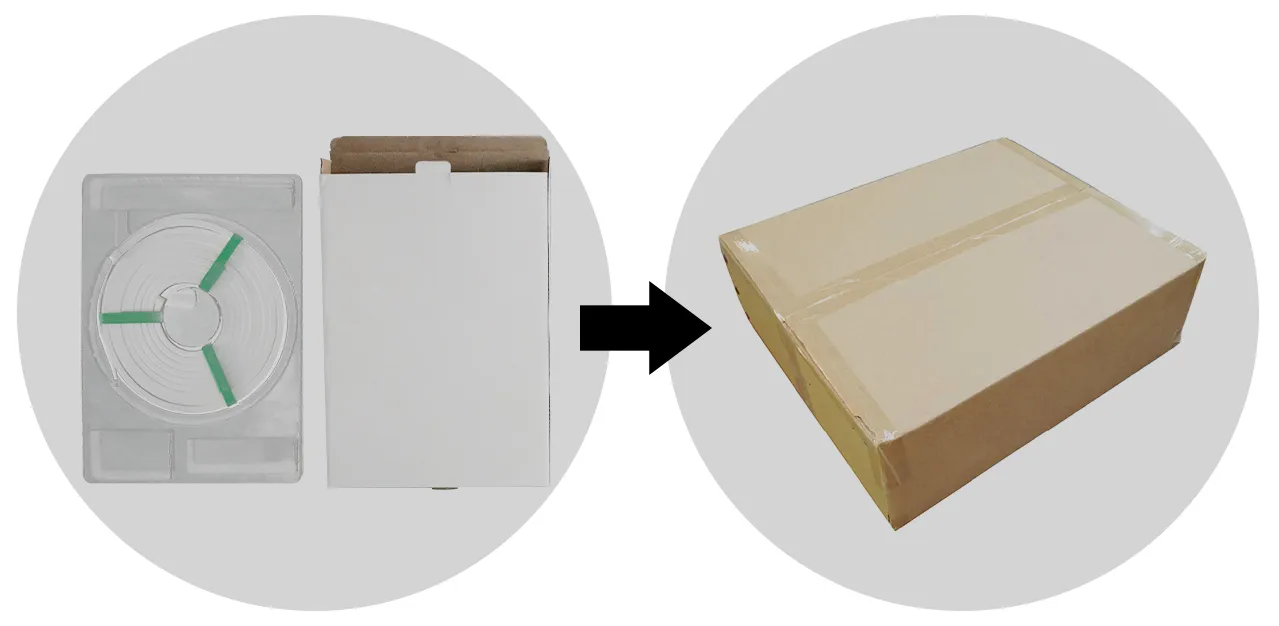

Packaging Customization
