Ws2811 Rgb Pixel Tiras 10x10mm Led Addressable Strip Rope Flex Flexible Neon Light

10x10mm

SKU Code:WJ-SNF-1010
Size:10x10mm Dome/Flat
Bend Direction:Vertical Only
Min Bend:120mm
Material:Silicone
Color:Mono/RGB/Pixel
Voltage:12V, 24V
CRI:90
IP Rating:IP65, IP68
IK Rating:IK08

Product Details

Mono

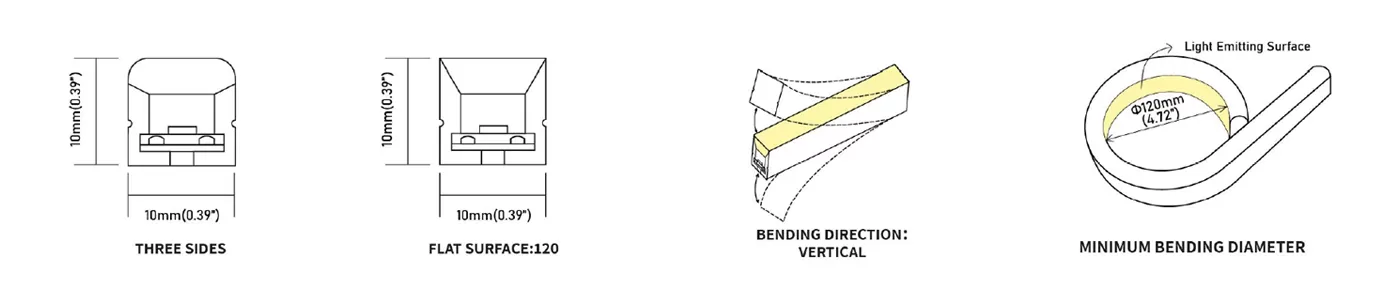

Structural Drawing & Bending Direction
Mono
Color Warm White Cool White Red Green Blue Yellow Orange Light Pink Pink(Violet) Purple
CCT / Wave: 2894K/584.7nm 10302K/472.1nm 1007K/622.9nm 8187K/526.0nm 464.6nm 1909K/588.5nm 1102K/604.8nm 1535K/637.4nm 568nm 452.2nm
LED Quantity: 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m 120 LEDs/m
Unit Cut: 12V 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm 2.5cm
Unit Cut: 24V 5cm 5cm 5cm 5cm 5cm 5cm 5cm 5cm 5cm 5cm
Watts/m: 24V 8.40W 8.39 W 7.89 W 8.45 W 8.74 W 8.27 W 8.37 W 8.30 W 7.94 W 8.08 W
Lumen/m: 24V 518.97 lm 465.14 lm 205.3 lm 525.20 lm 70.86 lm 579.46 lm 361.79 lm 459.97 lm 142.95 lm 89.74 lm
Max Loading:
12V/24V
5m 5m 5m 5m 5m 5m 5m 5m 5m 5m
PWM RGB
Structural Drawing & Bending Direction
PWM RGB
SKU:WJ-SNF-1010-RGB-24V
Color Temp Red: 622.9nm White: 6500K
(Color mixing)
Green: 520.0nm
Blue: 468.5nm
Watts/m(24V Flat Red: 6.53 W White: 18.53 W
(Color mixing)
Green: 6.50 W
Blue: 6.15 W
Lumen/m(24V Flat) Red: 96.95 lm White: 359.85 lm
(Color mixing)
Green: 268.961m
Blue: 40.50 lm
Unit Cut(24V) 5.56cm
Max Loading(24V) 5m
LED Quantity(m) 108 LEDs

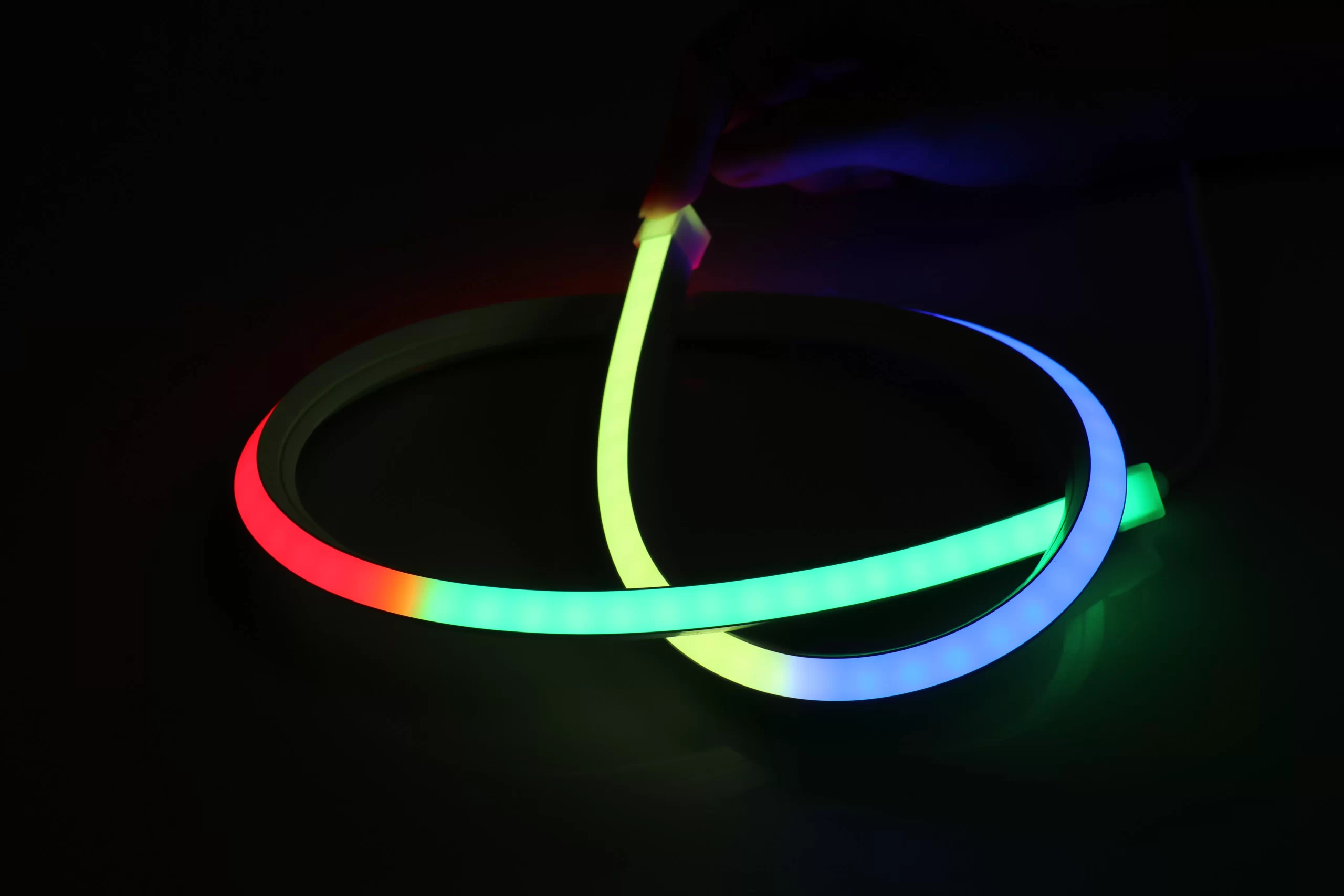

Pixel RGB

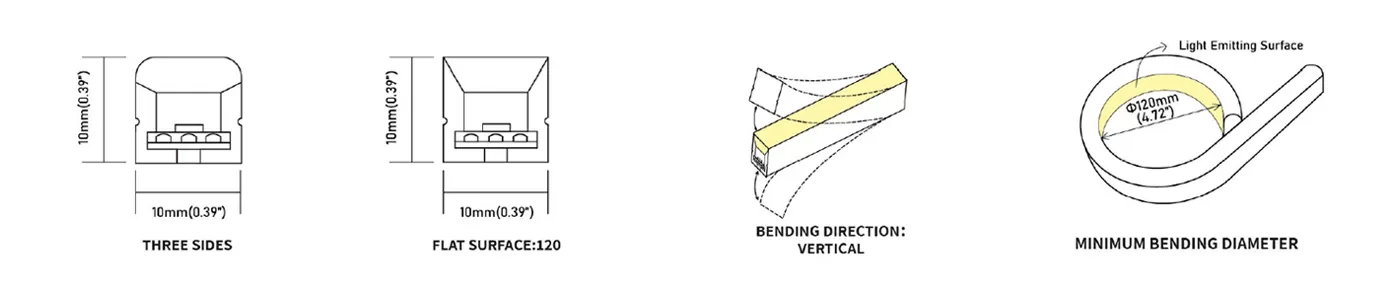

Structural Drawing & Bending Direction
Pixel RGB
SKU:WJ-SNF-1010-D-RGB-24V
Color Temp Red: 623.0nm White: 6500K
(Color mixing)
Green: 520.1nm
Blue: 468.2nm
Watts/m(24V Flat Red: 6.91 W White: 18.26 W
(Color mixing)
Green: 7.19 W
Blue: 6.98 W
Lumen/m(24V Flat) Red: 93.92 lm White: 345.89 lm
(Color mixing)
Green: 264.51m
Blue: 41.35 lm
Unit Cut(24V) 5.56cm
Max Loading(24V) 5m
LED Quantity(m) 108 LEDs + 18 ICs     IC code: SM16703P
(compatible with all lCs and controllers in the WS2811
1804,and 1809 series)

PDF Download File

1010 PWM RGB
Download
1010 Flat Mono
Download
1010 Flat SPI RGB
Download

Video

10*10mm Neon Flex

Application

The 10*10mm LED Flexible Neon Light Strip, when used indoors, features a compact size that lends itself to various applications. Its flexibility allows seamless integration into architectural elements, retail displays, and residential interiors. The refined design enhances the aesthetic appeal of indoor spaces, maintaining high energy efficiency and providing room for customized lighting designs.

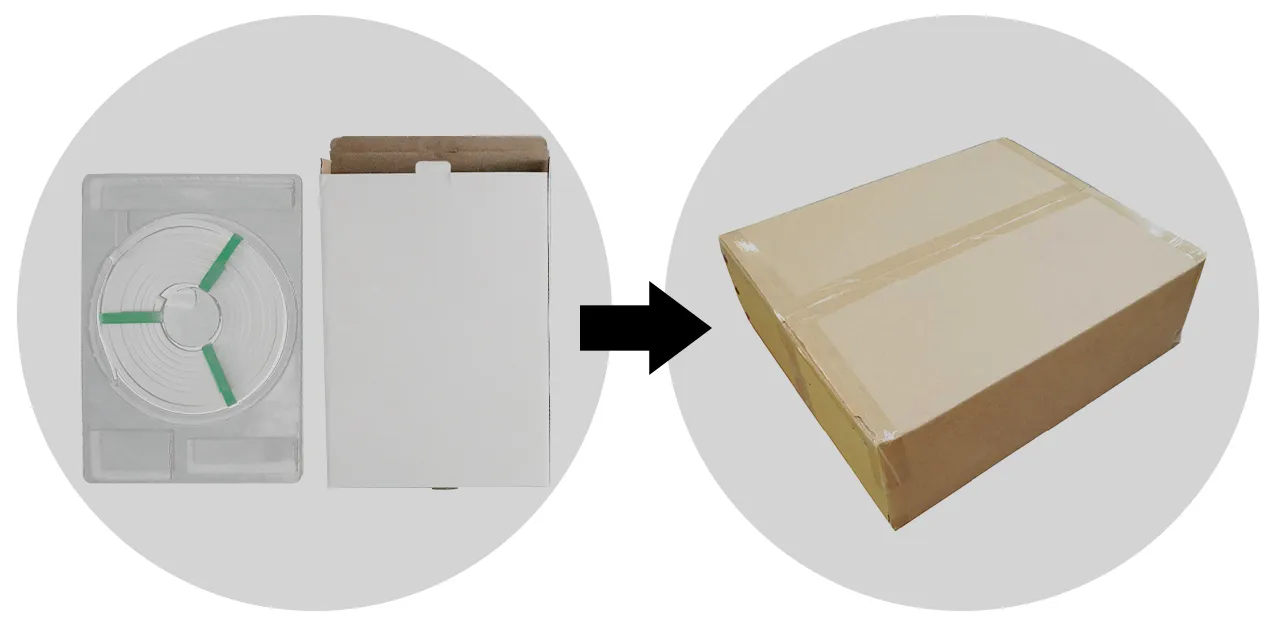

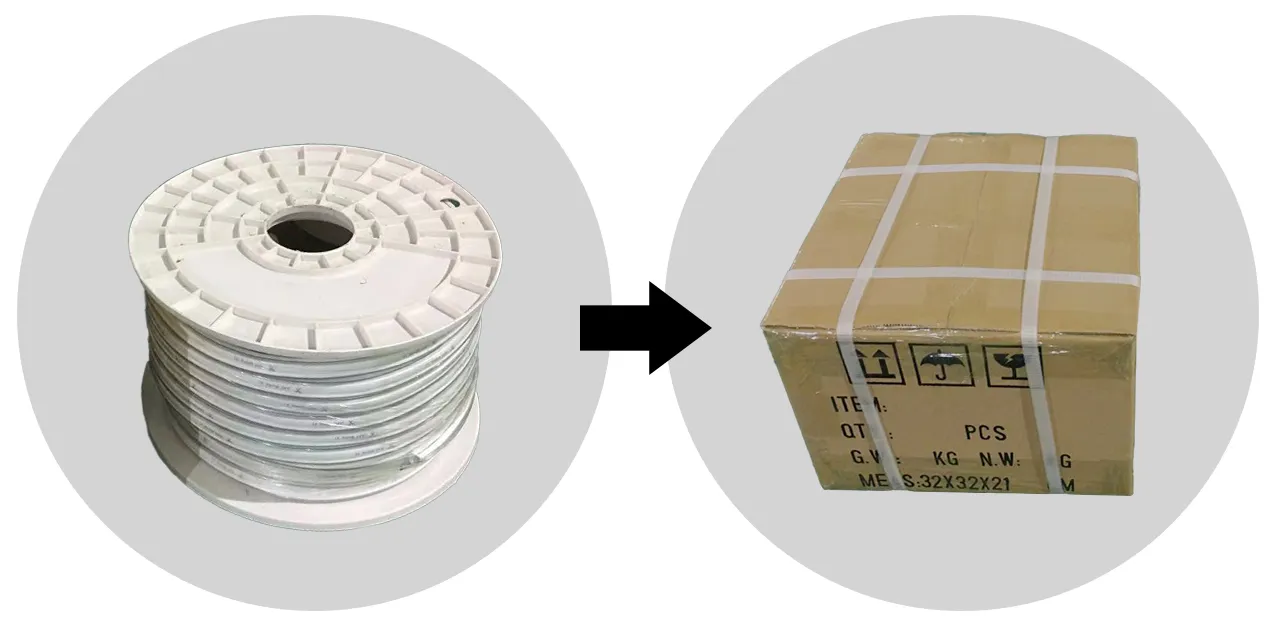

Packaging Customization
