Round Diameter 20Mm Silicone Neon Light Beauty Led Neon Flexible Tube 320 Degree

D20a mm

SKU Code:WJ-SNF-D20a

Size:Dia 20mm 320 degree

Bend Direction:Vertical Only

Min Bend:120mm

Material:Silicone

Color:Mono/RGB/Pixel

Voltage:12V, 24V

CRI:90

IP Rating:IP65

IK Rating:IK08

Product Details

Mono

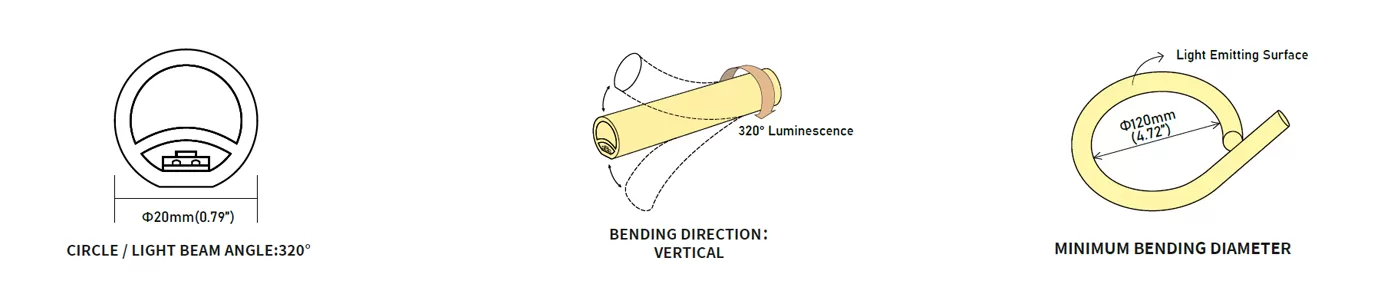

Structural Drawing & Bending Direction

Color	Warm White	Cool White	Red	Green	Blue	Yellow	Orange	Light Pink	Pink（Violet）	Purple
CCT / Wave:	2737K/584.7nm	9145K/471.5nm	1007K/623.3nm	8120K/526.3nm	465.3nm	1901K/588.8nm	1082K/604.9nm	1511K/626.0nm	568nm	450.0nm
LED Quantity:	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m
Unit Cut: 12V	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm
Unit Cut: 24V	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm
Watts/m: 24V	8.34W	8.37 W	7.77 W	8.55 W	8.76 W	8.36 W	8.35 W	8.34 W	8.03 W	8.16 W
Lumen/m: 24V	322.02 lm	305.18 lm	134.81 lm	334.04 lm	46.30 lm	366.57 lm	226.69 lm	294.00 lm	92.24 lm	58.71 lm
Max Loading: 12V/24V	5m	5m	5m	5m	5m	5m	5m	5m	5m	5m

PWM RGB

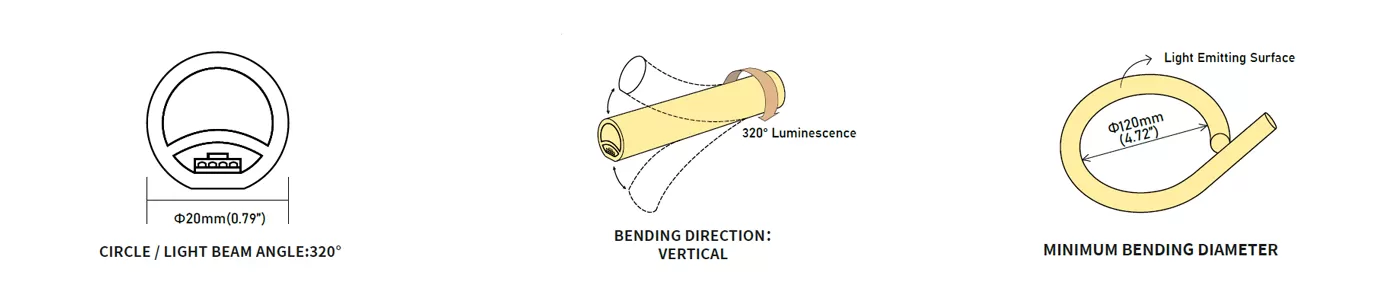

Structural Drawing & Bending Direction

SKU:WJ-SNF-D20a-RGB-12V/24V
Color Temp	Red: 623.5nm	White: 6500K (Color mixing)
	Green: 524.9nm
	Blue: 469.9nm
Watts/m(24V Flat	Red: 5.20 W	White: 17.24 W (Color mixing)
	Green: 5.99 W
	Blue: 6.44 W
Lumen/m(24V Flat)	Red: 88.57 lm	White: 264.03 lm (Color mixing)
	Green: 167.661m
	Blue: 31.73 lm
Unit Cut(24V)	5.56cm
Max Loading(24V)	5m
LED Quantity(m)	108 LEDs

Pixel RGB

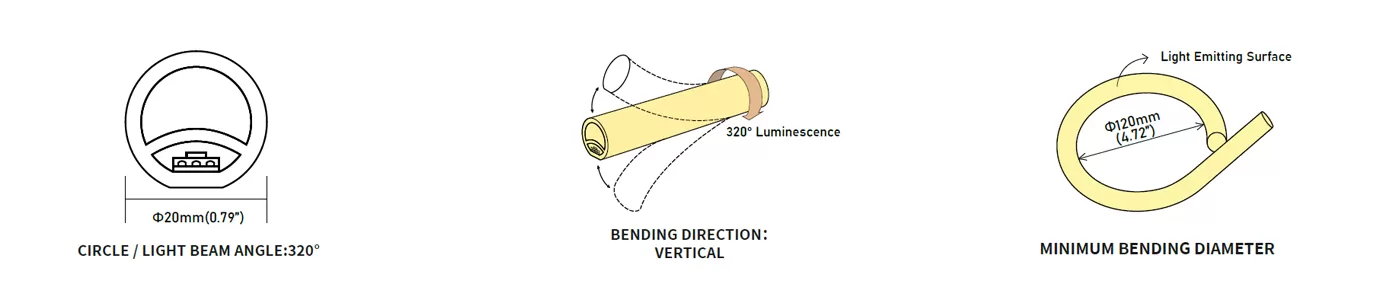

Structural Drawing & Bending Direction

SKU:WJ-SNF-D20a-D-RGB-12V/24V
Color Temp	Red: 625.9nm	White: 6500K (Color mixing)
	Green: 525.8nm
	Blue: 470.1nm
Watts/m(24V Flat	Red: 7.44 W	White: 19.20 W (Color mixing)
	Green: 7.55 W
	Blue: 7.53 W
Lumen/m(24V Flat)	Red: 88.21 lm	White: 325.13 lm (Color mixing)
	Green: 198.061m
	Blue: 34.81 lm
Unit Cut(24V)	12.5cm
Max Loading(24V)	5m
LED Quantity(m)	112 LEDs + 16ICs IC code: SM16703P SMD5050, IC: SM16703P, Epistar

PDF Download File

D20 SPI RGB

Download

D20 Mono

Download

D20 PWM RGB

Download

Video

Application

The LED Flexible Neon Light Strip with a circular diameter of 20mm presents a distinctive scene in outdoor architectural applications. Its unique design is suitable for outlining building contours, landscape lighting, and decoration. With its circular design, it can create a soft and layered lighting effect, making buildings more enchanting at night. The robust waterproof performance ensures reliability in various weather conditions.
