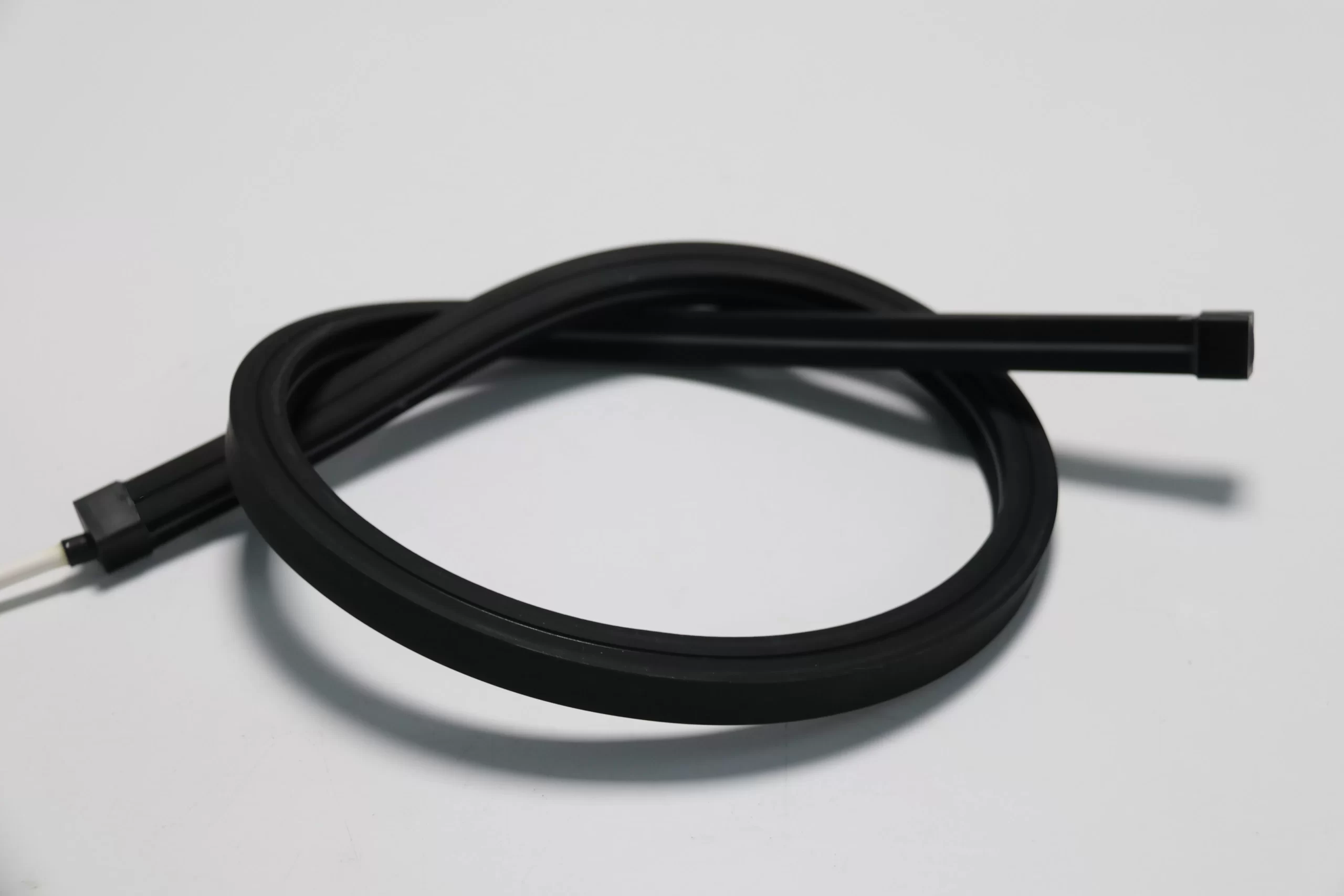

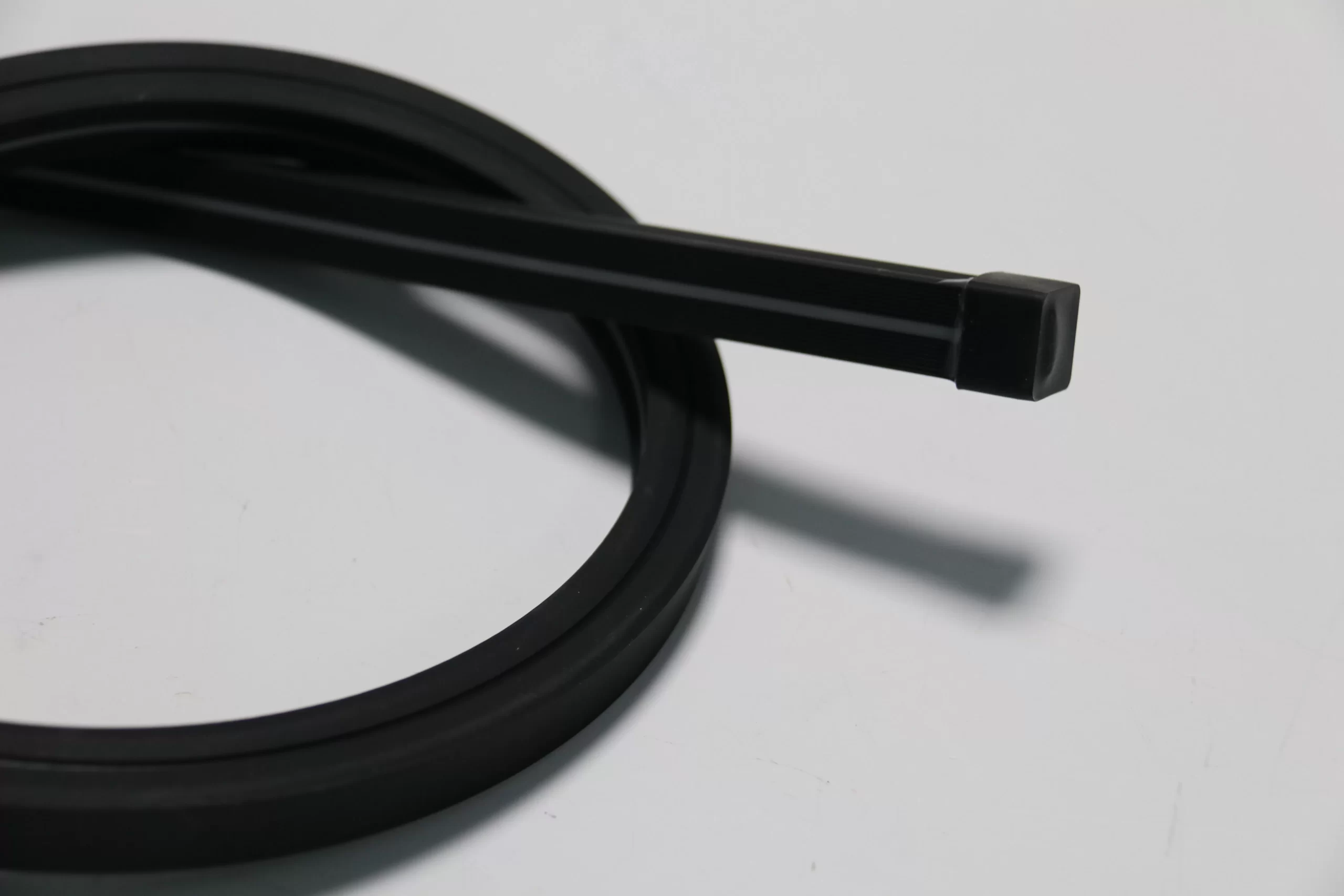

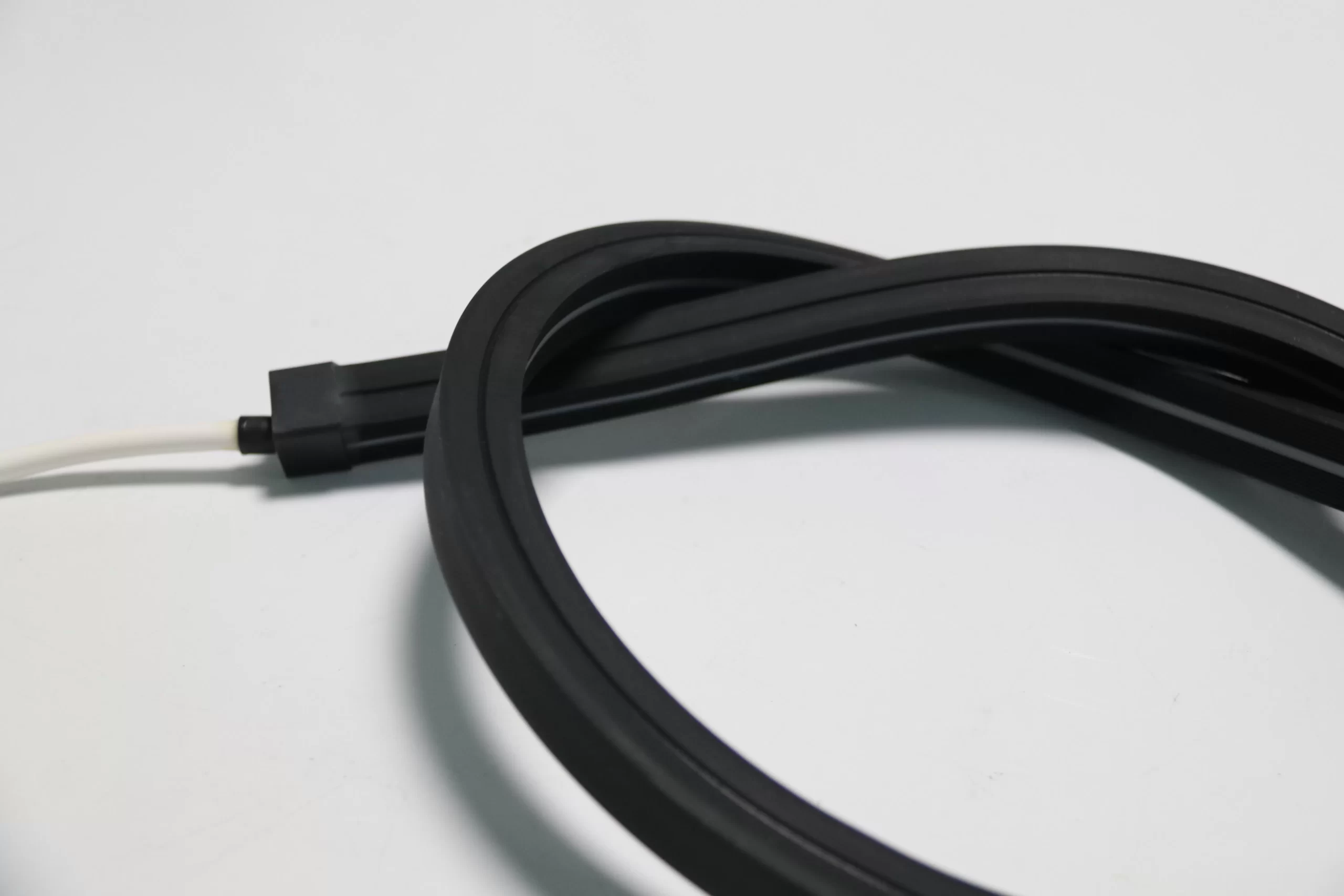

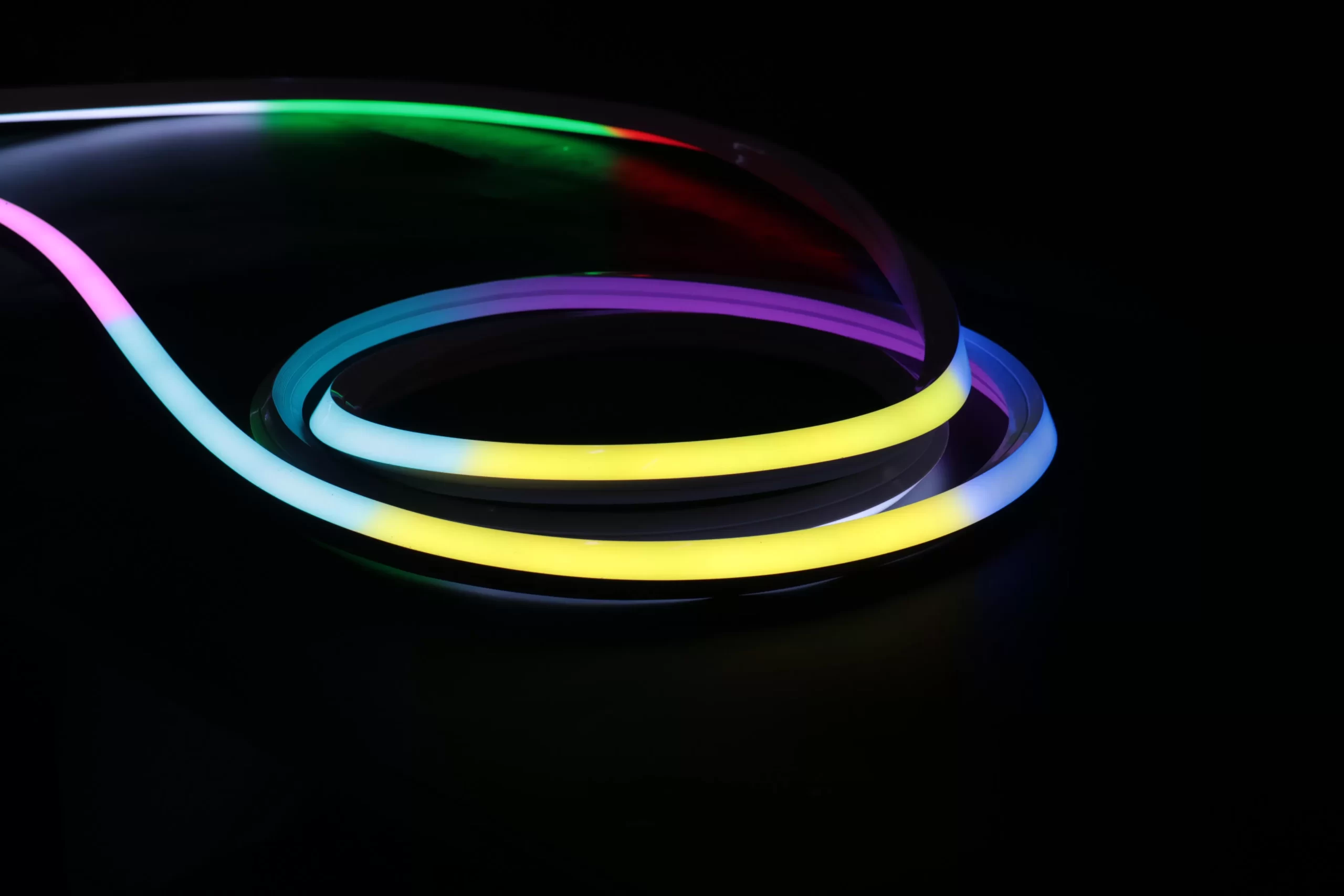

JACKET SPECIAL BLACK JACKET 16x16mm LED NEON FLEX

SPECIAL BLACK JACKET 16x16mm

SKU Code:WJ-SNF-1616

Size:16x16mm Flat

Bend Direction:Vertical Only

Min Bend:120mm

Material:Silicone

Color:Mono/ RGB/ RGBW/ Dynamic Pixel RGB/ Dynamic Pixel RGBW

Voltage:12V/ 24V

LED Type:SMD2835, Epistar

CRI:90

IP Rating:IP68/ IP65

IK Rating:IK08

Product Details

Mono

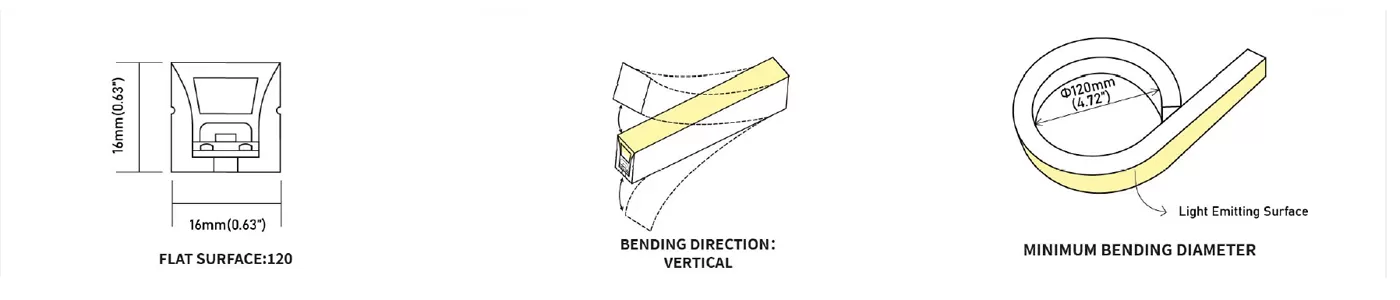

Structural Drawing & Bending Direction

Color	Warm White	Cool White	Red	Green	Blue	Yellow	Orange	Light Pink	Pink（Violet）	Purple
CCT / Wave:	2914K/584.5nm	10479K/472.3nm	1007K/622.8nm	8175K/526.0nm	464.6nm	1939K/588.3nm	1093K/604.6nm	1533K/636.4nm	568nm	452.2nm
LED Quantity:	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m	120 LEDs/m
Unit Cut: 12V	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm
Unit Cut: 24V	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm
Watts/m: 24V	8.36 W	8.39 W	7.79 W	8.51 W	8.76 W	8.40 W	8.26 W	8.38 W	8.01 W	8.19 W
Lumen/m: 24V	515.16 lm	458.91 lm	223.04 lm	541.60 lm	71.32 lm	598.33 lm	322.09 lm	468.00 lm	142.84 lm	92.05 lm
Max Loading: 12V/24V	5m	5m	5m	5m	5m	5m	5m	5m	5m	5m

PWM RGB

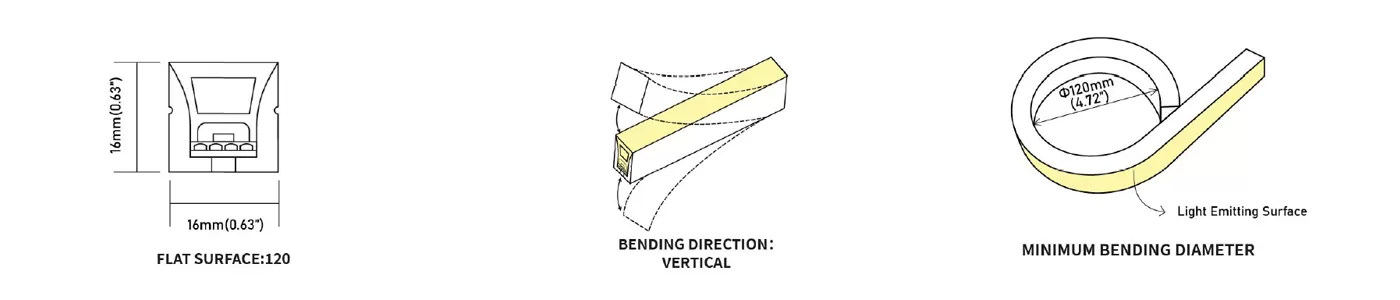

Structural Drawing & Bending Direction

SKU:WJ-SNF-1616-RGB-24V
Color Temp	Red: 624.1nm	White: 6500K (Color mixing)
	Green: 525.5nm
	Blue: 469.9nm
Watts/m(24V Flat	Red: 5.19 W	White: 17.32 W (Color mixing)
	Green: 6.01 W
	Blue: 6.45 W
Lumen/m(24V Flat)	Red: 102.27 lm	White: 289.43 lm (Color mixing)
	Green: 184.271m
	Blue: 32.53 lm
Unit Cut(24V)	5.56cm
Max Loading(24V)	5m
LED Quantity(m)	108 LEDs

Pixel RGB

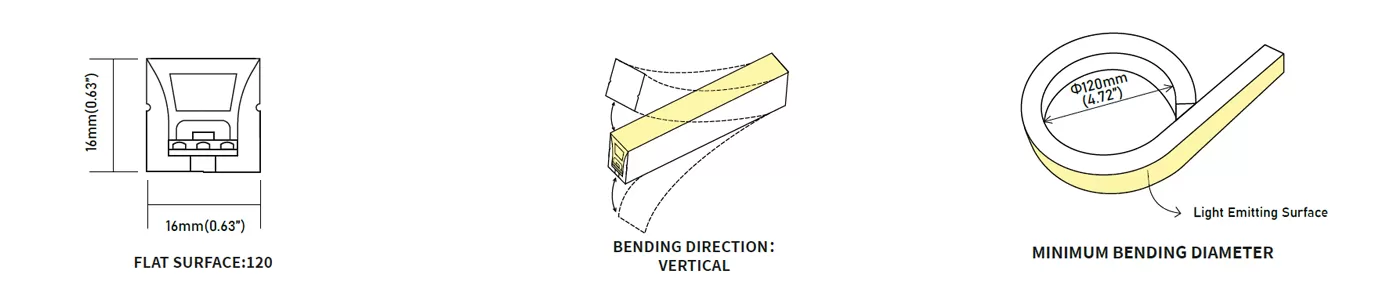

Structural Drawing & Bending Direction

SKU:WJ-SNF-1616-D-RGB-24V
Color Temp	Red: 624.7nm	White: 6500K (Color mixing)
	Green: 527.3nm
	Blue: 470.1nm
Watts/m(24V Flat	Red: 7.44 W	White: 19.31 W (Color mixing)
	Green: 7.54 W
	Blue: 7.54 W
Lumen/m(24V Flat)	Red: 109.78 lm	White: 337.08 lm (Color mixing)
	Green: 222.111m
	Blue: 35.88 lm
Unit Cut(24V)	12.5cm
Max Loading(24V)	5m
LED Quantity(m)	112 LEDs + 16ICs IC code: SM16703P (compatible with all lCs and controllers in the WS2811 1804,and 1809 series）

PWM RGBW

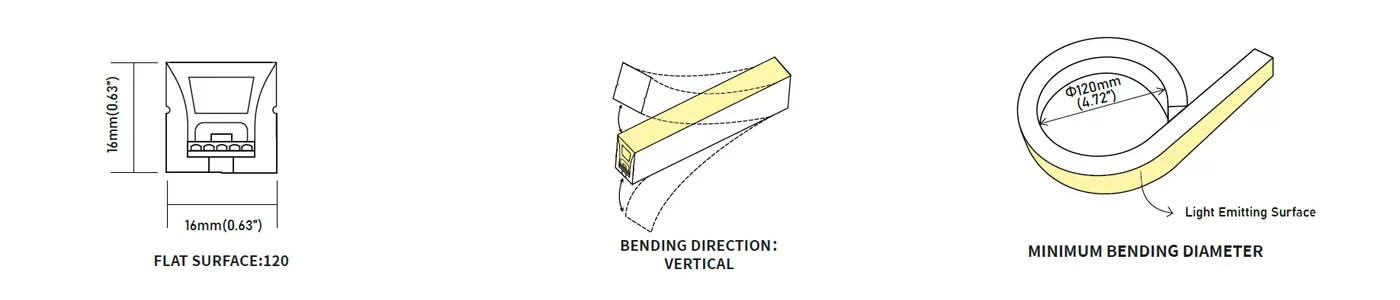

Structural Drawing & Bending Direction

SKU:WJ-SNF-1616-RGBW-24V
Color Temp	Red: 623.4nm	White:583.8nm (Color mixing) RGBW:491.8nm
	Green: 525.5nm
	Blue: 470.1nm
Watts/m(24V Flat	Red: 5.32 W	White:5.54 W (Color mixing) RGBW:18.72 W
	Green: 5.33 W
	Blue: 5.03 W
Lumen/m(24V Flat)	Red: 143.22 lm	White:385.27 lm (Color mixing) RGBW:694.70lm
	Green: 292.231m
	Blue: 108.72 lm
Unit Cut(24V)	6.25cm
Max Loading(24V)	5m
LED Quantity(m)	112 LEDs

Pixel RGBW

Structural Drawing & Bending Direction

SKU:WJ-SNF-1616-D-RGBW-12V
Color Temp	Red: 623.6nm	White:583.3nm (Color mixing) RGBW:582.4nm
	Green: 530.5nm
	Blue: 470.2nm
Watts/m(24V Flat	Red: 4.66 W	White:8.51 W (Color mixing) RGBW:19.07 W
	Green: 4.61 W
	Blue: 4.60 W
Lumen/m(24V Flat)	Red: 63.02 lm	White:457.71 lm (Color mixing) RGBW:725.39 lm
	Green: 179.191m
	Blue: 46.18 lm
Unit Cut(12V)	2.78cm
Max Loading(12V)	5m
LED Quantity(m)	108 LEDs + 36ICs

PDF Download File

1616 Flat Mono

Download

1616 PWM RGB

Download

1616 PWM RGBW

Download

1616 Flat SPI RGB

Download

1616 SPI RGBW

Download

Video

Application

The 16*16mm LED Flexible Neon Light Strip exhibits unique characteristics in indoor applications. Its compact size design makes it suitable for finer and more localized decorative needs, such as indoor walls and home lighting. High brightness and uniform lighting effects allow it to provide clear and soft illumination, creating a comfortable and pleasant indoor environment. The 16*16mm size ensures flexibility while showcasing a distinctive design in indoor spaces.
