PS-361Z4 – Led waterproof zoom parcan

PS-361Z4 - Par Light - Led waterproof zoom parcan

SKU Code:PS-361Z4

Size:L291*W240*H232.5 mm

Min Bend:61 PCs 3W Led(15R+14G+14B+18W)

Material:Die-cast alumninum + tempered glass

Color:RGBW

Voltage:AC100~240V, 50/60Hz

LED Type:54 PCS 3W Led (12R+ 12G+ 12B+ 18W)

IP Rating:IP65

Product Details

Technical Parameters

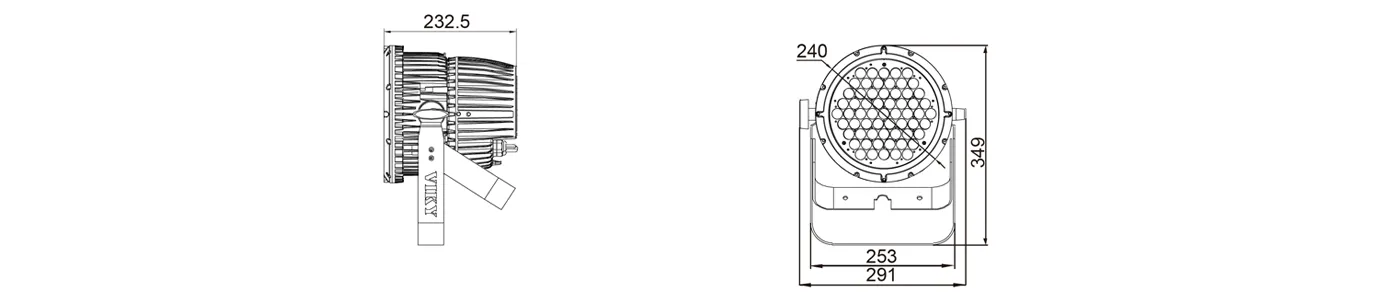

Lamp body size

Technical Parameters

Led	61 PCs 3W Led(15R+14G+14B+18W)
Life time	about 50000 hours
Color	RGBW
Luminous flux	3987lm
Illuminance	4838lux(5meter7°)/ 256lux(5meter50°)
Best projection distance	4 meter-50meter
Beam angle	7°~50°
Dimming	0-100％ lineal dimming
Strobe	0~25 Times per second
Rated voltage	AC 100~240V, 50/60HZ
Rated power	185w
Control mode	DMX512 mode, master-slave mode
channel mode	5/6/7/9 Channel
Environment temperature	-25℃~ 40℃
Protection rating	IP65
Cooling	Natural convectiont
Material	Die-cast aluminum + tempered glass
Dimension	L291W240H232.5 mm
Weight	8.2KG

PDF Download File

Video

Application

Packaging Customization
