FF-001 – Led television panel light

SKU Code:FF-001

Size:L633*W253*H322

Material:Aluminum + cold rolled sheet + acrylic

Color:3200K士150K or 5600K士150K white (optional)

Voltage:AC100~240V,50/60Hz

LED Type:1680 PCS LED

CRI:≥85

IP Rating:IP20

Product Details

Technical Parameters

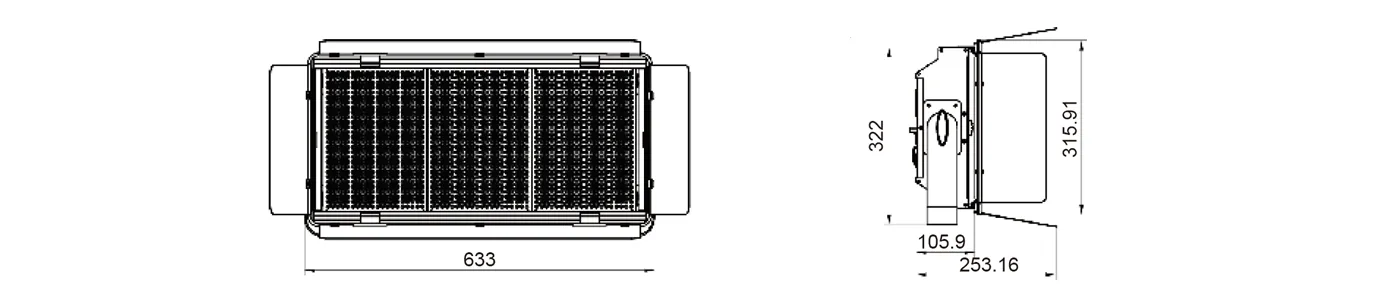

Lamp body size

Led	1680 PCS LED
Life time	about 50,000 hours
Color	3200K士150K or 5600K土150K white(optional)
CRI	≥85
Luminous flux	6694 lm (warm white)
Illuminance	234 lux (5m 60°warm white)
Best projection distance	3meters-10meters
Beam angle	60°
Dimming	0~100% linear dimming
Rated voltage	AC100~240V,50/60Hz
Rated power	160W
Control mode	Manual+DMX console
DMX channel	Channel 1
Environment temperature	-25°C~40°C
Cooling	Natural convection
Protection rating	IP20
Material	Aluminum + cold rolled sheet + acrylic
Dimension	L633W253H322
Weight	6.2KG
