Pattem/Dynamic Pattemn /Dynamic Projection Light

Pattem/Dynamic Pattemn /Dynamic Projection Light

SKU Code:PM-150ZA/200ZA/300ZA PM-150ZB/200ZB/300ZB PM-150ZC/200ZC/300ZC

Size:L276*W249*H336MM

Material:Aluminium

Voltage:AC100-240V，50/60Hz

IP Rating:IP66

Product Details

Technical Parameters

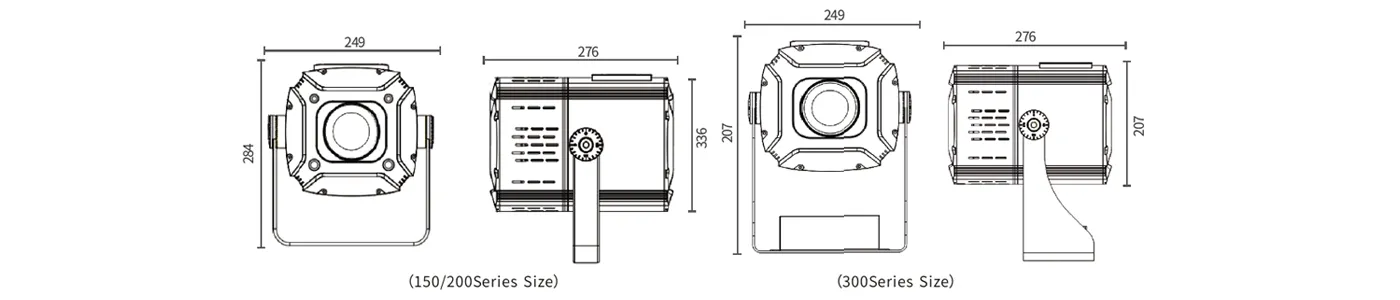

Lamp body size

Technical Parameters

SKU Code	PM-150ZA/200ZA/300ZA	PM-150ZB/200ZB/300ZB	PM-150ZC/200ZC/300ZC
Brand	OSRAM	OSRAM	OSRAM
Light power	150W/200W/300W	150W/200W/300W	150W/200W/300W
Color temperature	1000K士300K	1000K士300K	1000K士300K
Lifespan	>50000H	>50000H	>50000H
Prism System	4 Prisms (optional)	/	/
Pattem system	Rotating gobo 1×5	Rotating gobo 1×5	Effect wheellx1
Zoom angle	25°~45°	25°~45°	25°~45°
Dimming	0~100%linear dimming	0~100%linear dimming	0~100%linear dimming
Strobe	1~20HZ	1~20HZ	1~20HZ
Control mode	DMX512 master/slave	DMX512 master/slave	DMX512 master/slave
Channel mode	5CH/6CH	5CH/6CH	5CH/6CH
Rotation angle	X:360°/Y:180°(Hand)	X:360°/Y:180°(Hand)	X:360°/Y:180°(Hand)
Votation angle	AC100-240 50/60 HZ	AC100-240 50/60 HZ	AC100-240 50/60 HZ
Power	180W/250W/350W	180W/250W/350W	180W/250W/350W
Wire Rod	Waterproof wire 0.3m	Waterproof wire 0.3m	Waterproof wire 0.3m
Material	Aluminium	Aluminium	Aluminium
Protection	IP66	IP66	IP66
Dmensions	L276W249H336MM	L276W249H336MM	L276W249H336MM
Weight	8 KGS	8 KGS	8 KGS
Cooling System	Forced air cooling	Forced air cooling	Forced air cooling
OperationTemperature	-25°C~40°C	-25°C~40°C	-25°C~40°C

PDF Download File

Video

Application

Packaging Customization
