200W – Led ellipsoidal

200W - Led ellipsoidal

SKU Code:200W
Size:L570*W320*H409 mm
Material:Cold rolled sheet
Voltage:AC 110V/240V, 50/60HZ
LED Type:170W LED module
CRI:CRI 90/ 95/ 97 optional
IP Rating:IP23
Inquiry

Product Details

Technical Parameters

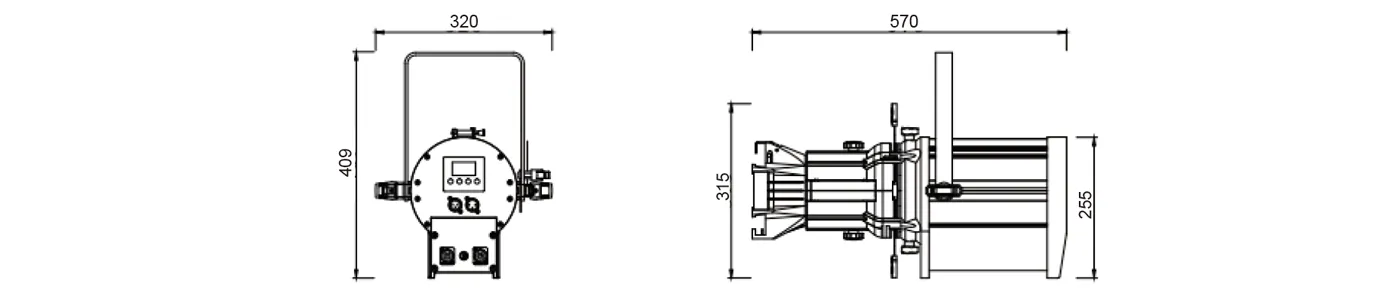

Lamp body size
Technical Parameters
Led 170W LED module
Life time about 50000 hours
Color temperature 3200K or 5600K optional
CRI CRI 90/ 95/ 97 optional
Beam angle 14°/19°/26°/36°/50°optional
Dimming 0-100％ lineal dimming
Strobe NO
Rated voltage AC 110V/240V, 50/60HZ
Rated power 200w
Control mode DMX512 signal input
DMX channel 1CH/2CH/3CH
Environment temperature -25°C-40°C
Cooling Air cooling, Temperature rise does not exceed 20 ℃, intelligent automatic temperature adjustment system.
Protection rating IP23
Material Cold rolled sheet
Dimension L570*W320*H409 mm
Weight 9.5KG
