100*25mm Outdoor Decoration Super Big Size LED Flex Pixel DMX Silicone Color-changing Neon Rope Light

100x25mm

SKU Code:WJ-SNF-10025

Size:100x25mm Flat

Bend Direction:Vertical Only

Min Bend:120mm

Material:Silicone

Color:Mono/RGB/Pixel

Voltage:12V, 24V

CRI:90

IP Rating:IP65

IK Rating:IK08

Product Details

Mono

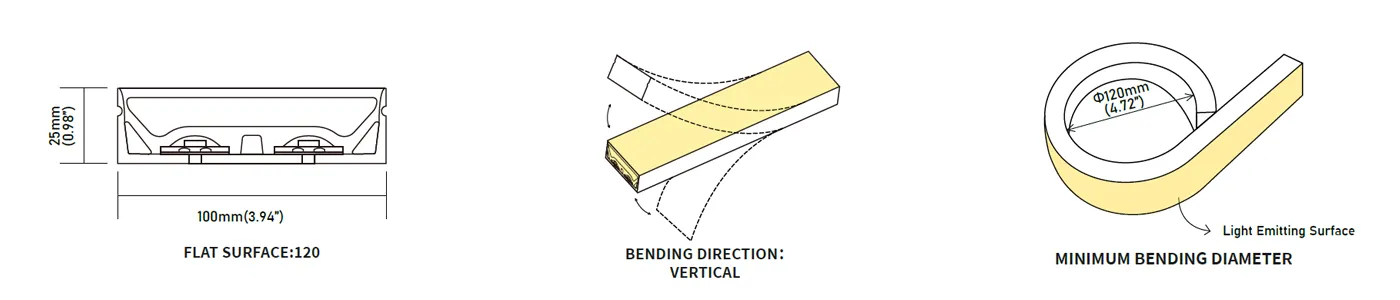

Structural Drawing & Bending Direction

Color	Warm White	Cool White	Red	Green	Blue	Yellow	Orange	Light Pink	Pink（Violet）	Purple
CCT / Wave:	2915K/584.9nm	10808K/472.5nm	1007K/623.5nm	8051K/526.5nm	465.3nm	1912K/588.5nm	1094K/604.6nm	1566K/634.4nm	568nm	452.7nm
LED Quantity:	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m	2×120 LEDs/m
Unit Cut: 12V	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm	2.5cm
Unit Cut: 24V	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm	5cm
Watts/m: 24V	16.45W	16.42 W	15.46 W	16.87 W	17.17 W	16.47 W	16.44 W	16.48 W	15.81 W	16.07 W
Lumen/m: 24V	869.68 lm	801.73 lm	355.48 lm	918.82lm	127.14 lm	968.06 lm	601.74 lm	785.83 lm	240.30 lm	156.75lm
Max Loading: 12V/24V	5m	5m	5m	5m	5m	5m	5m	5m	5m	5m

PWM RGB

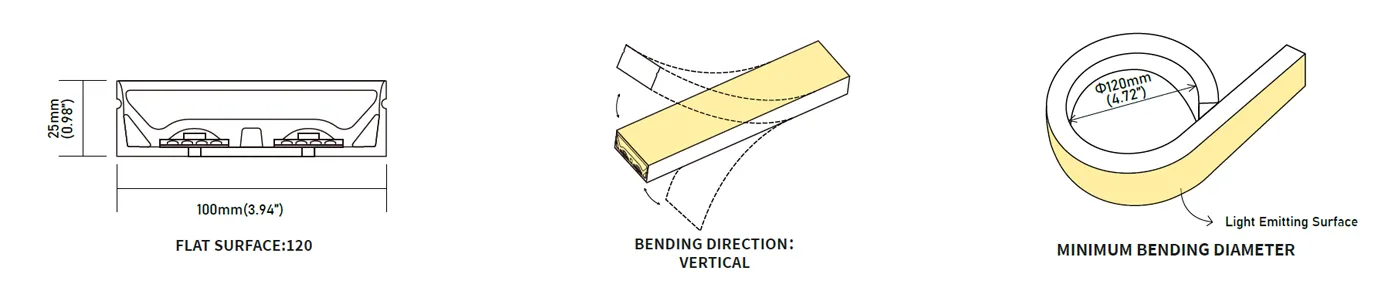

Structural Drawing & Bending Direction

SKU:WJ-SNF-10025-RGB-24V
Color Temp	Red: 624.5nm	White: 6500K (Color mixing)
	Green: 524.7nm
	Blue: 470.0nm
Watts/m(24V Flat	Red: 7.06 W	White: 23.51 W (Color mixing)
	Green: 8.29 W
	Blue: 8.61 W
Lumen/m(24V Flat)	Red: 143.03 lm	White: 466.71 lm (Color mixing)
	Green: 305.64m
	Blue: 57.14 lm
Unit Cut(24V)	8.33cm
Max Loading(24V)	5m
LED Quantity(m)	2×72 LEDs

Pixel RGB

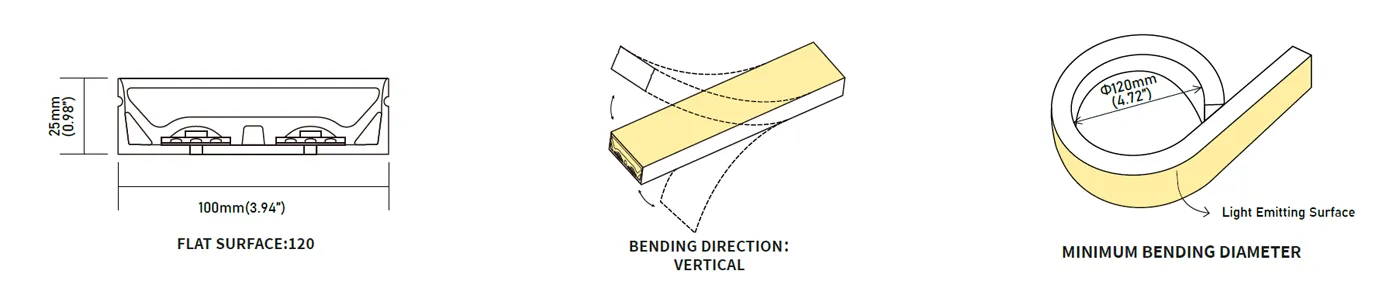

Structural Drawing & Bending Direction

SKU:WJ-SNF-10025-D-RGB-24V
Color Temp	Red: 625.7nm	White: 6500K (Color mixing)
	Green: 524.9nm
	Blue: 469.8nm
Watts/m(24V Flat	Red: 9.12 W	White: 22.55 W (Color mixing)
	Green: 9.48 W
	Blue: 9.88 W
Lumen/m(24V Flat)	Red: 129.38 lm	White: 414.15 lm (Color mixing)
	Green: 247.81m
	Blue: 50.55 lm
Unit Cut(24V)	10cm
Max Loading(24V)	5m
LED Quantity(m)	2×60 LEDs + 10ICs IC code: SM16703P (compatible with all lCs and controllers in the WS2811 1804,and 1809 series）

PDF Download File

10025 MONO

Download

10025 RGB

Download

10025 Pixel RGB

Download

Video

Application

The 100*25mm LED Flexible Neon Light Strip has significant advantages in outdoor architectural applications. Its larger size design allows for a more extensive and vibrant lighting effect, suitable for scenarios such as large-scale building contours and landscape lighting. The robust waterproof performance ensures reliability and durability in adverse weather conditions. The 40*25mm size provides greater creative space for creating eye-catching outdoor scenes, making buildings more attractive at night.
