Unlock Stunning Lighting Effects Complete Selection Guide for Programmable Pixel Neon Light Strips
Want to create cinematic cyberpunk spaces, atmospheric lighting for art galleries, or premium lighting schemes for high-end commercial complexes. Conventional RGB light strips cannot deliver rich, dynamic lighting visuals. Wilgex Flexible DMX512 Neon LED Strips are professional programmable lighting solutions developed for designers, engineering contractors and lighting enthusiasts. This guide comprehensively explains core principles, applicable scenarios, key specifications and supporting systems for your reference.
- What is Flexible DMX512 Neon LED Strip Core Advantages
Concept Overview
Flexible Neon LED Strip Bendable silicone LED neon strip engineered to replace traditional glass neon tubes. It features impact resistance, flexible shaping, cuttable design and uniform, soft light output, forming a continuous luminous light ribbon.
DMX512 A universal professional lighting communication protocol widely adopted in stage lighting and architectural illumination. It enables controllers to manage up to 512 independent signal channels for precise, segmented lighting control.
The combination delivers pixel-addressable programmable DMX512 neon strips with these core strengths
- Independent Pixel Precision Control
Unlike conventional strips that change colour uniformly, DMX512 solutions support individual addressable control of each LED pixel. It enables sophisticated lighting effects including running water, chasing light, colour gradient, light trail, graphic animation and dynamic shifting.
- Professional-Grade Light Performance
Smooth colour transition with zero flicker, stable and even luminous output, meeting strict visual standards for commercial venues, art installations and stage applications.
- High Anti-Interference and Reliable Signal Transmission
Outstanding resistance to signal interference and support for long-distance signal transmission, ideal for large-scale lighting projects and multi-zone linked lighting systems.
- Application Scenarios Is DMX512 Neon Strip Suitable for You
Recommended Applications
Commercial Lighting Designers Bars, restaurants, exhibition halls, hotels, KTV venues, building facades and landscape gardens to create distinctive visual highlights
Stage and Event Contractors Live performances and pop-up installations with lighting synchronised to music rhythm
High-End Residential Owners Custom artistic interior lighting and tech-style living spaces with exclusive dynamic light effects
Lighting DIY Enthusiasts Independent programming creation without limitations of preset built-in light modes
Scenarios Suitable for Ordinary RGB Strips
Only basic ambient lighting required, demand limited to static single colour switching, preference for low-cost plug-and-play solutions without complex dynamic effects.
- Five Core Selection Parameters to Match Your Project
3.1 Driver IC Chip Determines Control Performance Ceiling
As the core of pixel light strips, IC chips directly influence lighting control effects and stability
TM512AC Versatile and cost-effective, supports independent pixel addressing for each LED. Ideal for most commercial and residential dynamic lighting projects
UCS512C Equipped with an independent white light channel for superior colour reproduction and purer white light output, suitable for scenarios requiring strict colour temperature and rendering performance
UCS512G Dual-wire signal transmission architecture with higher refresh rate. Eliminates motion blur under high-speed dynamic effects such as fast chasing light. Preferred for intensive dynamic lighting and art installations with higher budget.
Selection Tip Prioritise TM512AC for standard residential and medium-small commercial projects, choose UCS512C for demanding white light rendering, select UCS512G for high-speed dynamic lighting and large-scale installation projects.
3.2 Pixel Density Defines Visual Smoothness
Pixel density refers to LED quantity per metre, determining the fluidity of animation and gradient effects
30 LEDs/m Visible pixel segmentation, suitable for architectural contour outlining with cost advantages
60 LEDs/m Balanced performance and cost, the universal standard for most indoor and outdoor dynamic lighting applications
96 LEDs/m and above Densely arranged pixels deliver seamless light transition, perfect for graphic playback and ultra-smooth gradient effects.
Selection Tip 60 LEDs/m is the preferred universal specification. Opt for 96 LEDs/m or higher for complex animation display and continuous light rendering.
3.3 Ingress Protection Rating Match Operating Environment
IP20/IP33 Non-waterproof Only for dry indoor environments such as ceiling recesses and cabinet interiors
IP65 Water-resistant Suitable for humid areas including kitchens, bathrooms and covered eaves. Not for continuous rain exposure
IP67/IP68 Fully Waterproof Resists persistent rainfall and temporary submersion, applicable for exterior walls, courtyards and waterside open-air installations.
Selection Tip Choose a higher protection rating rather than lower. All outdoor projects must adopt IP67 or above waterproof products.
3.4 Physical Specification and Luminance
Strip Width Mainstream sizes include 10mm 12mm 14mm. Match dimensions according to pre-installed aluminium channels and mounting space
Luminance Determined by LED specification and IC scheme. For high-brightness requirements, request luminous flux data lm/m from suppliers.
3.5 Operating Voltage Critical for Long-Line System Stability
DC5V Safe low voltage, yet prone to voltage drop. Recommended single segment length ≤5m, additional power injection required for long wiring
DC12V DC24V Lower voltage loss, supports longer continuous wiring and delivers enhanced system stability.
Selection Tip DC5V works for projects within 5 metres. For projects over 5 metres medium and large scale, DC12V or DC24V is strongly recommended.
- Complete Supporting Components for DMX512 Lighting System
A standalone light strip cannot function independently. The full system requires the following accessories

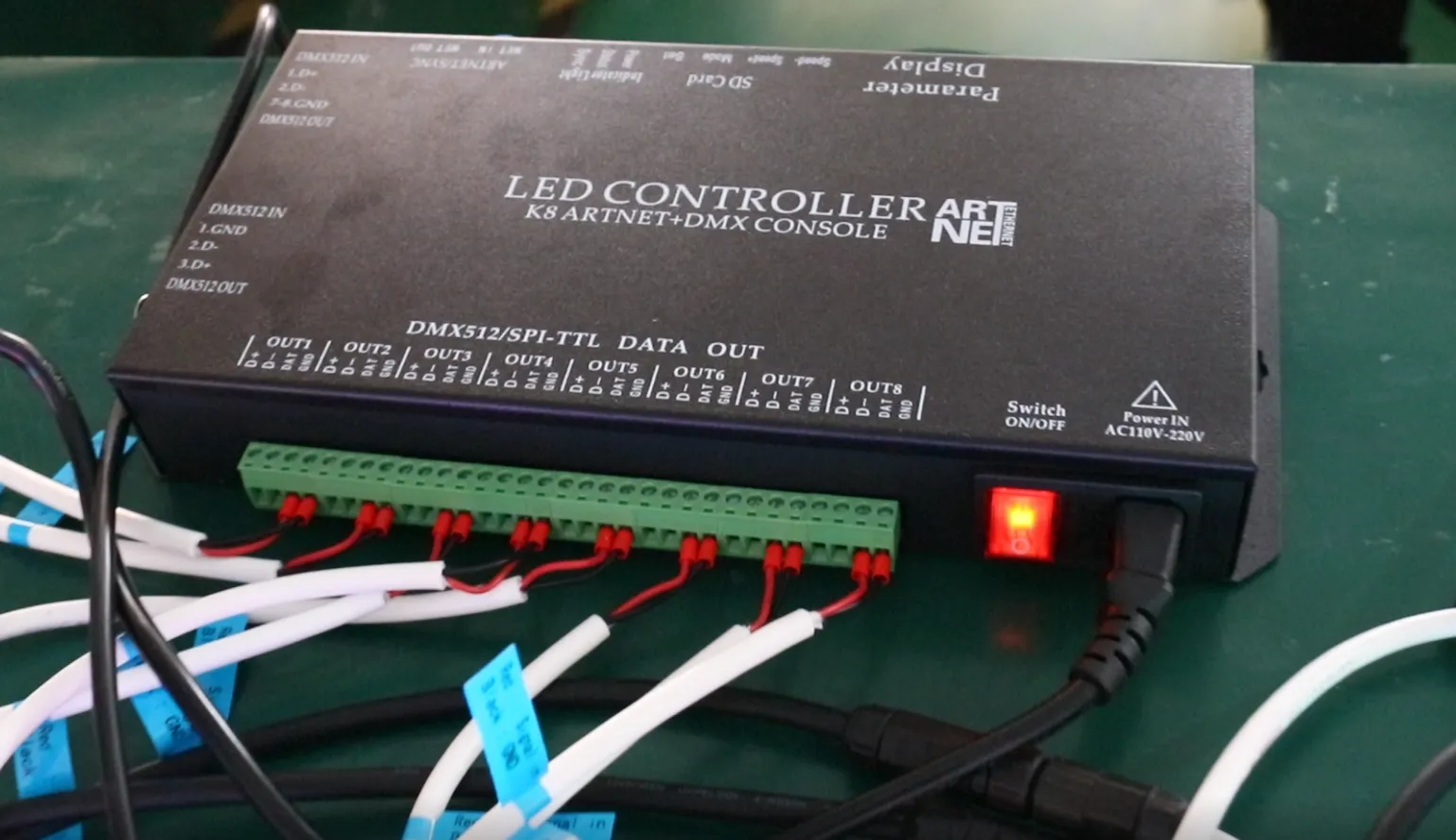

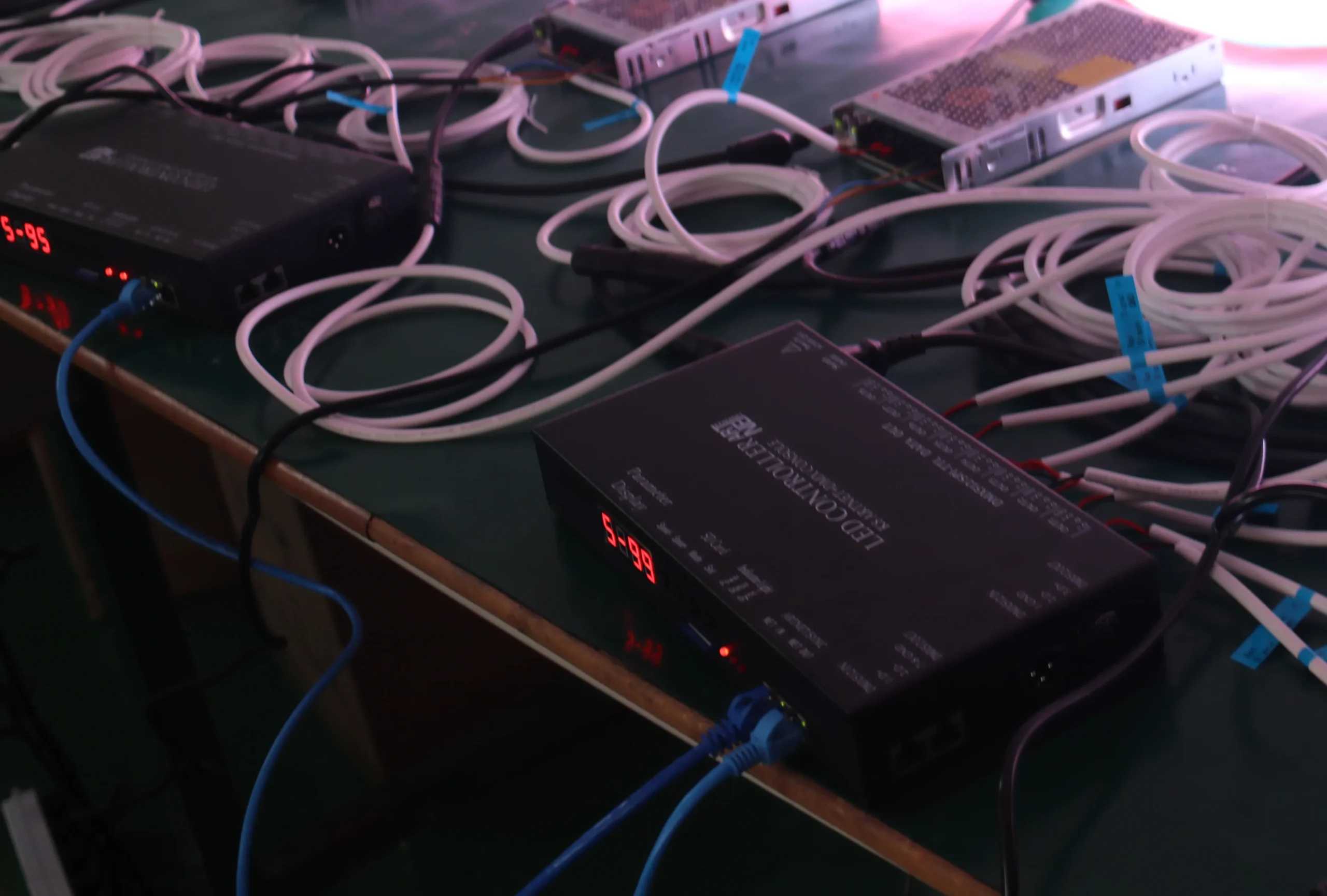

- DMX Controller Core control unit. Supports offline operation via SD card and online programming via PC software to edit and store lighting animations
- Power Supply Select power capacity based on total strip power W per metre × total length. Reserve 20 extra power capacity as redundancy
- Signal Amplifier Compensate DMX signal to prevent attenuation for long-distance wiring or multi-segment strip connection
- Cables and Connectors High-quality signal cables minimise signal loss. Use waterproof connectors for outdoor projects.
- Standardised Project Procurement Workflow
- Clarify Requirements Confirm installation location, target lighting effects and project budget
- Confirm Specifications Finalise IC chip, pixel density, protection rating and operating voltage
- Calculate Consumption Measure total wiring length and compute required strip and power supply quantity
- Sample Testing Request samples from suppliers to verify light performance and waterproof properties
- Select Auxiliary Equipment Procure compatible controllers, power supplies and cables to build the complete system.
Conclusion
Flexible DMX512 Neon LED Strip serves as the core component to achieve custom professional dynamic lighting. Compared with conventional ambient light strips, it offers extraordinary creative freedom to deliver striking artistic lighting visuals. Wilgex supplies complete pixel neon strip solutions, matched control systems and professional technical support. Whether for residential renovation, commercial store lighting or large-scale art lighting projects, customised solutions are available to satisfy your demands.
Looking for a reliable DMX512 Neon LED Strip manufacturer? Wilgex provides customized pixel neon lighting solutions for architectural, commercial and creative lighting projects.
